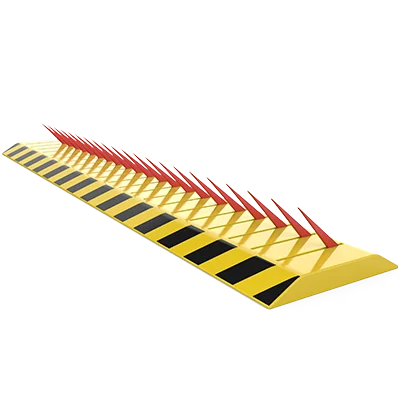

TK-600 Heavy Duty Tyre Killer
The TK-600 is a heavy-duty electromechanical tyre killer designed to help control unauthorised vehicle entry at restricted access points. Its raised steel spikes form a physical vehicle barrier when deployed.
Manufactured using A3 carbon steel, the TK-600 features black-and-yellow colouring, reflective strips and remote or drive-by-wire control options. It is designed for demanding vehicle access-control applications.
TK-600 Key Features
Heavy-duty vehicle access control designed for locations where preventing unauthorised vehicle movement is important.
Heavy-Duty Steel Construction
Constructed from A3 carbon steel to provide a robust physical barrier for vehicle access-control applications.
150 mm Spike Height
Features a listed spike height of 150 mm and spike thickness of 10 mm, forming a physical obstruction for unauthorised vehicles when raised.
Vehicle Access Control
Suitable for controlled vehicle entry and exit points where site security requires a physical vehicle-blocking mechanism.
Electromechanical Drive
Uses an electromechanical drive mechanism to operate the tyre-killer barrier as part of the site's vehicle-access security system.
IP67 Protection Rating
The listed IP67 protection rating describes the enclosure's protection classification. Installation conditions should still be checked before deployment.
Remote and Wired Control
Supports short-range wireless remote control and drive-by-wire control options for different operating arrangements.
TK-600 Technical Specifications
Review the listed dimensions, construction details, operating conditions and control options.
| Product Model | TK-600 |
|---|---|
| Product Type | Heavy Duty Tyre Killer |
| Material | A3 Steel (Carbon Steel) |
| Listed Length | 6 metres |
| Width | 520 mm |
| Height | 70–90 mm |
| Maximum Loading Weight | 100 tonnes (as listed on the current manufacturer product page) |
| Spike Height | 150 mm |
| Spike Thickness | 10 mm |
| Material Thickness | 12 mm |
| Drive Mode | Electromechanical |
| Protection Rating | IP67 |
| Surface Treatment | Paint with reflective strip |
| Colour | Black and Yellow |
| Working Environment | -40°C to +70°C |
| Control Mode | Short-range wireless remote control / Drive-by-wire |
| Listed Control Distance | ≤100 metres |
| Remote Control Distance | Within 50 metres |
| Optional Lengths | 3 m, 4 m and 5 m options are listed by the manufacturer |
| Published Overall Dimension | 4000 × 550 × 80 mm |
Specification note: The manufacturer's product page lists a 6-metre length as well as an overall dimension of 4000 × 550 × 80 mm. These length figures do not match, so confirm the required configuration and final dimensions with CDN TECHNOLOGIES before ordering.
Frequently Asked Questions
Common questions about the TK-600 heavy-duty tyre killer.
1. What is the TK-600 tyre killer?
The TK-600 is an electromechanical tyre-killer barrier designed to help restrict unauthorised vehicle entry at controlled access points.
2. What material is used in the TK-600?
The manufacturer lists A3 steel, also described as carbon steel, for the TK-600 construction. Its listed material thickness is 12 mm.
3. What is the spike height of the TK-600?
The listed spike height is 150 mm, with a spike thickness of 10 mm. Actual application suitability depends on the vehicle-control design and site requirements.
4. How is the TK-600 operated?
The listed control options are short-range wireless remote control and drive-by-wire. Confirm the required control setup when discussing your installation.
5. What is the protection rating of the TK-600?
The manufacturer lists an IP67 protection rating. The installation should still follow the manufacturer's guidance for the relevant site and environment.
6. What is the working temperature range?
The listed working environment range is -40°C to +70°C. Ask for confirmation if the intended installation has unusual environmental or operating conditions.
7. What lengths are available for the TK-600?
The manufacturer lists a 6-metre length and optional 3-metre, 4-metre and 5-metre versions. Its page also gives a separate overall dimension of 4000 × 550 × 80 mm, so the final configuration and dimensions should be confirmed before ordering.
8. How can I request a quote for the TK-600?
Contact CDN TECHNOLOGIES through the Enquire Now button for current pricing, availability and configuration details. You can also use WhatsApp Enquiry to send a message about the TK-600 tyre killer.
Get in Touch for Product Enquiry
Have questions about the TK-600 Heavy Duty Tyre Killer? Contact CDN Technologies for pricing, availability and help with your vehicle access-control requirements.
