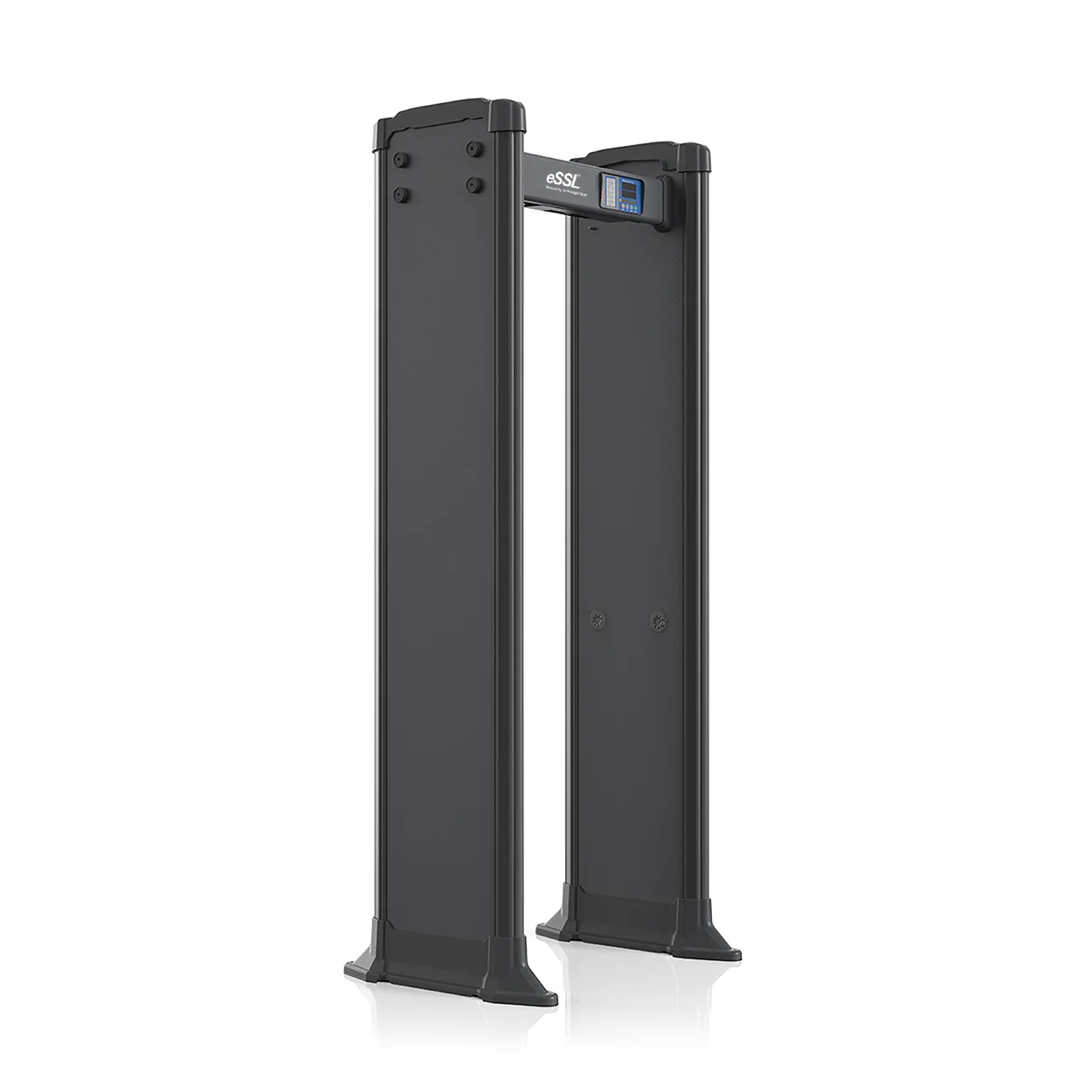

D518-63-IP65 Walk Through Metal Detector
The D518-63-IP65 is a 63-zone walk-through metal detector designed for security screening at entrances. It uses electromagnetic detection technology and offers adjustable sensitivity, alarm settings and an IP65-rated enclosure for demanding screening environments.
Key Features of D518-63-IP65
63-Zone Detection
Multi-zone detection helps security staff identify the approximate area where metal is detected.
Adjustable Sensitivity
Sensitivity settings can be adjusted to suit different screening environments and security requirements.
Digital LED Display
Digital display supports clear viewing of screening information and pass or alarm counts.
IP65 Protection
The IP65-rated enclosure provides protection against dust and water jets under specified conditions.
Adjustable Alarm Settings
Adjustable volume and alarm duration help configure alerts for the screening environment.
Entrance Security
Designed for pedestrian screening at entrances and security checkpoints in controlled-access facilities.
Technical Specifications of D518-63-IP65
| Specification | Details |
|---|---|
| Model | D518-63-IP65 |
| Product Type | Walk Through Metal Detector |
| Detection Zones | 63 zones |
| Working Principle | Electromagnetic |
| IP Rating | IP65 |
| Material | ABS (Acrylonitrile Butadiene Styrene) |
| Frequency Setting | 0–99 |
| Net Weight | 48 kg |
| Gross Weight | 56 kg |
| External Dimensions | 2249 × 932 × 715 mm |
| Passage Dimensions | 1987 × 720 × 715 mm |
| Detection Reference | Ferrous metals under 75 g |
| Distance Between Two DFMD Units | 850 mm |
| Operating Humidity | Up to 99%, non-condensing |
| Operating Temperature | -20°C to 65°C |
| Power Input | AC 100–240 V, 50–60 Hz |
| Product Colour | Matte Black |
| Sensitivity Adjustment | 0–400 |
| Volume Adjustment | 0–50 |
| Alarm Duration | 0–3 seconds |
| Alarm Tones | 15 different tones |
| Metal Detection Reference | 2 mm thickness × 50 mm length × 20 mm width |
Frequently Asked Questions
What is the D518-63-IP65 metal detector?
The D518-63-IP65 is a walk-through metal detector designed to screen people at entrances and security checkpoints.
How many detection zones does the D518-63-IP65 have?
The D518-63-IP65 is a 63-zone walk-through metal detector that helps indicate the approximate location of detected metal.
What does the IP65 rating mean?
IP65 indicates protection against dust ingress and water jets under specified test conditions. Confirm installation suitability for your environment before purchase.
Can the sensitivity be adjusted?
Yes. The product specifications list adjustable sensitivity settings to help configure detection for the screening environment.
Can I adjust the alarm volume?
The specifications list adjustable alarm volume and alarm duration settings. Contact CDN TECHNOLOGIES for configuration guidance.
How can I enquire about the D518-63-IP65?
Contact CDN TECHNOLOGIES through the contact page or the WhatsApp button on this page for pricing, availability and product details.
