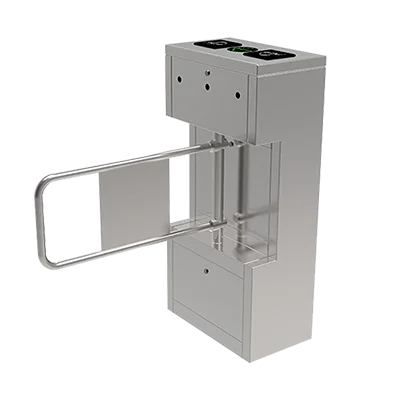

SB-TL-129 Heavy Duty Swing Barrier
The SB-TL-129 Heavy Duty Swing Barrier is designed to manage pedestrian movement through controlled entry and exit points. It supports card-based identification, infrared sensing and visual or audio alerts to help regulate access in busy facilities.
With a maximum passage width of 550 mm, a listed throughput rate of 30 persons per minute and IP54 protection, the SB-TL-129 offers practical access management for environments that require organized pedestrian flow.
SB-TL-129 Swing Barrier Features
Explore the access identification, pedestrian sensing and safety functions of the SB-TL-129.
Multiple Card Identification Options
Supports IC cards, ID cards, bar codes and magnetic cards as automatic identification methods.
Display and Alerts
The product lists a display for statistics and numbers, along with voice and strobe-light alerts.
Infrared Pedestrian Sensing
Infrared sensors help monitor pedestrian passage and support the barrier's anti-illegal-entry function.
Dual Anti-Clipping Protection
Photocell anti-clipping and mechanical anti-clipping functions are listed to support safer barrier operation.
Adjustable Closing Delay
The barrier can be configured to delay closing from 1 to 60 seconds after a valid card reading.
Flexible Passage Control
Supports single passage in a set direction or bi-directional single passage, with always-free or locked operating states.
SB-TL-129 Technical Specifications
Check the published dimensions, electrical requirements and operating specifications for this swing barrier.
| Product Model | SB-TL-129 |
|---|---|
| Product Type | Heavy Duty Swing Barrier |
| Maximum Passage Width | ≤ 550 mm |
| Throughput Rate | 30 persons per minute |
| Dimensions (excluding bars) | 800 × 480 × 980 mm |
| Weight (including bars) | 40 kg |
| Power Supply | 100–240V AC |
| Operational Voltage | 24V DC |
| Maximum Power Consumption | 30 W, as listed on the manufacturer's product page |
| Frequency | 50–60 Hz |
| Protection Level | IP54 |
| Working Temperature | -25°C to +70°C |
| Drive Type | DC electromagnetic drive, as listed on the manufacturer's product page |
| Identification Methods | IC cards, ID cards, bar codes and magnetic cards |
| Pedestrian Sensing | Infrared sensors |
| Anti-Clipping Functions | Photocell anti-clipping and mechanical anti-clipping |
| Closing Delay | Adjustable from 1 to 60 seconds after a valid card reading |
| Passage Direction | Single passage in the set direction or bi-directional single passage |
| Operating States | Always free or locked |
| Barrier Material | Plastic toughened glass, as listed by the manufacturer |
| Alert Functions | Voice and strobe-light alerts |
Frequently Asked Questions
Answers to common questions about the SB-TL-129 Heavy Duty Swing Barrier.
What is the SB-TL-129 Swing Barrier?
The SB-TL-129 is a heavy-duty swing barrier designed to regulate pedestrian movement through controlled entry and exit points using supported identification methods and sensing functions.
What is the maximum passage width of the SB-TL-129?
The manufacturer's product page lists a maximum passage width of 550 mm or less.
What is the throughput rate of this swing barrier?
The listed throughput rate is 30 persons per minute. Actual throughput depends on how the entry lane is configured and used.
Which cards does the SB-TL-129 support?
The product lists support for IC cards, ID cards, bar codes and magnetic cards as automatic identification options.
Does the SB-TL-129 have anti-clipping protection?
Yes. The listed features include both photocell anti-clipping and mechanical anti-clipping functions.
What are the power and operating voltage requirements?
The product page lists a 100–240V AC power supply and a 24V DC operational voltage. Confirm the latest electrical requirements before installation.
Can the barrier operate in both directions?
The manufacturer lists single passage in a set direction and bi-directional single passage. The operating mode should be configured for the intended access-control layout.
How can I enquire about the SB-TL-129?
Contact CDN Technologies through the website enquiry page or WhatsApp to ask about pricing, availability and installation requirements for the SB-TL-129 Heavy Duty Swing Barrier.
