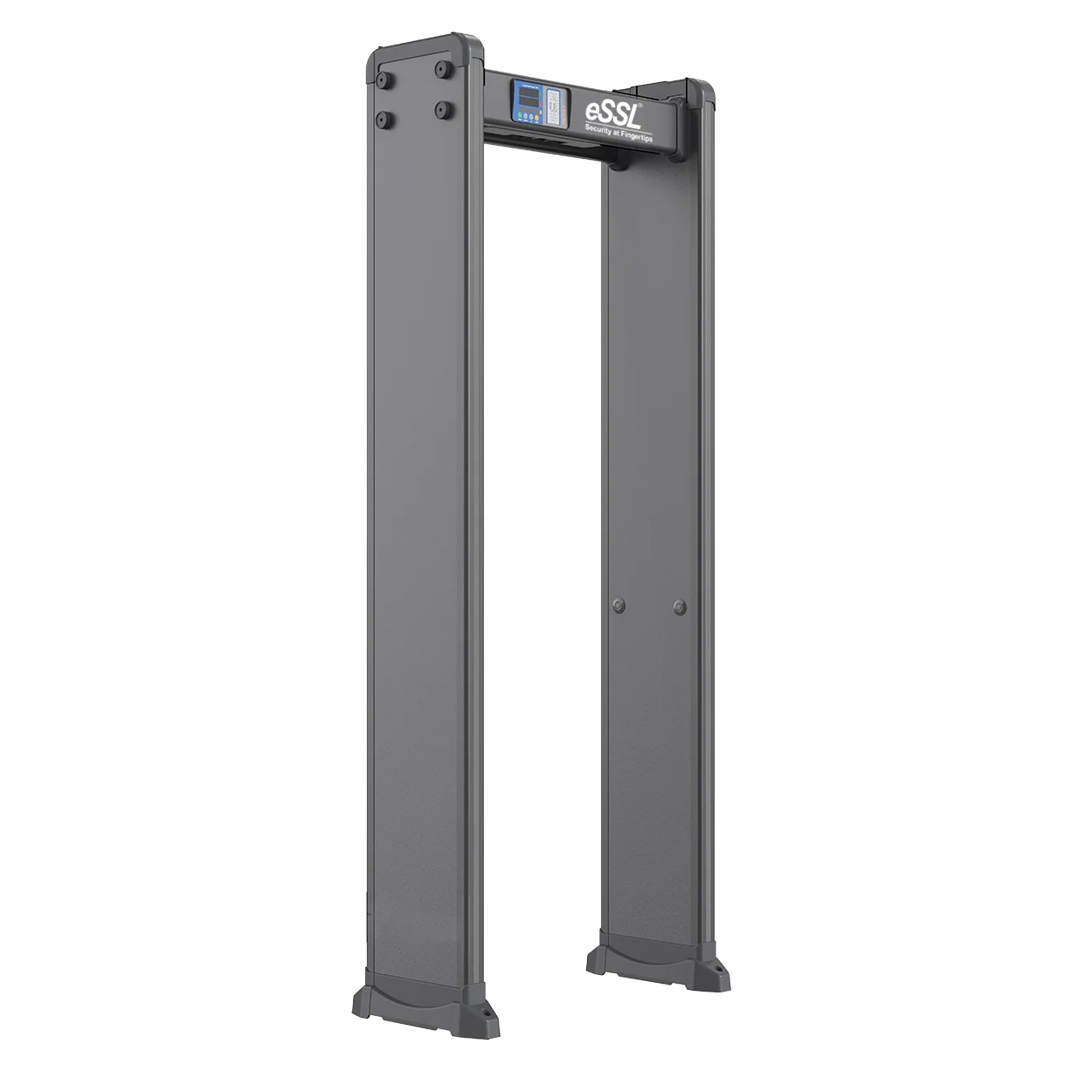

D330-33-IP65 Walk Through Metal Detector
The D330-33-IP65 is a 33-zone walk-through metal detector designed for security screening at entrances. It features multi-zone detection, adjustable sensitivity, a bright digital LED display and an IP65-rated enclosure for demanding environments.
Key Features of D330-33-IP65
33-Zone Detection
Supports multi-zone selection with 11, 22 or 33 zones to help identify the approximate location of detected metal.
Adjustable Sensitivity
Sensitivity settings can be adjusted to suit the screening environment and detection requirements.
Bright Digital LED Display
The five-digit, seven-segment display helps show screening and alarm-count information.
IP65 Protection
The IP65-rated enclosure provides protection against dust and water jets under specified conditions.
Alarm Monitoring
Audible alarm tones and visual zone indications assist security personnel during screening.
Entrance Security Integration
Optional integration with compatible turnstiles and flap or swing barriers through an access controller or IoT board.
Technical Specifications of D330-33-IP65
| Specification | Details |
|---|---|
| Model | D330-33-IP65 |
| Product Type | Walk Through Metal Detector |
| Detection Zones | 11 / 22 / 33 selectable zones |
| Working Principle | Electromagnetic |
| IP Rating | IP65 |
| Material | ABS (Acrylonitrile Butadiene Styrene) |
| Frequency Setting | 0–99 |
| Net Weight | 35 kg |
| Gross Weight | 42 kg |
| External Dimensions | 2191 × 875 × 446 mm |
| Passage Dimensions | 2007 × 720 × 446 mm |
| Detection Reference | Ferrous metals under 75 g |
| Distance Between Two DFMD Units | 850 mm |
| Operating Humidity | Up to 99%, non-condensing |
| Operating Temperature | -20°C to 65°C |
| Power Input | AC 100–240 V, 50–60 Hz |
| Product Colour | Matte Black |
| Sensitivity Adjustment | 0–400 |
| Volume Adjustment | 0–50 |
| Alarm Duration | 0–3 seconds |
| Alarm Tones | 15 different tones |
| Metal Detection Reference | 2 mm thickness × 50 mm length × 20 mm width |
| Display | 5-digit, 7-segment bright digital LED display |
| Counting | Infrared sensor for pass count and alarm count |
| Entrance Automation Integration | Optional integration with compatible turnstiles and flap or swing barriers |
Frequently Asked Questions
What is the D330-33-IP65 metal detector?
The D330-33-IP65 is a walk-through metal detector designed to screen people at entrances and security checkpoints.
How many detection zones does the D330-33-IP65 support?
The model supports selectable 11-zone, 22-zone and 33-zone configurations.
Is the D330-33-IP65 suitable for outdoor environments?
The unit has an IP65 protection rating. Confirm the installation conditions and environmental suitability with CDN TECHNOLOGIES before purchase.
Can the detection sensitivity be adjusted?
Yes. The product specification lists adjustable sensitivity settings to help suit different screening requirements.
Can it integrate with turnstiles or access barriers?
Optional integration with compatible turnstiles and flap or swing barriers is listed. Confirm the required controller and integration configuration before ordering.
Where can I enquire about the D330-33-IP65?
Contact CDN TECHNOLOGIES through the contact page or WhatsApp button for pricing, availability and product guidance.
