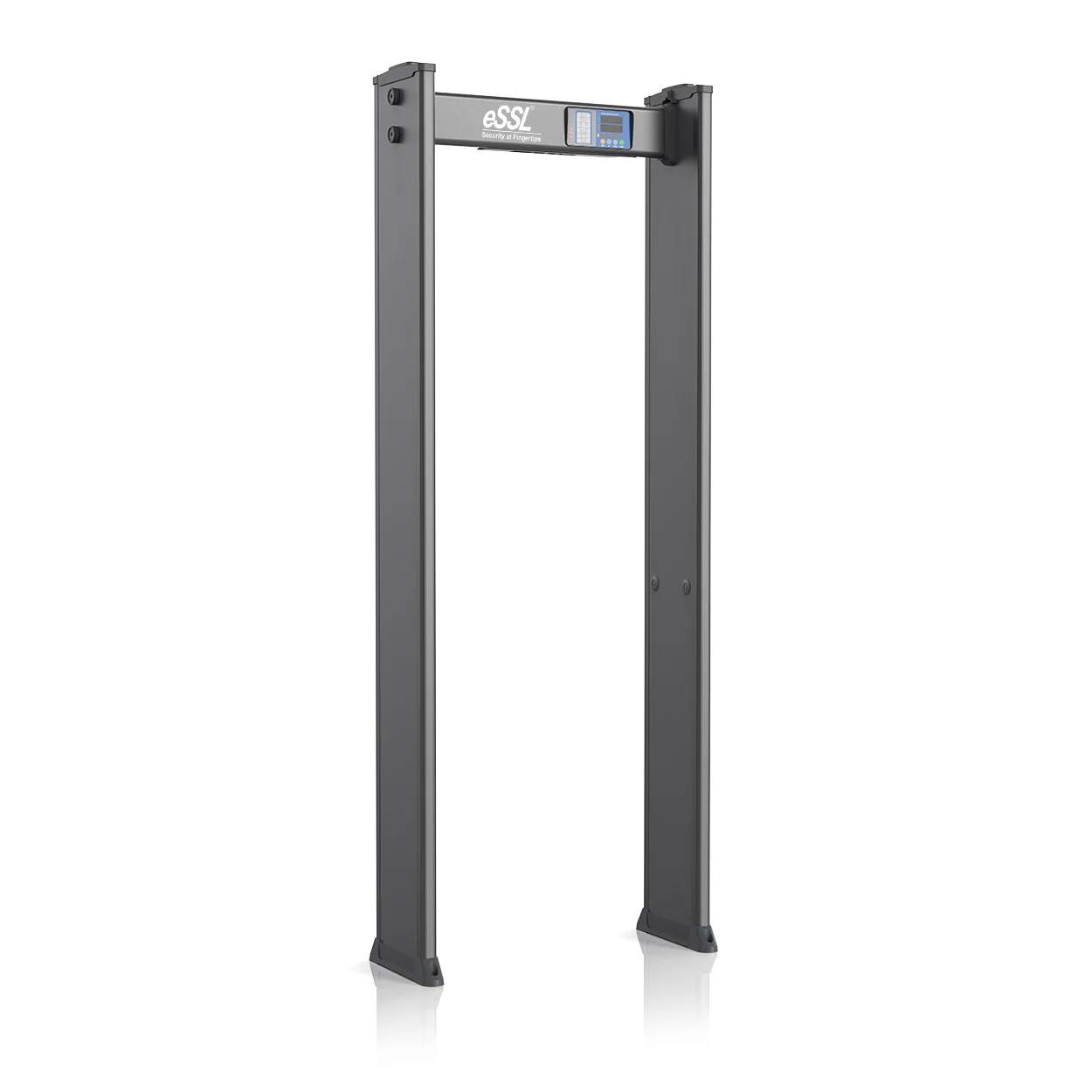

D270-18-IP54 18 Zone Walk Through Metal Detector
The D270-18-IP54 is a walk-through metal detector featuring an 18-zone detection design for security screening at controlled entry points. Its zone indication helps security personnel identify the approximate location of detected metal.
With adjustable sensitivity, a bright LED zone display, infrared passage-counting sensors and configurable alarm settings, it supports organised screening in commercial and institutional environments.
D270-18-IP54 Key Features
Explore the main detection, indication and monitoring features designed to support security screening.
18-Zone Detection
The 18-zone arrangement helps indicate the approximate location of detected metal objects as a person passes through the detector.
Adjustable Sensitivity
Adjustable sensitivity settings help configure detection according to the installation environment and screening requirements.
Bright LED Zone Display
The digital LED indication makes zone-related detection information easier for security personnel to observe during screening.
Infrared Counting Sensors
Infrared sensors support passage counting and alarm counting, helping staff monitor activity at the screening checkpoint.
Configurable Alarm Settings
Selectable alarm tones, adjustable volume and alarm duration settings help adapt alerts to the needs of the installation.
IP54 Protection Rating
The IP54-rated enclosure provides protection against limited dust ingress and water splashes under the specified test conditions.
D270-18-IP54 Technical Specifications
Review the listed specifications for the 18-zone walk-through metal detector.
| Product Model | D270-18-IP54 |
|---|---|
| Product Type | 18 Zone Walk Through Metal Detector |
| Detection Zones | 18 zones |
| Working Principle | Electromagnetic |
| Protection Rating | IP54 |
| Construction Material | ABS (Acrylonitrile Butadiene Styrene), as listed |
| Operating Frequency Range | 0–100 (manufacturer-listed value; unit to be confirmed) |
| External Dimensions | 2165 × 828 × 349 mm (manufacturer-listed dimensions) |
| Passage Dimensions | 2017 × 720 × 349 mm (manufacturer-listed dimensions) |
| Net Weight | 21 kg (manufacturer-listed value) |
| Gross Weight | 27 kg (manufacturer-listed value) |
| Power Input | AC 100–240 V |
| Power Frequency | 50–60 Hz |
| Working Temperature | -20°C to +65°C (manufacturer-listed range) |
| Working Humidity | Up to 99%, non-condensing (as listed) |
| Sensitivity Adjustment | 0–400 (manufacturer-listed range) |
| Volume Adjustment | 0–50 (manufacturer-listed range) |
| Alarm Duration | 0–3 seconds (manufacturer-listed range) |
| Alarm Tones | 15 selectable tones (as listed) |
| Detection Specification | Ferrous metal detection below 75 g, as stated in the manufacturer listing |
| Counting Sensors | Infrared passage count and alarm count |
| Product Colour | Matte Black (as listed) |
Frequently Asked Questions
Common questions about the D270-18-IP54 walk-through metal detector.
1. What is the D270-18-IP54 metal detector?
The D270-18-IP54 is an 18-zone walk-through metal detector designed to assist security personnel with screening people at controlled entry points.
2. How many detection zones does this model have?
This model is listed with an 18-zone detection arrangement. The zone indication helps staff identify the approximate location of detected metal objects.
3. Can the sensitivity be adjusted?
Yes. The manufacturer listing provides a sensitivity adjustment range of 0–400. Appropriate settings depend on the site, the screening requirements and the installation configuration.
4. Does this detector have a zone display?
Yes. The model features a bright LED zone display to help security staff view detection indications during the screening process.
5. Does the D270-18-IP54 support people counting?
The listed configuration includes infrared sensors for passage counting and alarm counting, helping staff monitor activity at a screening checkpoint.
6. What does IP54 protection mean?
IP54 indicates protection against limited dust ingress and water splashes under specified test conditions. It does not mean the detector is waterproof or suitable for every outdoor installation.
7. Where can the D270-18-IP54 be installed?
It may be considered for entry-screening points at offices, factories, educational institutions, hotels and commercial premises. Suitability depends on the site's security plan and installation conditions.
8. How can I get a price for this model?
Contact CDN TECHNOLOGIES through the enquiry button or WhatsApp link for pricing, availability and assistance with your security screening requirements.
Get in Touch for Product Enquiry
Interested in the D270-18-IP54 18 Zone Walk Through Metal Detector? Contact CDN TECHNOLOGIES for product pricing, availability and assistance choosing a suitable security screening solution.
