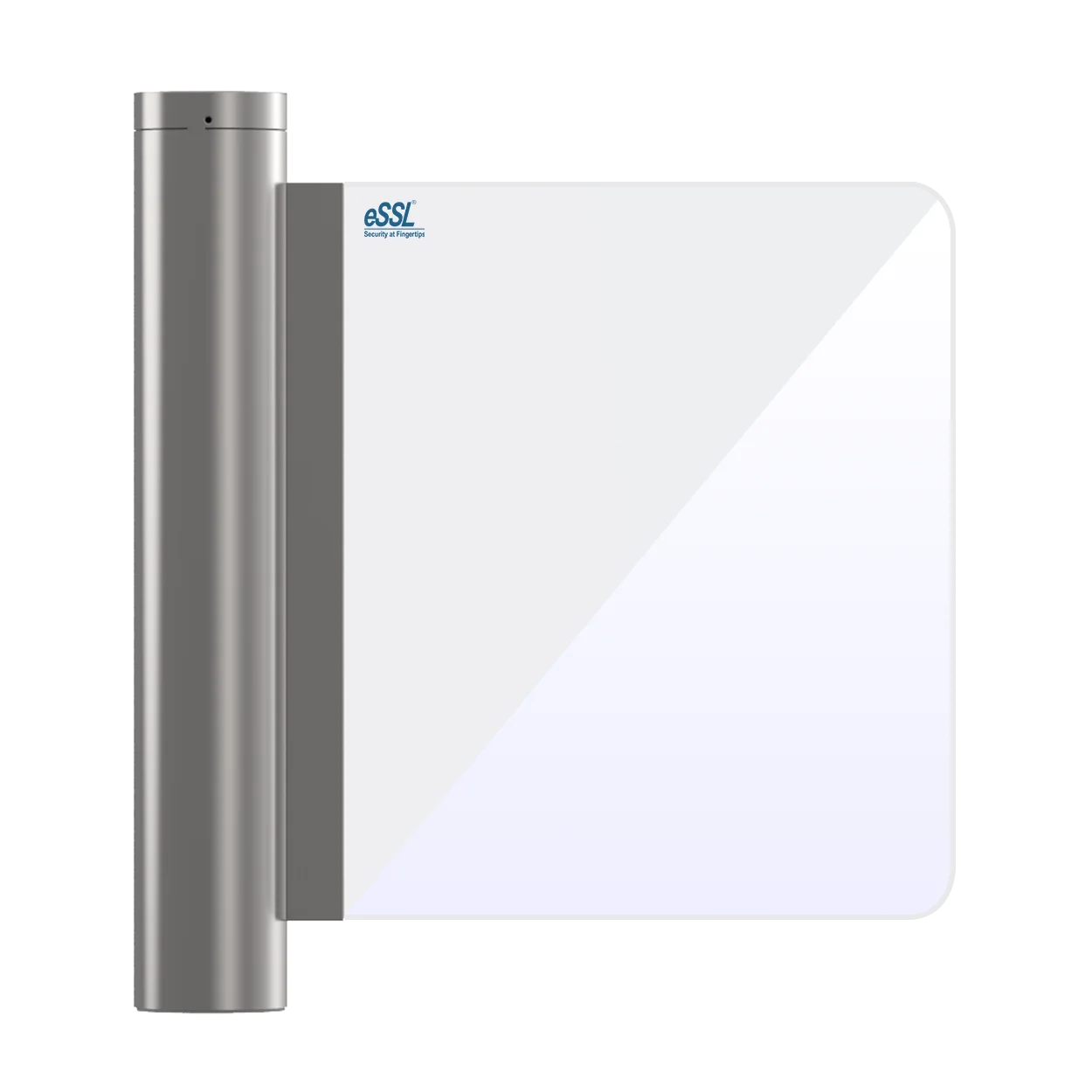

SB-E315 Swing Barrier
The SB-E315 Swing Barrier is designed to help manage pedestrian entry and exit at controlled access points. Its servo motor-based swing gate movement and transparent acrylic barrier arm combine practical access management with a modern entrance design.
Featuring a 304-grade stainless steel cabinet, a standard passage width of 600 mm and an optional 900 mm passage configuration, the SB-E315 is suitable for controlled pedestrian movement in a range of entry environments.
SB-E315 Swing Barrier Features
Explore the key construction, movement and performance specifications of the SB-E315 pedestrian swing barrier.
Stainless Steel 304 Cabinet
The cabinet uses 304-grade stainless steel, with a specified round-tube thickness of 2.2 mm.
Transparent Acrylic Barrier
The barrier arm uses transparent acrylic with a specified thickness of 10 mm.
Servo Motor Movement
Servo motor-based swing gate movement is designed to support controlled operation at entry points.
Flexible Passage Width
The standard passage width is 600 mm, with an optional 900 mm configuration available.
Pedestrian Flow Management
The published pass rate is 15–25 persons per minute, supporting managed movement through entrances.
IP54 Protection Rating
The listed IP54 rating and operating specifications help determine suitability for the intended installation environment.
SB-E315 Technical Specifications
Review the published product dimensions, materials, electrical details and operating conditions.
| Product Model | SB-E315 |
|---|---|
| Product Size (L × W × H) | 168 × 168 × 1000 mm |
| Standard Passage Width | 600 mm |
| Optional Passage Width | 900 mm |
| Cabinet Material | Stainless Steel 304 Grade; round tube thickness 2.2 mm |
| Barrier Arm Material | Transparent acrylic |
| Barrier Arm Thickness | 10 mm |
| Movement Type | Servo motor-based swing gate movement |
| Drive Unit | 200W servo motor |
| Control Unit | Servo control system |
| Power Supply | 24V 500W (as published by the manufacturer) |
| Power Consumption | 50W |
| Pass Rate | 15–25 persons per minute |
| Operating Temperature | -20°C to +70°C |
| Operating Humidity | ≤90%, non-condensing |
| Protection Rating | IP54 |
| Installation Environment | Indoor and outdoor installation; outdoor installation with a canopy |
Frequently Asked Questions
Common questions about the SB-E315 Swing Barrier, its specifications and installation environment.
What is the SB-E315 Swing Barrier?
The SB-E315 is a servo motor-based swing barrier designed to help manage pedestrian access at controlled entrances and exits.
What is the standard passage width of the SB-E315?
The standard passage width is 600 mm. An optional 900 mm passage width is also listed by the manufacturer.
Which materials are used in the SB-E315?
The cabinet is specified as 304-grade stainless steel with a 2.2 mm round-tube thickness. The barrier arm is made of transparent acrylic with a thickness of 10 mm.
What type of motor does the SB-E315 use?
The manufacturer lists servo motor-based swing gate movement with a 200W servo motor drive unit and a servo control system.
What is the pass rate of the SB-E315 Swing Barrier?
The published pass rate is 15–25 persons per minute. Actual throughput can depend on the installation and how the entrance is operated.
Can the SB-E315 be installed outdoors?
The manufacturer lists indoor and outdoor use, with a canopy specified for outdoor installation. Confirm the site conditions and installation requirements before deployment.
What are the operating temperature and humidity limits?
The published operating temperature range is -20°C to +70°C, and the specified humidity is up to 90% without condensation.
