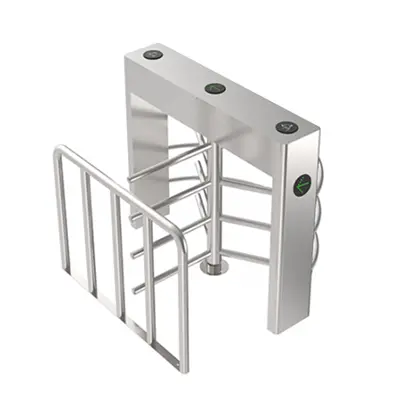

HHT-TL-139 Half-Height Turnstile
The HHT-TL-139 is a half-height pedestrian turnstile designed to help regulate entry and exit at controlled access points. Its stainless-steel construction and single- or bi-directional passage configuration make it suitable for compatible commercial and institutional environments.
With a 600 mm passage width, a listed throughput of 30–35 persons per minute and RS485/dry-contact interfaces, it can be integrated with compatible access control equipment.
Key Features of the HHT-TL-139 Half-Height Turnstile
Explore the construction, passage control and integration features of this half-height pedestrian turnstile.
Half-Height Turnstile Design
Provides a defined pedestrian passage for controlled entrances at factories, museums, stadiums and similar sites.
Single or Bi-Directional Passage
Supports single-directional or bi-directional passage arrangements, according to the configured access requirements.
600 mm Passage Width
The manufacturer specifies a 600 mm pass width for pedestrian movement through the turnstile.
SS304 Stainless-Steel Construction
Built using 1.2 mm SS304 stainless steel, as listed in the manufacturer's specifications.
30–35 Persons per Minute
The listed pass rate is 30–35 persons per minute. Actual throughput depends on users, access settings and site conditions.
RS485 and Dry-Contact Interface
Includes RS485 and dry-contact communication interfaces for integration with compatible access controllers and reader systems.
HHT-TL-139 Technical Specifications
Review the manufacturer's listed dimensions, power requirements and operating specifications.
| Product Model | HHT-TL-139 |
| Product Type | Half-Height Pedestrian Turnstile |
| Dimensions (L × W × H) | 1600 × 1400 × 1100 mm |
| Material | 1.2 mm SS304 stainless steel |
| Pass Width | 600 mm |
| Passage Direction | Single-directional / Bi-directional |
| Pass Rate | 30–35 persons per minute |
| Operating Time | 0.2 seconds, as listed |
| Power Input | AC 100–240V, 50/60Hz |
| Maximum Power Consumption | 35W, as listed in the catalogue |
| Working Voltage | 24V |
| Working Humidity | 30%–95% |
| Working Temperature | -40°C to +70°C, as published |
| Working Environment | Indoor |
| Communication Interface | RS485, Dry Contact |
| MCBF | 5,000,000 cycles |
| Reader Integration | Compatible access controllers and RFID/fingerprint readers |
| Typical Applications | Factories, museum parks, stadiums and controlled pedestrian entrances |
HHT-TL-139 Frequently Asked Questions
Find answers to common questions about the HHT-TL-139 half-height pedestrian turnstile.
What is the HHT-TL-139 turnstile?
The HHT-TL-139 is a half-height pedestrian turnstile designed to regulate access at controlled entrances in factories, museums, stadiums and similar locations.
What is the passage width of the HHT-TL-139?
The official product specifications list a passage width of 600 mm.
How many people can pass through per minute?
The listed pass rate is 30–35 persons per minute. Actual throughput depends on site layout and access control operation.
Does the HHT-TL-139 support bi-directional passage?
Yes. The manufacturer lists both single-directional and bi-directional passage configurations.
Which material is used in the HHT-TL-139?
The specifications list 1.2 mm SS304 stainless steel for the turnstile body.
Which communication interfaces are available?
The listed interfaces are RS485 and dry contact. Confirm reader and controller compatibility before installation.
Can RFID or fingerprint readers be integrated?
The manufacturer's catalogue lists integration with compatible controllers and RFID/fingerprint readers. The required readers and controller may need to be selected for the project.
How can I enquire about the HHT-TL-139 from CDN Technologies?
Contact CDN Technologies through the website contact page or use the WhatsApp Enquiry button below to ask about pricing, availability and installation requirements.
