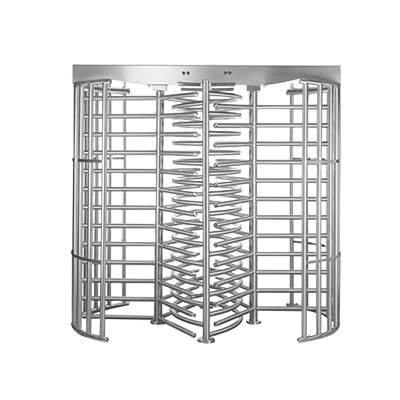

FHT-TL-239 Full Height Turnstile – Double Door
The FHT-TL-239 Full Height Turnstile is designed for controlled pedestrian access at secured entrances and restricted premises. Its full-height double-door structure helps prevent unauthorized bypassing and supports orderly pedestrian entry and exit.
Built with a 304 stainless steel frame, the FHT-TL-239 features a programmable micro-computer controller, configurable one-way or bi-directional operation and integration support through dry-contact and high/low-level signals. Optional card readers, barcode readers and other access-control equipment can be added to meet site requirements.
FHT-TL-239 Full Height Turnstile Features
Explore the construction, access-control integration, operating modes and safety functions of the FHT-TL-239.
304 Stainless Steel Frame
The stainless steel frame is designed for durability in demanding pedestrian access-control installations.
Full Height Double-Door Design
The tall rotating-arm structure creates a defined passage and helps deter unauthorized entry over or around the turnstile.
Controlled Pedestrian Throughput
The manufacturer lists a traffic speed of 25 persons per minute for managed pedestrian movement.
Multiple Reader Integration
Four card-reader locations are specified, with optional IC/ID readers, barcode readers and compatible read/write equipment.
Power-Safe Emergency Passage
The listed fault response provides a free entry or exit path during power failure to help support emergency movement.
Programmable Controller
The micro-computer controller can be programmed to customer requirements and used with compatible integration systems.
FHT-TL-239 Technical Specifications
Review the official listed construction, electrical requirements and performance specifications.
| Product Model | FHT-TL-239 |
|---|---|
| Product Type | Full Height Turnstile – Double Door |
| Frame Material | 304 Stainless Steel |
| Rotation Direction | Bi-directional or unidirectional |
| Traffic Speed | 25 persons per minute |
| Controller | Programmable micro-computer controller |
| Signal Source | Dry contact and high/low-level signals |
| Roller Working Power | AC 220V ±10% |
| Power Supply Options | AC 220V ±10%, DC 24V 3A ±10%, DC 12V 3A ±10% |
| Operating Environment | Indoor and outdoor |
| Working Temperature | -30°C to +80°C |
| Working Humidity | 5% to 90% |
| Switching Time | 1 second |
| Fault Status | Power-safe with a free exit or entry path |
| Mean Cycles Between Failures (MCBF) | 5 million cycles |
| Frame Protection | Waterproof seal |
| Card Reader Locations | 4 |
| Installation and Maintenance Portal | 1 |
| Optional Equipment | IC/ID card reader, barcode reader, other read/write equipment, UPS and infrared detector |
Frequently Asked Questions
Common questions about the FHT-TL-239 Full Height Turnstile.
What is the FHT-TL-239 Full Height Turnstile?
The FHT-TL-239 is a double-door full height turnstile designed to control pedestrian entry and exit at secured premises and restricted-access facilities.
Which material is used in the FHT-TL-239?
The manufacturer's specification lists a 304 stainless steel frame.
Can the FHT-TL-239 operate in both directions?
Yes. The published rotation options include bi-directional and unidirectional operation, depending on the access-control configuration.
What is the traffic speed of the FHT-TL-239?
The product page lists a traffic speed of 25 persons per minute. Actual throughput can vary with the installation layout and pedestrian behaviour.
Which access control readers can be connected?
Optional equipment includes IC/ID card readers, barcode readers and other compatible read/write devices. The exact integration depends on the selected equipment and controller configuration.
What happens if power fails?
The manufacturer lists a power-safe fault status that provides a free exit or entry path. Confirm the intended emergency operation for the installed configuration before deployment.
Can the controller integrate with other systems?
Yes. The programmable micro-computer controller can be configured for customer requirements and other integration systems. The listed signal sources are dry contact and high/low-level signals.
