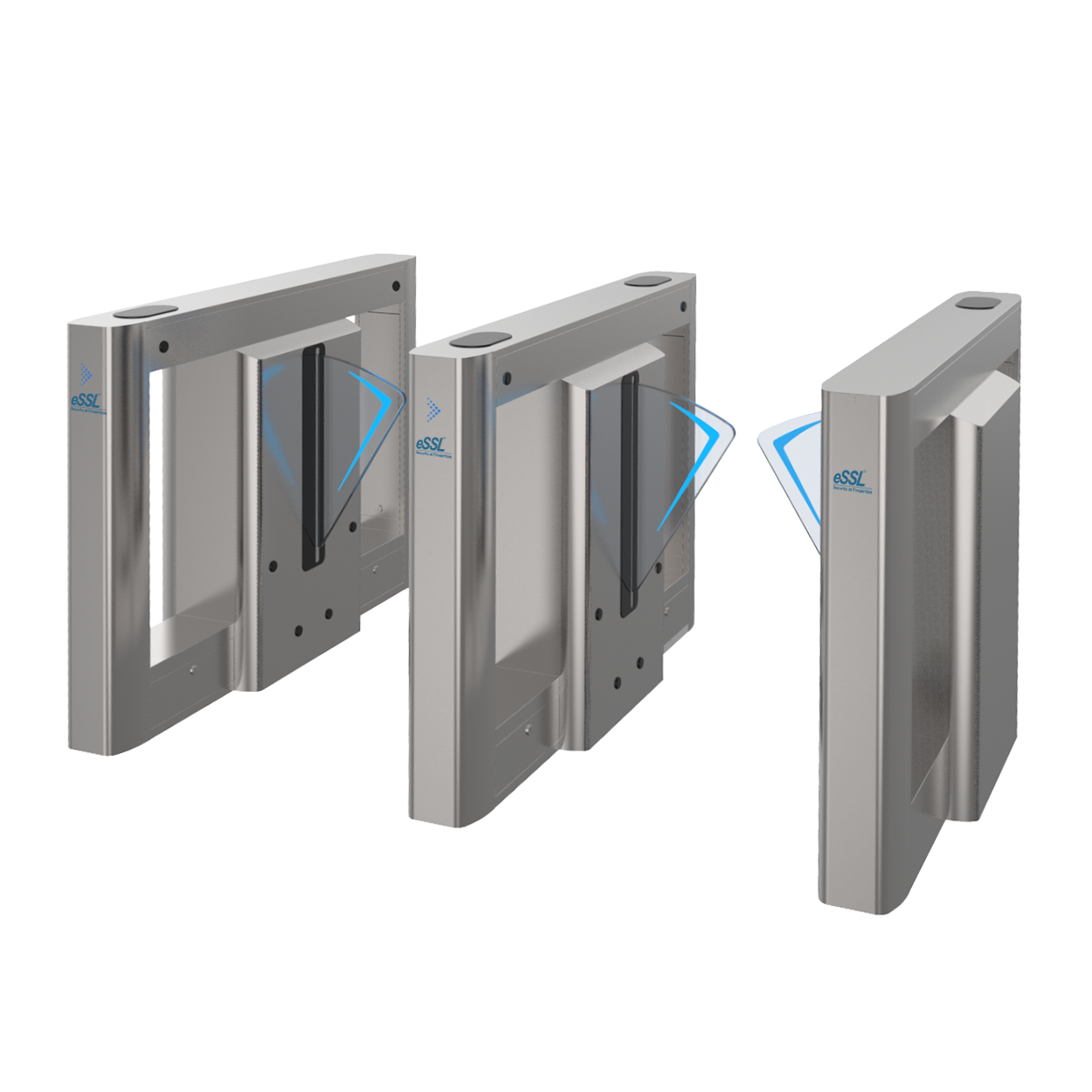

FB-E-2216 Swing Gate Flap Barrier
The FB-E-2216 is a swing-gate flap barrier designed to regulate pedestrian entry and exit at controlled access points. Its SUS304 stainless-steel housing and transparent acrylic barrier arms with RGB lighting provide a modern access-control solution.
The system uses brushless swing-gate movement and six pairs of infrared sensors. With a listed passage width of 550 mm, a throughput of 35–50 persons per minute and dry-contact and RS485 communication interfaces, it supports integration with compatible access-control systems.
FB-E-2216 Key Features
Swing-gate operation, infrared sensing and access-control integration for managing pedestrian traffic.
SUS304 Stainless-Steel Construction
Features a stainless-steel body with a listed top thickness of 1.2 mm and body thickness of 0.9 mm.
Brushless Swing-Gate Movement
Uses brushless swing-gate movement for smooth operation and controlled opening and closing of the barrier arms.
Six Pairs of Infrared Sensors
Six pairs of infrared sensors help detect pedestrian passage and support the barrier's anti-clip function.
Access-Control Compatibility
Supports integration with compatible IC and ID card readers, scanning systems and face-recognition access-control equipment.
Anti-Tailgating and Anti-Reverse
Includes anti-tail and anti-reverse passage functions to help restrict unauthorised pedestrian movement through controlled access lanes.
RGB Indicator Lighting
Acrylic barrier arms use RGB lighting to provide visual indication and make the gate status easier to recognise.
FB-E-2216 Technical Specifications
Review the listed size, electrical requirements, sensor configuration and operating conditions.
| Product Model | FB-E-2216 |
|---|---|
| Product Type | Swing Gate Flap Barrier |
| Dimensions (L × W × H) | 1400 × 280 × 980 mm |
| Pass Width | 550 mm |
| Power Consumption | 50 W |
| Top Material | SUS304 stainless steel, 1.2 mm thick |
| Body Material | SUS304 stainless steel, 0.9 mm thick |
| Barrier Arm Material | Acrylic arm with RGB lighting |
| Movement | Brushless swing-gate movement |
| Infrared Sensors | 6 pairs |
| Indicator Light | RGB light |
| Drive Unit | Brushless DC 30K, 40 W |
| Power Supply | 24 V, 150 W |
| Control Unit | Brushless control system |
| Communication Interface | Dry contact and RS485 |
| Pass Rate | 35–50 persons per minute |
| Operating Temperature | -20°C to +70°C |
| Working Humidity | Up to 90%, non-condensing |
| Protection Rating | IP4X |
| Installation Environment | Indoor and outdoor under a canopy |
| Anti-Tail Function | Supported |
| Anti-Reverse Passage | Supported |
| Infrared Anti-Clip Function | Supported while the gate is open or moving |
| Automatic Reset | Returns to the locked state if passage is not completed within the configured time |
| Card Memory | With-memory and without-memory modes |
| Operating Modes | Open or closed |
| Card Reading Modes | One-way or two-way card reading |
| Compatible Access Methods | IC card, ID card, scanning and face recognition |
Frequently Asked Questions
Common questions about the FB-E-2216 swing gate flap barrier.
1. What is the FB-E-2216 flap barrier?
The FB-E-2216 is a swing-gate flap barrier designed to control pedestrian entry and exit at secured access points.
2. What are the dimensions of the FB-E-2216?
The listed dimensions are 1400 × 280 × 980 mm, with a passage width of 550 mm.
3. What material is used in its construction?
The body and top are made from SUS304 stainless steel. The listed thicknesses are 0.9 mm for the body and 1.2 mm for the top. The barrier arms are acrylic with RGB lighting.
4. What is the pass rate of the FB-E-2216?
The manufacturer's listed pass rate is 35–50 persons per minute. Actual throughput may vary with the access configuration and pedestrian behaviour.
5. Does the FB-E-2216 include safety sensors?
Yes. It has six pairs of infrared sensors and an infrared anti-clip function. These features support detection and help reduce the risk of the gate closing on a person.
6. Which access-control systems can be connected?
The manufacturer lists compatibility with IC cards, ID cards, scanning and face-recognition systems. Communication interfaces include dry contact and RS485.
7. Can the FB-E-2216 be installed outdoors?
The manufacturer lists indoor and outdoor installation under a canopy. Its IP4X rating does not establish protection against water, so a sheltered installation and site suitability should be confirmed.
