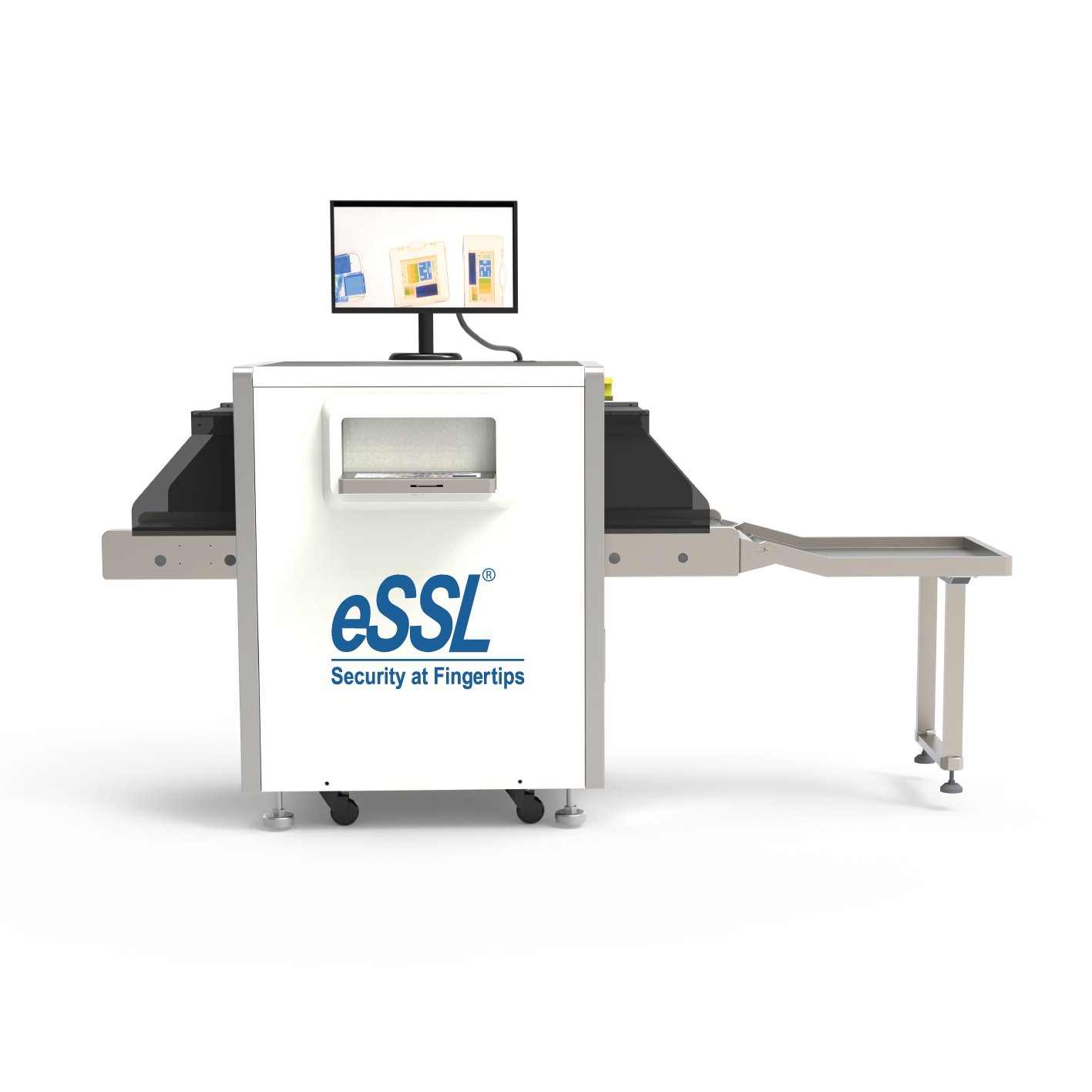

eBS-6040A X-Ray Baggage Scanner
The eBS-6040A is a single-energy X-ray baggage scanner designed to inspect bags, parcels and other items without opening them. Its 600 × 400 mm tunnel and conveyor system support baggage screening at controlled security checkpoints.
With a 24-bit L-shaped array detector, a 19-inch colour LCD monitor and image-enhancement tools, the system helps trained operators examine baggage images. LAN connectivity, real-time image storage and self-diagnosis functions support day-to-day screening operations.
eBS-6040A Key Features
Baggage inspection features combining X-ray imaging, image processing, storage and operator safety controls.
600 × 400 mm Tunnel
The 600 mm wide and 400 mm high tunnel supports screening of baggage and parcels that fit within the specified inspection opening.
150 kg Conveyor Capacity
The conveyor supports a listed maximum load of 150 kg, helping accommodate baggage within the machine's rated operating limits.
19-Inch Colour LCD Display
The high-resolution 19-inch colour LCD monitor displays X-ray images for review by trained screening operators.
Image Enhancement Tools
Includes edge enhancement, high- and low-penetration views, brightness adjustment, magnification, image replay and image restoration.
Real-Time Image Storage
Supports real-time image storage and reviewing of previous inspection images to assist screening checks and operational records.
LAN and Self-Diagnosis
Network connectivity supports multi-terminal image checking, while the self-diagnosis function can notify operators of detected equipment faults.
eBS-6040A Technical Specifications
Review the tunnel dimensions, conveyor capacity, X-ray generator, detector and operating requirements.
| Product Model | eBS-6040A |
|---|---|
| Product Type | Single-Energy X-Ray Baggage Scanner |
| Tunnel Size | 600 mm (W) × 400 mm (H) |
| Conveyor Speed | 0.22 m/s |
| Maximum Conveyor Load | 150 kg |
| X-Ray Detector | L-shaped array detector, 24-bit single energy |
| Single Inspection Dose | Less than 1.0 μGy |
| Leakage Radiation | Less than 0.06 μGy/h |
| Radiation Level at 5 cm | Less than 0.06 μGy/h, as listed |
| Wire Resolution | 40 AWG (0.0787 mm metal line) |
| Steel Penetration | 10 mm |
| Film Safety | For ISO 1600 film, as listed by the manufacturer |
| X-Ray Generator Orientation | Upward |
| Tube Current | 0.4–0.7 mA, adjustable |
| Anode Voltage | 80 kV; maximum tube potential listed as 100 kV |
| X-Ray Divergence Angle | 60° |
| Number of X-Ray Tubes | 1 |
| Generator Cooling | Sealed oil bath with forced-air cooling |
| Generator Working Period | 100% duty cycle, as listed |
| Display | High-resolution 19-inch colour LCD monitor |
| Colour Quality | 24-bit real colours based on material identification |
| Material Identification | Organic objects in orange, inorganic objects in blue and mixtures in green |
| High / Low Energy View | High-energy and low-energy view switching, as listed |
| Image Processing | Edge enhancement, super image enhancement, high/low penetration display, magnifier and brightness adjustment |
| Image Recurrence | Previous 20 images can be displayed and reviewed, as listed |
| Image Restoration | Restores an image to its initial status |
| Image Storage | Real-time image storage and processing during operation |
| Network Interface | LAN connection and multi-terminal baggage-image checking |
| System Power | 220 V AC ±10%, 50 Hz ±3 Hz |
| Maximum Power Consumption | 1.0 kW |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 20%–95%, non-condensing |
| Noise Level | Less than 58 dB |
| Safety X-Ray Control | X-ray transmission is controlled automatically, as described by the manufacturer |
| Shutdown Control | Key-operated shutdown |
| Self-Diagnosis | Automatic malfunction notification |
| Listed Standard | CE EN ISO 12100:2010 is referenced on the product listing; confirm current model-specific documentation |
Safety note: X-ray baggage scanners should be installed, operated and maintained according to the manufacturer's documentation and applicable radiation-safety requirements. Obtain the current model-specific technical and compliance documents before purchase or installation.
Frequently Asked Questions
Common questions about the eBS-6040A X-ray baggage scanner.
1. What is the eBS-6040A baggage scanner?
The eBS-6040A is a single-energy X-ray baggage scanner designed to inspect bags and parcels without opening them.
2. What is the tunnel size of this model?
The tunnel opening is 600 mm wide and 400 mm high. Baggage must fit within this opening and stay within the conveyor's rated load.
3. What is the maximum conveyor load?
The manufacturer lists a maximum conveyor load of 150 kg. Follow the operating manual for appropriate baggage handling.
4. What image-enhancement features are available?
Listed tools include edge and super-image enhancement, high- and low-penetration views, magnification, brightness adjustment, image recurrence and image restoration.
5. Does the eBS-6040A identify different materials by colour?
The manufacturer describes a colour-material identification function that displays organic objects in orange, inorganic objects in blue and mixtures in green.
6. Can the scanner connect to a network?
Yes. The listed LAN interface supports network connectivity and multi-terminal baggage-image checking, subject to the configured system.
7. What are its operating conditions?
The listed operating temperature is 0°C to 45°C, storage temperature is -20°C to 60°C, and relative humidity is 20%–95%, non-condensing.
