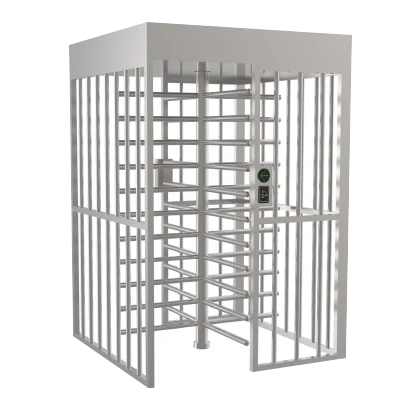

FHT-TL-132 Full Height Turnstile – Single Door
The FHT-TL-132 Full Height Turnstile is designed to control pedestrian entry and exit at secured premises, industrial facilities and restricted-access areas. Its full-height single-door construction and mechanical locking mechanism help create a controlled passage for authorized users.
Made from SUS304 stainless steel, the FHT-TL-132 supports one-way or two-way operation, a 650 mm passage width and a listed traffic rate of 30 persons per minute. Its power-off opening function, anti-reverse mechanism and configurable memory mode support practical access management.
FHT-TL-132 Full Height Turnstile Features
Explore the construction, access control, mechanical locking and emergency passage functions of the FHT-TL-132.
SUS304 Stainless Steel Body
The full-height frame uses SUS304 stainless steel for a robust structure in controlled pedestrian access areas.
Full Height Single-Door Design
The full-height rotor arrangement creates a defined passage and helps prevent unauthorized bypassing at secured entrances.
0.2-Second Unlock Time
The manufacturer lists an unlock time of 0.2 seconds for responsive operation after an authorized access signal.
Anti-Reverse Mechanism
The anti-reverse device is designed to prevent the rotating assembly from moving against the permitted passage direction.
Power-Off Emergency Opening
In an emergency, the locking mechanism can switch to free-passage mode when power is lost, supporting rapid pedestrian movement.
Memory Mode and Passage Indicator
A control-panel DIP switch can adjust passage delay and memory mode, while a two-way arrow indicator displays passage status.
FHT-TL-132 Technical Specifications
Review the manufacturer's listed dimensions, materials, electrical details and performance specifications.
| Product Model | FHT-TL-132 |
|---|---|
| Product Type | Full Height Turnstile – Single Door |
| Material | SUS304 Stainless Steel |
| Product Size (L × W × H) | 1500 × 1450 × 2250 mm |
| Passage Width | 650 mm |
| Unlock Time | 0.2 seconds |
| Pass Rate | 30 persons per minute |
| Input Voltage | 100–240V AC |
| Driving Voltage | 24V |
| Power Consumption | 30W |
| Working Environment Temperature | -15°C to +55°C |
| Input Signal | Dry contact |
| Traffic Direction | One-way or two-way operation |
| Mechanical Locking | Mechanical locking device with turntable combination structure |
| Emergency Function | Power-off opening that switches from locked mode to free-passage mode |
| Direction Indicator | Two-way arrow indicator |
| Passage Delay | Adjustable via the control-panel DIP switch |
| Memory Mode | Supported; multiple valid card reads can be matched with corresponding passages when configured |
| Anti-Reverse Device | Prevents the rotating unit from moving in the opposite direction |
| Access Permission Reset | Unused permission is automatically cancelled if passage does not occur within the specified time |
Frequently Asked Questions
Common questions about the FHT-TL-132 Full Height Turnstile.
What is the FHT-TL-132 Full Height Turnstile?
The FHT-TL-132 is a full-height single-door turnstile designed to control pedestrian access at secured premises and restricted entrances.
Which material is used in the FHT-TL-132?
The manufacturer's specification lists SUS304 stainless steel as the construction material.
What are the dimensions and passage width?
The published size is 1500 × 1450 × 2250 mm, with a passage width of 650 mm.
What is the pass rate of the FHT-TL-132?
The manufacturer lists a pass rate of 30 persons per minute. Actual throughput can vary with pedestrian behaviour and site conditions.
Can the FHT-TL-132 operate in both directions?
Yes. The turnstile supports two-way traffic functionality, and the brake-lever direction can be configured for one-way or two-way operation.
What happens during a power failure?
The manufacturer lists a power-off opening function that switches the shaft from locked mode to free-passage mode for emergency movement. Confirm the final setup against the site's emergency-safety requirements.
What are memory mode and passage-delay adjustment?
A DIP switch on the control panel can adjust passage delay and enable memory mode. In memory mode, multiple valid card reads may be matched with an equivalent number of passages, depending on configuration.
How can I enquire about the FHT-TL-132?
Contact CDN Technologies through the website enquiry page or WhatsApp to ask about pricing, availability and installation requirements.
