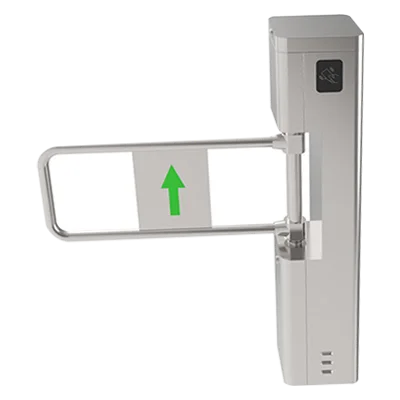

SB-SPL-310 Stainless Steel Swing Barrier
The SB-SPL-310 is a compact swing barrier designed to regulate pedestrian access at controlled entry and exit points. Its stainless-steel 304 housing and stainless-steel frame arm provide a practical solution for access-control installations.
With a standard passage width of 600 mm and an optional 900 mm configuration, the SB-SPL-310 supports bi-directional single-person passage. Its listed operating time of 0.2 seconds and throughput of 20–25 persons per minute help support organised movement through controlled access lanes.
SB-SPL-310 Key Features
A compact swing barrier with stainless-steel construction, adjustable passage width options and efficient bi-directional access control.
Stainless Steel 304 Housing
Features a stainless-steel 304 housing with a listed material thickness of 1.2 mm for a robust and professional access-control installation.
Bi-Directional Passage
Supports passage in both directions, with single-person passage operation to help manage pedestrian access at controlled entrances and exits.
600 mm Standard Passage Width
Provides a listed standard passage width of 600 mm, with an optional 900 mm width available for appropriate installation requirements.
Fast 0.2-Second Operating Time
The listed operating time is 0.2 seconds, supporting responsive barrier movement during authorised pedestrian passage.
Stainless Steel Frame Arm
The arm uses a stainless-steel frame construction, complementing the housing and supporting regular access-control operation.
Low Power Consumption
The listed maximum power consumption is 35 W. The unit operates on a 24 V DC operational voltage with a 100–240 V AC power supply.
SB-SPL-310 Technical Specifications
Review the listed dimensions, passage options, electrical requirements and operating performance.
| Product Model | SB-SPL-310 |
|---|---|
| Product Type | Swing Barrier |
| Product Size | 200 × 200 × 980 mm |
| Standard Passage Width | 600 mm |
| Housing Material | Stainless Steel 304 |
| Optional Passage Width | 900 mm |
| Material Thickness | SS 1.2 mm |
| Arm Material | Stainless Steel Frame |
| Pass Rate | 20–25 persons per minute |
| Power Supply | 100–240 V AC |
| Operational Voltage | 24 V DC |
| Maximum Power Consumption | 35 W |
| Power Frequency | 50–60 Hz |
| Working Temperature | -25°C to +70°C |
| Operating Modes | Bi-directional with single passage |
| Operating Time | 0.2 seconds |
| Installation Fixing | M12 × 90 mm expansive bolt, as shown in the manufacturer catalogue |
Frequently Asked Questions
Common questions about the SB-SPL-310 swing barrier.
1. What is the SB-SPL-310 swing barrier?
The SB-SPL-310 is a compact swing barrier used to control pedestrian movement at designated entrances and exits. It supports bi-directional, single-person passage operation.
2. What are the dimensions of the SB-SPL-310?
The manufacturer lists a product size of 200 × 200 × 980 mm.
3. What passage widths are available?
The standard passage width is 600 mm, with an optional 900 mm configuration listed by the manufacturer. Confirm the required width when planning the installation.
4. What material is used in its construction?
The housing is made from stainless steel 304 with a listed thickness of 1.2 mm. The arm material is described as a stainless-steel frame.
5. What is the passage rate?
The listed pass rate is 20–25 persons per minute. Actual throughput depends on user behaviour, access authorisation and the installed configuration.
6. What power supply does the SB-SPL-310 use?
The listed power supply is 100–240 V AC, while the operational voltage is 24 V DC. Maximum power consumption is 35 W.
7. Can the barrier operate in both directions?
Yes. The listed operating mode is bi-directional with single passage. The required access-control arrangement should be confirmed for the project.
