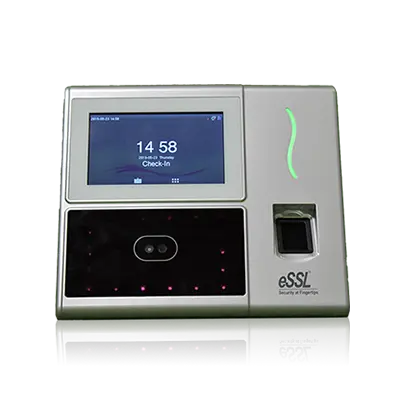

eFace-990 Multi-Biometric Time Attendance and Access Control System
The eFace-990 is a multi-biometric time attendance and access control terminal designed for organisations that need fingerprint, facial recognition and card-based verification in one device. It features a 4.3-inch touchscreen, a SilkID fingerprint sensor and Hi-Fi voice.
The standard listing supports up to 10,000 fingerprints, 6,000 face templates for 1:N matching, 10,000 cards and push data. Optional configurations can increase fingerprint and card capacity. The device also supports duplicate-face detection and live-finger detection.
Key Features of eFace-990 Multi-Biometric System
Fingerprint and facial verification, card support and access control connectivity for compatible installations.
Multi-Biometric Verification
Supports multiple biometric verification modes combining fingerprint and facial recognition with card-based access.
High Fingerprint Capacity
Standard capacity supports up to 10,000 fingerprints, with a 50,000-fingerprint option listed by the manufacturer.
Facial Recognition
Supports 6,000 face templates for 1:N matching and 10,000 for 1:1 matching in the standard configuration.
Live-Finger Detection
The listed live-finger detection function helps identify spoofing attempts made using artificial fingerprints.
4.3-Inch Touchscreen
Features a 4.3-inch touchscreen, Hi-Fi voice and indicator tamper-switch alarm.
Network and Access Control
Supports TCP/IP, USB Host, Wiegand output and interfaces for compatible door access equipment.
eFace-990 Technical Specifications
Review the storage, hardware, communication and access control specifications of the eFace-990.
| Product Model | eFace-990 |
|---|---|
| Product Type | Multi-Biometric Time Attendance and Access Control System |
| Display | 4.3-Inch Touchscreen |
| Fingerprint Capacity | 10,000 standard; 50,000 optional (1:N) |
| Face Capacity | 6,000 standard (1:N); 10,000 (1:1) |
| Optional Face Capacity | 3,000 (1:N); 30,000 (1:1) |
| Card Capacity | 10,000 standard; 50,000 optional |
| Transaction Capacity | Current product webpage lists 100,000 records. The PDF brochure lists 1,000,000 records. Confirm the device revision before ordering. |
| Push Data | Yes |
| Processor | 1.2GHz CPU |
| Memory | 1GB RAM / 1GB Flash |
| Fingerprint Sensor | SilkID Fingerprint Sensor |
| Audio and Indicators | Hi-Fi Voice, Indicator and Tamper-Switch Alarm |
| Standard Functions | ID Card, Work Code, DST, SMS, Bell Schedule, Attendance Status Auto-Switch, Record Query and Photo ID |
| Special Functions | Multiple Biometric Verification Modes, Live-Finger Detection and Duplicate-Face Detection |
| Optional Card Reader | HID Prox / Mifare Card Reader |
| Optional Connectivity | Wi-Fi / 3G |
| Other Optional Functions | External Printer, 2,000mAh Battery and PoE (IEEE 802.3at) |
| Communication | TCP/IP, USB Host and Wiegand Output |
| Access Control Interface | Lock Relay Output, Alarm Output, Exit Button, Door Sensor and External Bell |
| Operating Voltage | 12V DC |
| Current Draw | Less than 500mA |
Note: Specifications are based on the manufacturer's product webpage and brochure. These sources differ on standard transaction capacity: the webpage lists 100,000, while the brochure lists 1,000,000. Confirm the applicable device revision and optional configuration before purchase.
Frequently Asked Questions
Common questions about the eFace-990 Multi-Biometric Time Attendance and Access Control System.
What is the eFace-990?
The eFace-990 is a multi-biometric time attendance and access control system designed for compatible employee verification and door access applications.
How many fingerprints can it store?
The standard specification lists 10,000 fingerprints. An optional capacity of 50,000 fingerprints is also listed.
How many face templates does the eFace-990 support?
The standard listed capacity is 6,000 faces for 1:N matching and 10,000 for 1:1 matching. Optional capacities are also listed by the manufacturer.
How many cards can the eFace-990 store?
The standard capacity is 10,000 cards, with an optional capacity of 50,000 cards.
What display does the eFace-990 have?
It features a 4.3-inch touchscreen with Hi-Fi voice and an indicator tamper-switch alarm.
Does the eFace-990 support Wi-Fi?
Wi-Fi and 3G are listed as optional functions. Confirm availability with the supplied configuration.
Can the eFace-990 control a door lock?
Yes. The listed access control interfaces include lock relay output, alarm output, exit button, door sensor and external bell.
How can I enquire about the eFace-990 price?
Contact CDN Technologies for pricing, availability and guidance on the configuration suitable for your time attendance and access control requirements.
Get in Touch for Product Enquiry
Have questions about the eFace-990? Contact CDN Technologies for pricing, availability and help with your attendance and access control requirements.
