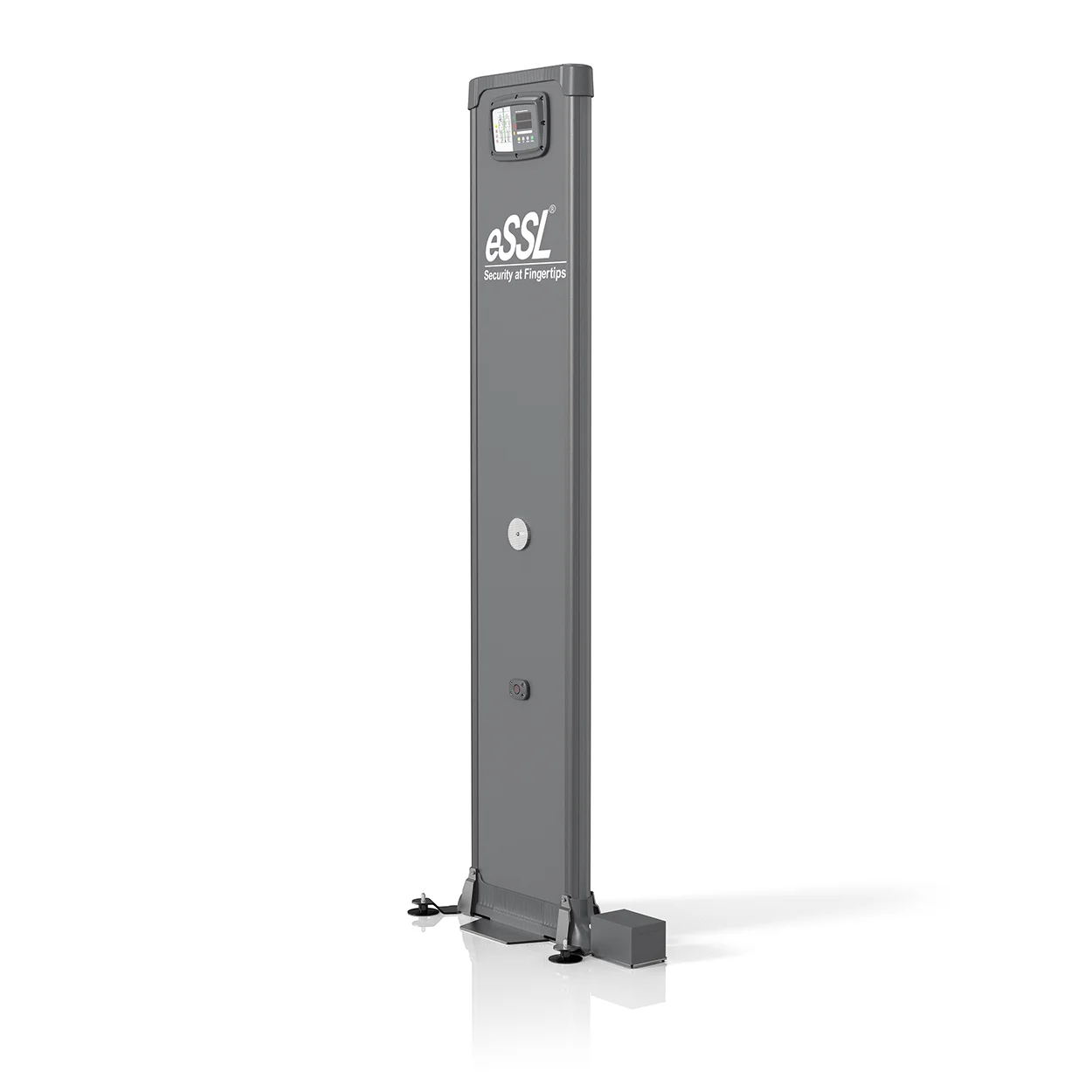

D468-6 Walk Through Metal Detector
The D468-6 is a walk-through metal detection system designed to help identify prohibited metal objects at entry points. It supports selectable 3-zone or 6-zone detection, adjustable sensitivity, a digital LED display and configurable alarm settings for security screening.
Key Features of D468-6
Designed for entry-point security screening, the D468-6 combines configurable detection zones, adjustable alarm controls and clear visual indicators in a compact panel-style system.
Selectable 3 or 6 Zones
Supports selectable 3-zone or 6-zone configurations to suit different screening requirements at controlled entrances.
Adjustable Sensitivity
Sensitivity can be adjusted from 0 to 400 to help configure detection performance for the screening environment.
Digital LED Display
The bright digital display helps operators view detection-related information and alarm counts during screening.
IP54 Protection
The IP54-rated enclosure provides protection against dust ingress and water splashes under suitable installation conditions.
Configurable Alarm Settings
Adjustable volume, alarm duration and 15 selectable alarm tones help security teams configure audible alerts.
Entrance Security Screening
Suitable for screening entry points in offices, commercial buildings, institutions and other controlled-access premises.
Technical Specifications of D468-6
Review the key technical details of the D468-6 walk-through metal detector.
| Specification | Details |
|---|---|
| Model | D468-6 |
| Product Type | Walk Through Metal Detector |
| Detection Zones | Selectable 3 or 6 zones |
| Working Principle | Electromagnetic |
| IP Rating | IP54 |
| Construction Material | ABS (Acrylonitrile Butadiene Styrene) |
| Operating Frequency | 0–99 |
| External Dimensions | 2203 × 580 × 117 mm |
| Net Weight | 19 kg |
| Gross Weight | 24 kg |
| Sensitivity Adjustment | 0–400 |
| Volume Adjustment | 0–50 |
| Alarm Duration | 0–3 seconds |
| Alarm Tones | 15 selectable tones |
| Metal Detection Dimensions | Thickness: 2 mm; Length: 50 mm; Width: 20 mm |
| Dual-Side Detection Distance | 600 mm |
| Distance Between Person and Door | 30 cm or less |
| Working Humidity | Up to 99%, non-condensing |
| Working Temperature | -20°C to +65°C |
| Power Input | AC 100–240 V, 50–60 Hz |
| Product Colour | Matte Black |
| Optional Integration | Entrance automation devices through an optional controller |
Frequently Asked Questions About D468-6
Common questions about the D468-6 walk-through metal detector.
What is the D468-6 walk-through metal detector?
How many detection zones does the D468-6 support?
Can the sensitivity and alarm settings be adjusted?
What is the IP rating of the D468-6?
Where can the D468-6 be installed?
How can I enquire about the D468-6 from CDN Technologies?
Get in Touch for Product Enquiry
Looking for the D468-6 Walk Through Metal Detector for your premises? Contact CDN TECHNOLOGIES to discuss your security screening requirements and request product information.
