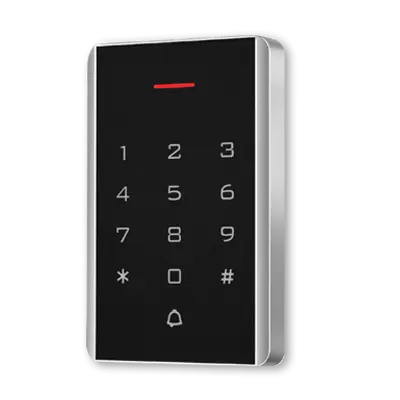

JS-32E Proximity Reader – Standalone Access Control
The JS-32E is a standalone proximity access control device designed to manage door entry using EM cards, PIN codes, or a combination of card and PIN authentication.
With capacity for up to 2,000 users and Wiegand 26 input and output, it offers a practical access management option for indoor installations.
Key Features of the JS-32E Proximity Reader
Explore the main access control features of the JS-32E, from user capacity and card authentication to door control.
2000 User Capacity
Supports a listed capacity of up to 2,000 users, helping manage credential-based entry across offices and other indoor premises.
EM Proximity Cards
Supports EM proximity cards. The product catalogue lists a card reading distance of approximately 3–6 cm.
Multiple Access Modes
The listed access options include PIN, card, and combined PIN-plus-card authentication to suit different access policies.
Wiegand 26 Interface
Provides Wiegand 26 input and output as listed in the product specifications for compatible access control installations.
Adjustable Door Timing
The door-opening time is adjustable from 0 to 99 seconds, according to the listed technical specifications.
Compact Indoor Design
Features a compact plastic housing intended for indoor use. Its listed dimensions are 115 × 75 × 16 mm.
JS-32E Technical Specifications
Review the listed technical specifications before choosing the reader for your access control setup.
| Product Model | JS-32E |
| Product Type | Standalone Proximity Access Control |
| Card Type | EM Proximity Card |
| User Capacity | Up to 2,000 users |
| Access Methods | PIN, Card, PIN + Card |
| Wiegand Interface | Wiegand 26 input and output |
| Working Voltage | DC 12V (verify tolerance with product documentation) |
| Card Reading Distance | 3–6 cm (product catalogue) |
| Door Opening Time | 0–99 seconds, adjustable |
| Static Current | Less than 30 mA |
| Electric Lock Output | Less than 1 A |
| Working Humidity | 10%–90% RH |
| Ambient Temperature | -45°C to +60°C |
| Housing | Plastic case; indoor use |
| Dimensions | 115 × 75 × 16 mm |
JS-32E Frequently Asked Questions
Find answers to common questions about the JS-32E standalone proximity access control device.
What is the JS-32E proximity reader?
The JS-32E is a standalone access control device used to manage door entry using proximity cards, PIN codes, or both.
How many users can the JS-32E support?
The product listing specifies a capacity of up to 2,000 users.
Which cards are compatible with the JS-32E?
The JS-32E product listing specifies EM proximity cards. Confirm the required card type before purchasing replacement cards for an existing installation.
Does the JS-32E support PIN-based entry?
Yes. The listed access methods are PIN, card, and combined PIN-plus-card access.
Can the door-opening time be adjusted?
Yes. The product specifications list an adjustable door-opening time of 0–99 seconds.
Does the JS-32E provide a Wiegand interface?
Yes. The product listing specifies Wiegand 26 input and output. Confirm compatibility with your existing access controller before connecting the device.
What power supply does the JS-32E require?
The product listing specifies DC 12V. Check the product documentation and installation requirements before wiring the power supply and electric lock.
How can I enquire about the JS-32E from CDN Technologies?
Contact CDN Technologies through the website contact page or use the WhatsApp Enquiry button to ask about pricing, availability and your access control requirements.
Get in Touch for Product Enquiry
Have questions about the JS-32E Proximity Reader? Contact CDN Technologies for pricing, availability and help with your access control requirements.
