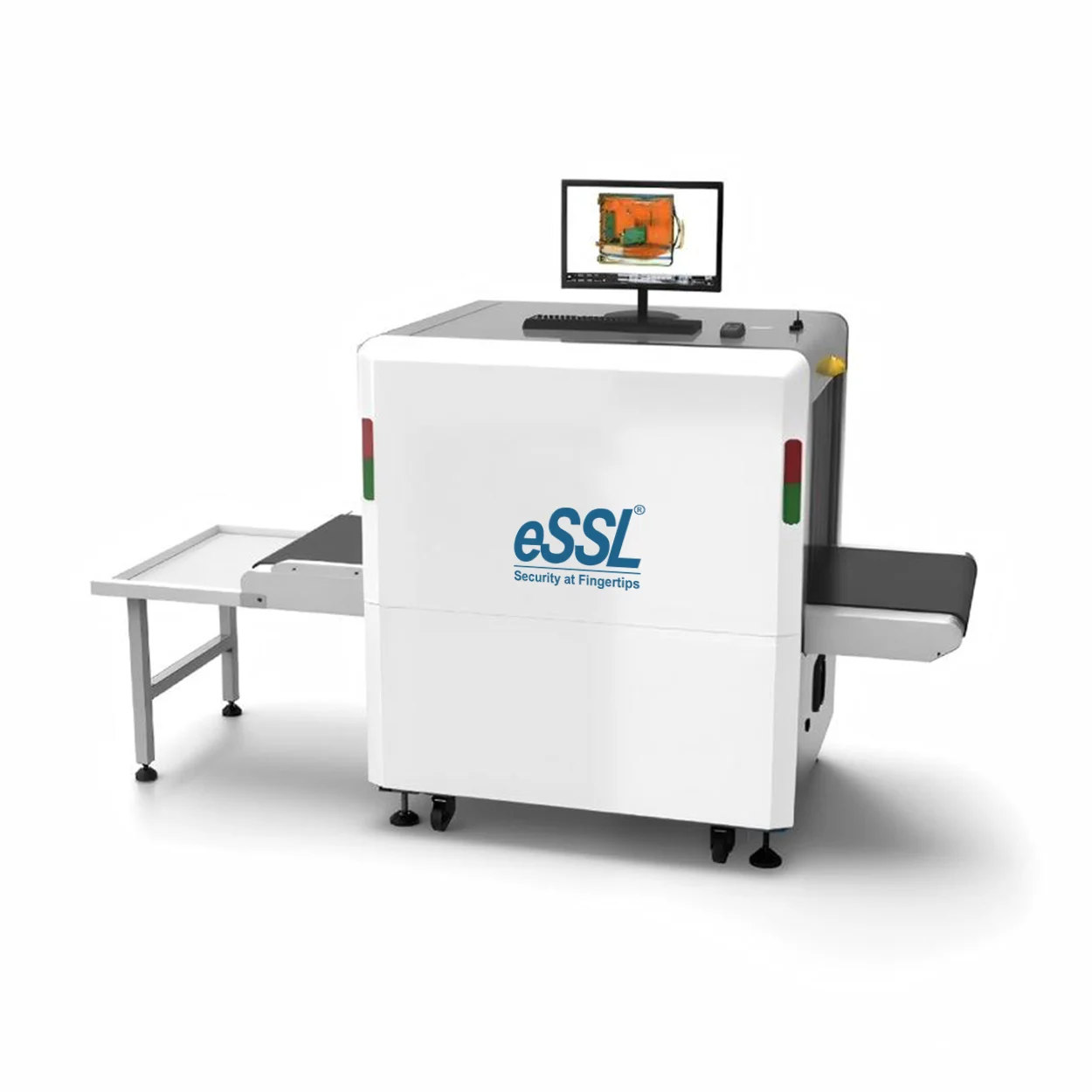

eBS6550A X-Ray Baggage Scanner
The eBS6550A is a single-energy X-ray security inspection system designed for non-intrusive screening of luggage, parcels and cargo. Its 650 × 500 mm tunnel supports inspection of suitable bags and packages at security checkpoints, logistics facilities and controlled entrances.
The system features a 24-bit L-shaped detector array, a 21.5-inch Full HD monitor and a digital image-processing platform. Tools for image enhancement, magnification, storage and operator management help trained personnel review baggage images during security screening.
eBS6550A Key Features
Digital X-ray imaging, image-analysis tools and operator-management functions for baggage screening.
650 × 500 mm Tunnel
The tunnel opening measures 650 mm wide by 500 mm high, accommodating luggage and parcels that fit within the specified inspection area.
0.22 m/s Conveyor Speed
Operates at a listed conveyor speed of 0.22 m/s to move baggage through the X-ray inspection tunnel.
21.5-Inch Full HD Display
The 1920 × 1080 resolution colour display provides a detailed view of X-ray images for operator review.
Advanced Image Processing
Features include colour and black-and-white views, local enhancement, high- and low-penetration views, brightness adjustment, inversion and pseudo-colour.
Image Storage and Management
Supports image storage and review, image export, user management and TIP management, as listed in the system features.
Digital Platform and LAN
Uses a modular circuit design and full-digital ASIC-based acquisition platform, with LAN connectivity available for supported image-checking workflows.
eBS6550A Technical Specifications
Review the tunnel dimensions, detector performance, X-ray source and installation requirements.
| Product Model | eBS6550A |
|---|---|
| Product Type | Single-Energy X-Ray Baggage Scanner |
| Tunnel Size | 650 mm (W) × 500 mm (H) |
| Device Dimensions | 1876 × 934 × 1300 mm (L × W × H) |
| Conveyor Speed | 0.22 m/s |
| Conveyor Height | 660 mm from ground to belt surface |
| X-Ray Generator Voltage | 80–100 kV |
| X-Ray Tube Current | 0.5 mA |
| X-Ray Detector | L-shaped 24-bit colour photodiode array |
| Wire Resolution | AWG 38 (approximately 0.102 mm metal line) |
| Spatial Resolution | 1.0 mm horizontal; 1.0 mm vertical |
| Steel Penetration | 12 mm steel plate |
| Display Size | 21.5-inch colour LCD monitor |
| Display Resolution | 1920 × 1080 pixels |
| Image Processing | Colour/black-and-white, local enhancement, high pass, low pass, superpass, organic/inorganic removal, inversion, brightness, darkening, grey sweep, magnification, pseudo-colour and image restoration |
| Zoom | 1× to 64× continuous adjustment |
| Image Management | Image storage, image export, image review and TIP management |
| Network Interface | LAN interface for supported network and multi-terminal image-checking functions |
| Power Supply | AC 220 V, 50 Hz |
| Power Consumption | 500 W |
| Noise Level | Less than 55 dB at 1 metre from the device |
| Operating Temperature | 5°C to 40°C |
| Operating Humidity | 10%–90%, non-condensing |
| Storage Temperature | -20°C to 40°C |
| Storage Humidity | 0%–90%, non-condensing |
| Leakage Radiation | Less than 0.5 µSv at 50 mm from the device housing, as listed |
| Single Inspection Dose | Less than 5 µGy/h, as listed by the manufacturer |
| Film Safety | ISO 1600 film safety, as stated by the manufacturer |
| Modular Design | Modular internal circuitry for maintainability and interference resistance |
| Digital Acquisition | ASIC-based full-digital acquisition platform |
| System Features | Boot self-test, multi-level user management, curve diagnosis, keyboard diagnostics, device information, multi-format image export, OSD operation, image mirroring, operator training, remote operation software and one-click shutdown |
| Equipment Weight | 280 kg |
Safety note: X-ray baggage scanners must be installed, operated and maintained according to the manufacturer's documentation and applicable radiation-safety requirements. The radiation figures above are reproduced from the product listing. Request the latest model-specific datasheet and compliance documentation before relying on these values for safety assessments or installation approval.
Frequently Asked Questions
Common questions about the eBS6550A X-ray baggage scanner.
1. What is the eBS6550A baggage scanner?
The eBS6550A is a single-energy X-ray baggage scanner designed to inspect luggage, parcels and cargo without opening them.
2. What is the tunnel size of this model?
The listed tunnel opening is 650 mm wide by 500 mm high. Items must fit within the opening and comply with the machine's handling limits.
3. What is the steel penetration capability?
The manufacturer lists a steel penetration capability of 12 mm. Actual image interpretation depends on the object, orientation and inspection conditions.
4. What image-processing functions are available?
Listed functions include colour and black-and-white views, local enhancement, high- and low-penetration views, inversion, brightness adjustment, pseudo-colour, magnification and image restoration.
5. Can operators zoom and review images?
Yes. The listed system includes 1×–64× continuous zoom, image storage, image review, image export and other image-management functions.
6. Does the eBS6550A support network connectivity?
The manufacturer lists a LAN interface for supported network and multi-terminal baggage-image-checking functions. Confirm network requirements and available software options for the installation.
7. What are the operating conditions?
The listed operating temperature is 5°C to 40°C, with humidity of 10%–90%, non-condensing. Confirm site conditions and installation clearances before deployment.
