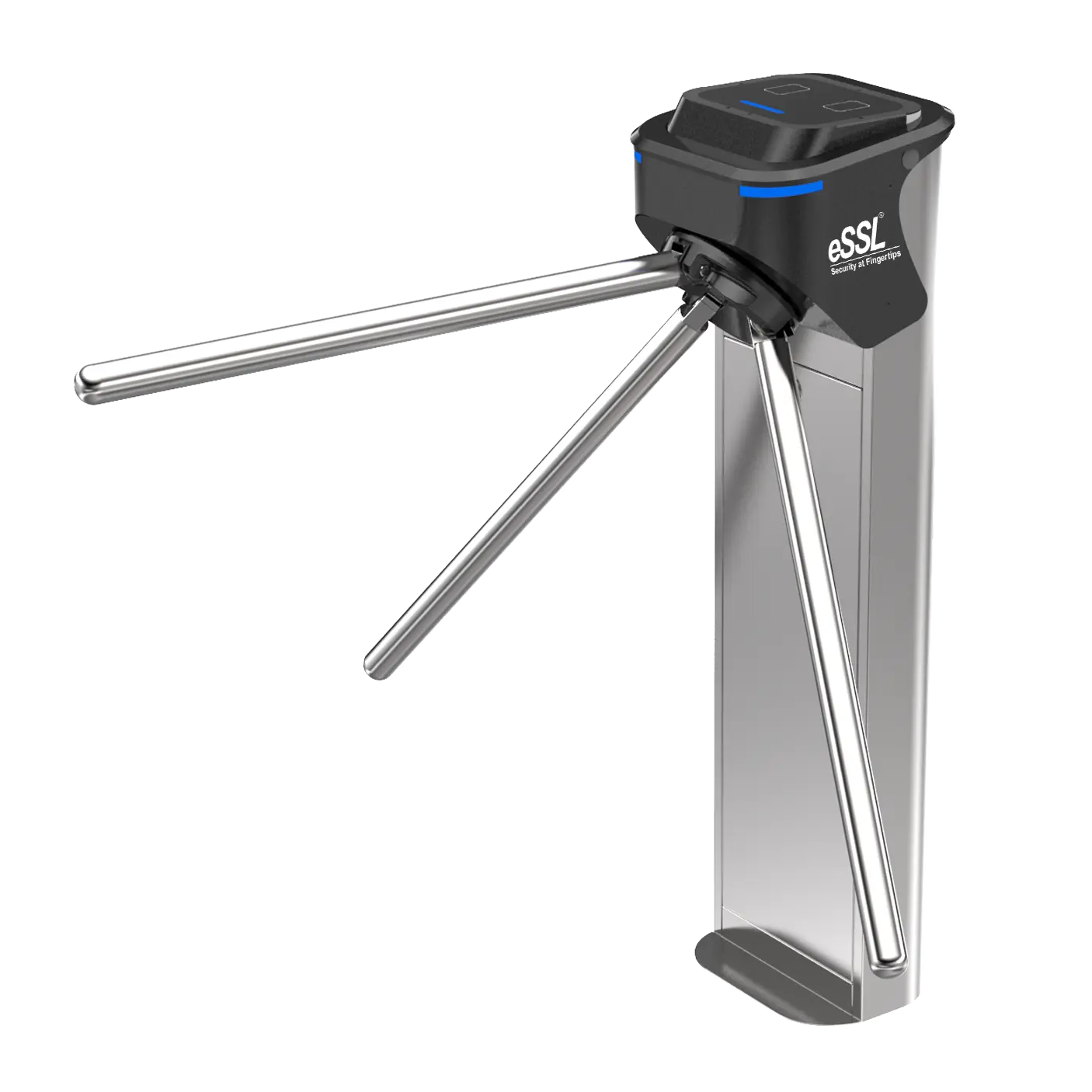

ET-1219 Heavy Duty Tripod Turnstile
The ET-1219 is a heavy-duty tripod turnstile designed to regulate pedestrian entry and exit at controlled access points. Its stainless-steel construction and anti-passback mechanism help organise movement through entrances.
With a 550 mm passage width, RGB status indicators and a listed throughput of 35–50 persons per minute, it can be integrated with compatible IC/ID card access systems for access control and attendance.
Key Features of the ET-1219 Tripod Turnstile
Explore the construction, anti-passback, card access and pedestrian-flow features of the ET-1219.
Heavy-Duty Tripod Design
Uses a three-arm tripod mechanism to help regulate pedestrian access through a designated entry point.
Anti-Passback Mechanism
The listed tripod movement includes an anti-passback function to support controlled access through the turnstile.
550 mm Passage Width
The manufacturer lists a passage width of 550 mm for pedestrian access through the tripod mechanism.
SUS304 Stainless-Steel Body
Features a body made from 1.5 mm SUS304 stainless steel, with SUS201 material listed for the tripod bars.
35–50 Persons per Minute
The listed passage rate is 35–50 persons per minute. Actual throughput depends on access settings and site conditions.
RGB Indicator and Card Access
Provides RGB status indication and supports IC/ID cards. Valid and invalid access attempts can be indicated using green and red lights.
ET-1219 Technical Specifications
Review the manufacturer's listed dimensions, electrical requirements and operating specifications.
| Product Model | ET-1219 |
| Product Type | Heavy Duty Tripod Turnstile |
| Dimensions (L × W × H) | 280 × 260 × 980 mm |
| Passage Width | 550 mm |
| Power Consumption | 35W |
| Housing Material | 1.5 mm SUS304 stainless steel |
| Tripod Bar Material | SUS201 stainless steel |
| Movement | Tripod turnstile movement with anti-passback |
| Indicator Light | RGB indicator |
| Power Supply | 24V, 50W |
| Control Unit | Main control board |
| Communication Interface | Dry contact and RS485 |
| Pass Rate | 35–50 persons per minute |
| Operating Temperature | -20°C to +70°C |
| Operating Humidity | Up to 90%, no condensation |
| Ingress Protection | IP4X |
| Installation Environment | Indoor; outdoor use with canopy |
| Card Compatibility | IC and ID cards |
| Card Memory Mode | With-memory or without-memory configuration |
| Automatic Reset | Returns to locked state if access is not completed within the configured time |
| Integration | Access control, attendance and fee-related functions |
ET-1219 Frequently Asked Questions
Find answers to common questions about the ET-1219 heavy-duty tripod turnstile.
What is the ET-1219 tripod turnstile?
The ET-1219 is a heavy-duty tripod turnstile designed to regulate pedestrian movement at controlled entrances in commercial, industrial and institutional environments.
What is the passage width of the ET-1219?
The official product specifications list a passage width of 550 mm.
What is the throughput rate of the ET-1219?
The listed passage rate is 35–50 persons per minute. Actual throughput can vary according to pedestrian flow and access control configuration.
Does the ET-1219 support anti-passback?
Yes. The manufacturer describes the movement as a tripod turnstile mechanism with an anti-passback function.
Which materials are used in the ET-1219?
The listed body material is 1.5 mm SUS304 stainless steel, while the tripod bars are specified as SUS201.
Which access cards are compatible with the ET-1219?
The official listing specifies IC and ID card compatibility. The appropriate reader and controller configuration should be confirmed for your installation.
Can the ET-1219 be installed outdoors?
The manufacturer lists indoor use and outdoor use with a canopy. Its published ingress protection rating is IP4X, so provide suitable shelter for outdoor setups.
How can I enquire about the ET-1219 from CDN Technologies?
Contact CDN Technologies through the website contact page or use the WhatsApp Enquiry button below to ask about pricing, availability and installation requirements.
