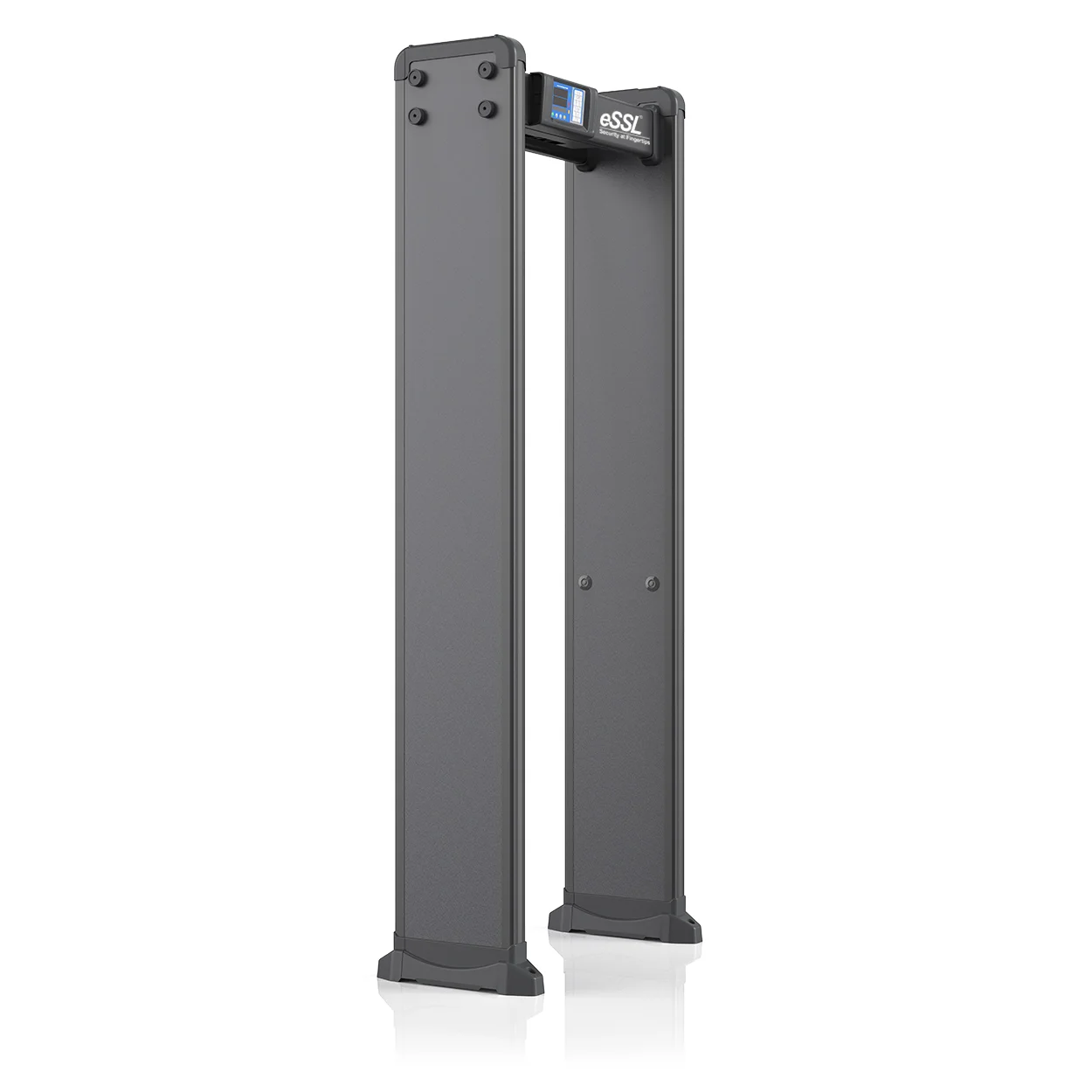

D330-18-IP65 Walk Through Metal Detector
The D330-18-IP65 is an 18-zone walk-through metal detector designed for security screening at entrances. It features adjustable detection sensitivity, zone-based alerts, an LED display and an IP65-rated enclosure for demanding environments.
Key Features of D330-18-IP65
18-Zone Detection
Zone-based detection helps security staff identify the approximate location of detected metal.
Adjustable Sensitivity
Adjustable sensitivity settings help tailor screening to the installation requirements.
LED Display
Digital display provides visible screening information, including pass and alarm counts.
IP65 Protection
IP65-rated enclosure offers protection against dust and water jets under specified conditions.
Alarm Monitoring
Audible alarms and visual zone indications assist security staff during screening.
Entrance Security
Designed for pedestrian screening at entrances and security checkpoints.
Technical Specifications of D330-18-IP65
| Specification | Details |
|---|---|
| Model | D330-18-IP65 |
| Product Type | Walk Through Metal Detector |
| Detection Zones | 18 zones |
| Protection Rating | IP65 |
| Material | ABS |
| Operating Frequency | 0–99 |
| Net Weight | 35 kg |
| Gross Weight | 42 kg |
| External Dimensions | 2191 × 875 × 446 mm |
| Passage Dimensions | 2007 × 720 × 446 mm |
| Operating Temperature | -20°C to 65°C |
| Operating Humidity | Up to 99%, non-condensing |
| Power Input | AC 100–240 V, 50–60 Hz |
| Sensitivity Adjustment | 0–400 |
| Volume Adjustment | 0–50 |
| Alarm Duration | 0–3 seconds |
| Display | 5-digit, 7-segment LED display |
Frequently Asked Questions
What is the D330-18-IP65 metal detector?
The D330-18-IP65 is a walk-through metal detector designed to screen people at entrances and security checkpoints.
What does 18-zone detection mean?
It refers to zone-based detection that helps indicate the approximate area where metal has been detected.
Is the D330-18-IP65 suitable for outdoor use?
The unit has an IP65 protection rating. Confirm installation conditions and environmental suitability with CDN TECHNOLOGIES before purchase.
Can the detection sensitivity be adjusted?
Yes, sensitivity settings can be adjusted to suit the screening environment and security requirements.
Where can I enquire about this product?
Contact CDN TECHNOLOGIES through the contact page or WhatsApp button for pricing, availability and product guidance.
Get in Touch for Product Enquiry
Contact CDN TECHNOLOGIES for product details, pricing and assistance with the D330-18-IP65 Walk Through Metal Detector.
