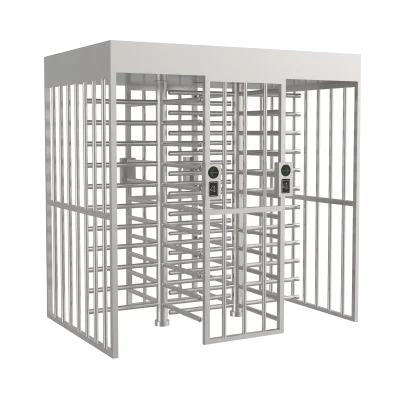

FHT-TL-232 Full Height Turnstile – Double Door
The FHT-TL-232 Full Height Turnstile is designed to manage pedestrian entry and exit at secured premises and high-security access points. Its double-door configuration and full-height rotating barriers create two controlled passageways to help prevent unauthorized entry.
Constructed from SUS304 stainless steel, the FHT-TL-232 features a stable mechanical locking mechanism, one-way or two-way traffic operation, and a power-off opening function. Its 650 mm passage width and 30-person-per-minute pass rate support organized pedestrian movement.
FHT-TL-232 Full Height Turnstile Features
Explore the key construction, mechanical locking, access-control and safety functions of the FHT-TL-232.
SUS304 Stainless Steel Construction
The frame is made from SUS304 stainless steel for a robust structure in demanding pedestrian access-control installations.
Double Passage Design
The full-height double-door configuration provides two controlled passageways for managing pedestrian movement.
Fast 0.2-Second Unlock Time
The manufacturer lists an unlock time of 0.2 seconds to support responsive access-control operation.
Anti-Reverse Protection
The anti-reverse mechanism helps prevent the rotating assembly from moving against the permitted direction of passage.
Power-Off Emergency Opening
During a power failure or emergency, the locking mechanism can switch to free-passage mode to support evacuation.
Passage Delay and Memory Mode
The control-panel DIP switch supports passage-delay adjustment and memory mode for managing valid card reads and pedestrian flow.
FHT-TL-232 Technical Specifications
Review the manufacturer-listed dimensions, power requirements and performance specifications.
| Product Model | FHT-TL-232 |
|---|---|
| Product Type | Full Height Turnstile – Double Door |
| Frame Material | SUS304 Stainless Steel |
| Product Size (L × W × H) | 2200 × 1500 × 2200 mm |
| Passage Width | 650 mm |
| Unlock Time | 0.2 seconds |
| Pass Rate | 30 persons per minute |
| Input Voltage | 100–240V AC |
| Driving Voltage | 24V |
| Power Consumption | 30W |
| Input Signal | Dry contact |
| Operating Temperature | -15°C to +55°C |
| Traffic Direction | One-way or two-way operation |
| Emergency Function | Power-off opening to allow free passage in an emergency |
| Direction Indicator | Two-way arrow indicator |
| Passage Delay Adjustment | Adjustable through the control-panel DIP switch |
| Memory Mode | Supported; valid card reads can be stored according to configuration |
| Anti-Reverse Device | Supported |
| Access Permission Reset | Unused access permission is automatically cancelled after the configured period |
| Locking Mechanism | Mechanical locking device with a turntable combination structure |
Frequently Asked Questions
Common questions about the FHT-TL-232 Full Height Turnstile.
What is the FHT-TL-232 Full Height Turnstile?
The FHT-TL-232 is a full-height double-door turnstile designed to regulate pedestrian entry and exit at secured premises and restricted-access facilities.
What are the dimensions of the FHT-TL-232?
The manufacturer's product page lists dimensions of 2200 × 1500 × 2200 mm and a passage width of 650 mm.
What is the pass rate of this turnstile?
The published pass rate is 30 persons per minute. Actual throughput depends on pedestrian behaviour and the way the entry lanes are used.
Can the FHT-TL-232 operate in both directions?
Yes. The manufacturer lists both one-way and two-way traffic operation, configured for the site's access-control requirements.
What happens during a power failure?
The power-off opening function changes the locking mechanism to free-passage mode during an emergency. Confirm the intended operation against the site's emergency and fire-safety requirements.
Does the FHT-TL-232 support anti-reverse protection?
Yes. Its anti-reverse device is designed to prevent the rotating unit from moving in the opposite direction to the permitted passage direction.
What are memory mode and passage-delay adjustment?
The control-panel DIP switch supports adjustment of passage delay and memory mode. For example, configured memory mode may allow multiple valid card reads for a matching number of pedestrian passages.
