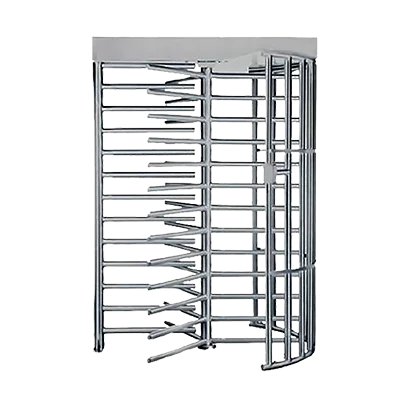

FHT-TL-139 Full Height Turnstile – Single Door
The FHT-TL-139 Full Height Turnstile is designed to control pedestrian entry and exit at secured premises and restricted-access areas. Its full-height structure and three-arm rotor help create a defined passage and discourage unauthorized bypassing.
Built with a corrosion-protected stainless steel frame, this turnstile features a DC electromagnetic drive, adjustable hydraulic damper and configurable passage modes. RS485 or TCP/IP communication allows integration with compatible access control equipment.
FHT-TL-139 Full Height Turnstile Features
Explore the construction, rotor mechanism, access control integration and configurable operating modes.
Corrosion-Protected Stainless Steel
The stainless steel frame uses corrosion protection and heavy-gauge construction for demanding access-control installations.
Full Height Single-Door Design
The tall turnstile structure forms a defined pedestrian passage and helps deter unauthorized bypassing.
Three-Arm Rotor Mechanism
The three-arm rotor uses a 120-degree section design to regulate movement through the turnstile.
RS485 and TCP/IP Communication
Communication options allow the turnstile to connect with compatible access control systems and equipment.
Adjustable Hydraulic Damper
The adjustable hydraulic damper helps control rotor movement as pedestrians pass through the access lane.
Configurable Passage Modes
Supports single passage in a set direction, bidirectional single passage, free passage and always-free or locked modes.
FHT-TL-139 Technical Specifications
Review the manufacturer-listed dimensions, power requirements, communication options and operating specifications.
| Product Model | FHT-TL-139 |
|---|---|
| Product Type | Full Height Turnstile – Single Door |
| Dimensions (L × W × H) | 1630 × 1500 × 2310 mm |
| Net Weight | 220 kg |
| Passage Width | Less than 650 mm |
| Frame Material | Corrosion-protected stainless steel |
| Number of Arms | 3 arms |
| Section Version | 120 degrees |
| Drive Type | DC electromagnetic drive |
| Power Supply | 100–240V AC |
| Control Circuit | 24V DC |
| Power Consumption | 30W |
| Operating Temperature | -25°C to +70°C |
| Humidity | Up to 95%, as specified by the manufacturer |
| Protection Level | Manufacturer-listed notation: greater than 44 |
| Mean Cycles Between Failures (MCBF) | 5 million cycles |
| Hydraulic Damper | Adjustable |
| Solenoid | 24V DC, 100% |
| Communication Interface | RS485 or TCP/IP |
| Frequency | Manufacturer-listed notation: less than 50Hz or 60Hz |
| Closing Delay | Adjustable from 1 to 60 seconds after a valid card reading |
| Passage Modes | Single passage in set direction, bidirectional single passage, free passage, always free or locked |
| Optional Reader Equipment | IC/ID card reader, barcode reader and other compatible read/write equipment |
| Additional Optional Equipment | UPS and infrared detector |
| Frame Protection | Waterproof seal |
Frequently Asked Questions
Common questions about the FHT-TL-139 Full Height Turnstile.
What is the FHT-TL-139 Full Height Turnstile?
The FHT-TL-139 is a single-door full height turnstile designed to control pedestrian entry and exit at secured premises and restricted-access facilities.
What are the dimensions of the FHT-TL-139?
The manufacturer's page lists dimensions of 1630 × 1500 × 2310 mm and a net weight of 220 kg.
How many arms does the FHT-TL-139 have?
The specifications list three arms and a 120-degree section version.
What is the passage width of this turnstile?
The published passage width is less than 650 mm. Confirm the actual passage dimensions before finalizing the installation.
Which communication interfaces are available?
The manufacturer lists RS485 or TCP/IP communication for integration with compatible access control equipment.
Can the turnstile operate in both directions?
Yes. The listed operating modes include single passage in a set direction and bidirectional single passage. Free passage and always-free or locked modes are also supported.
Which access control devices can be connected?
Optional equipment includes IC/ID card readers, barcode readers and other compatible read/write devices. UPS and infrared detectors are also listed as optional equipment.
How can I enquire about the FHT-TL-139?
Contact CDN Technologies through the website enquiry page or WhatsApp to ask about pricing, availability, access-control integration and installation requirements.
