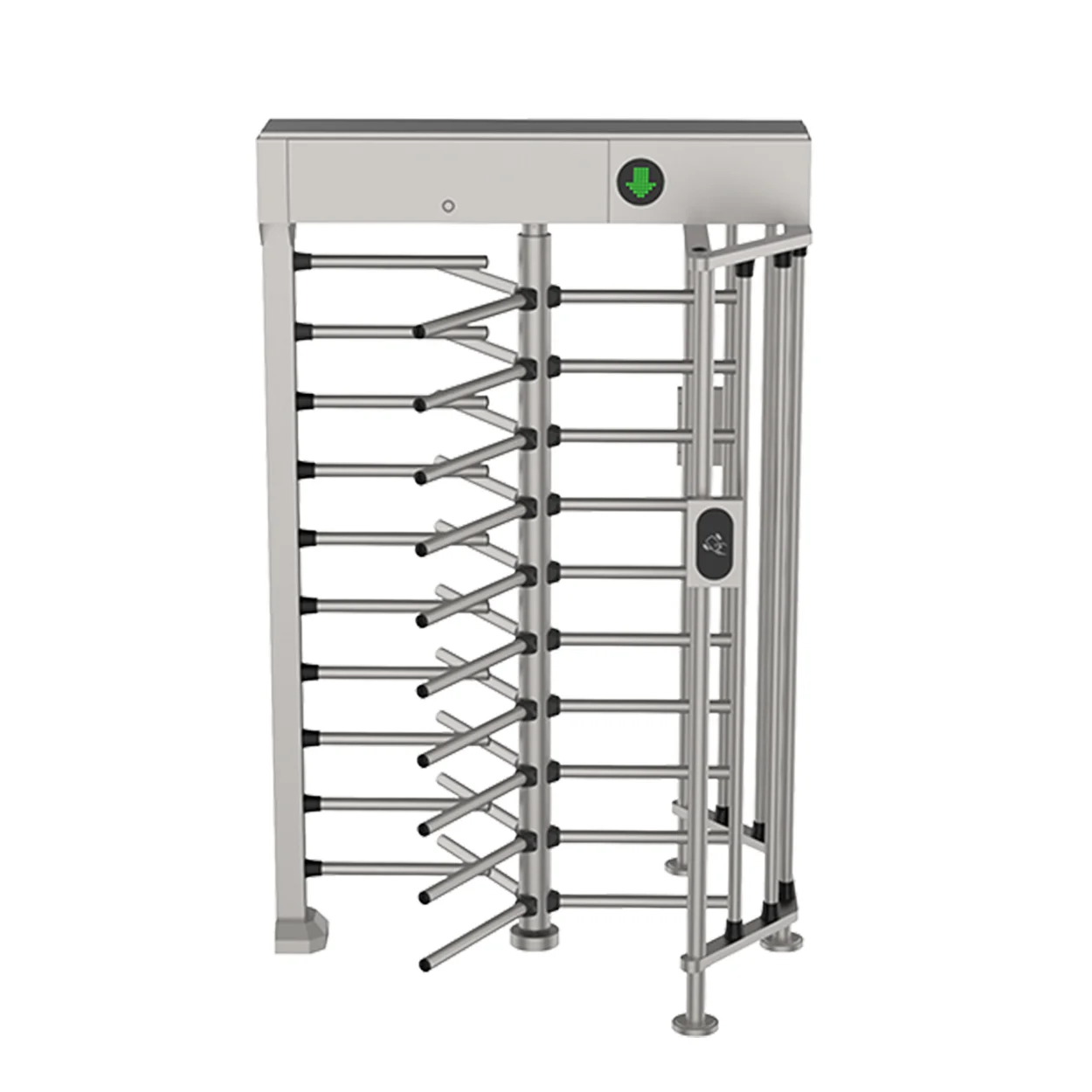

FHT-TL-537 Full Height Turnstile
The FHT-TL-537 Full Height Turnstile is designed to regulate pedestrian entry and exit at secured facilities, industrial premises and restricted-access areas. Its full-height structure helps prevent unauthorized bypassing, while its molded turnstile movement supports smooth operation and long service life.
Constructed with a SUS304 stainless steel body and fence, the FHT-TL-537 offers a 600 mm passage width and a listed throughput of 35–50 persons per minute. It supports compatible IC/ID cards, scanning and face-recognition systems, along with automatic power-off opening for emergency passage.
FHT-TL-537 Full Height Turnstile Features
Explore the construction, pedestrian control, reader compatibility and safety features of the FHT-TL-537.
SUS304 Stainless Steel Construction
The body uses 1.2 mm SUS304 stainless steel, while the fence uses 1.0 mm SUS304 stainless steel.
Full Height Pedestrian Control
The full-height frame creates a defined access passage to help restrict unauthorized entry and bypassing.
35–50 Persons per Minute
The manufacturer lists a throughput rate of 35–50 persons per minute to support pedestrian flow at controlled entrances.
Multiple Access Methods
Compatible with IC cards, ID cards, scanning and face-recognition systems when connected with suitable equipment.
Automatic Power-Off Opening
The turnstile is designed to open automatically during a power failure to help provide emergency passage.
Anti-Tailgating and Infrared Anti-Clip
Listed functions include anti-tailgating, anti-reverse passage, infrared anti-clipping and automatic reset.
FHT-TL-537 Technical Specifications
Review the official product dimensions, materials, electrical details and operating specifications.
| Product Model | FHT-TL-537 |
|---|---|
| Product Type | Full Height Turnstile |
| Dimensions (L × W × H) | 1400 × 1300 × 2230 mm |
| Passage Width | 600 mm |
| Power Consumption | 50W |
| Body Material and Thickness | SUS304 stainless steel, 1.2 mm |
| Fence Material and Thickness | SUS304 stainless steel, 1.0 mm |
| Movement | Molded full-height turnstile movement |
| Sensor | Limited sensor |
| Indicator Light | Dynamic indicator light |
| Drive Unit | Anti-burn solenoid |
| Power Supply | 24V, 150W |
| Control Unit | Main board |
| Communication Interface | Dry contact and RS485 |
| Pass Rate | 35–50 persons per minute |
| Operating Temperature | -20°C to +70°C |
| Operating Humidity | ≤90%, without condensation |
| Protection Rating | IP4X |
| Installation Environment | Indoor and outdoor |
| Emergency Function | Automatic opening under power-off conditions for emergency passage |
| Anti-Tailgating | Supported |
| Anti-Reverse Passage | Supported |
| Infrared Anti-Clipping | Supported |
| Automatic Reset | Returns to the locked state if access is not completed within the configured time |
| Card Memory | Memory and non-memory modes |
| Access Compatibility | IC cards, ID cards, scanning and face recognition with compatible equipment |
| Operating Modes | Open or closed modes; one-way or two-way card reading |
Frequently Asked Questions
Common questions about the FHT-TL-537 Full Height Turnstile.
What is the FHT-TL-537 Full Height Turnstile?
The FHT-TL-537 is a full-height pedestrian turnstile designed to control entry and exit at restricted-access facilities, industrial premises and secured entrances.
What are the dimensions of the FHT-TL-537?
The manufacturer lists dimensions of 1400 × 1300 × 2230 mm with a passage width of 600 mm.
Which materials are used in the turnstile?
The body uses 1.2 mm SUS304 stainless steel, while the fence uses 1.0 mm SUS304 stainless steel.
What is the pass rate of the FHT-TL-537?
The published throughput is 35–50 persons per minute. Actual flow depends on pedestrian behaviour, access configuration and site conditions.
Does the FHT-TL-537 support biometric access control?
It is compatible with scanning and face-recognition systems as well as IC and ID cards when used with suitable connected equipment.
What happens if the power supply fails?
The turnstile is designed to open automatically when power is lost to provide emergency passage. Confirm the installed configuration meets the site's emergency and fire-safety requirements.
Can the FHT-TL-537 be installed outdoors?
The manufacturer lists indoor and outdoor installation. Confirm site exposure and installation arrangements with the supplier before installing outdoors.
How can I enquire about the FHT-TL-537?
Contact CDN Technologies through the website enquiry page or WhatsApp to ask about pricing, availability, compatible access control equipment and installation requirements.
