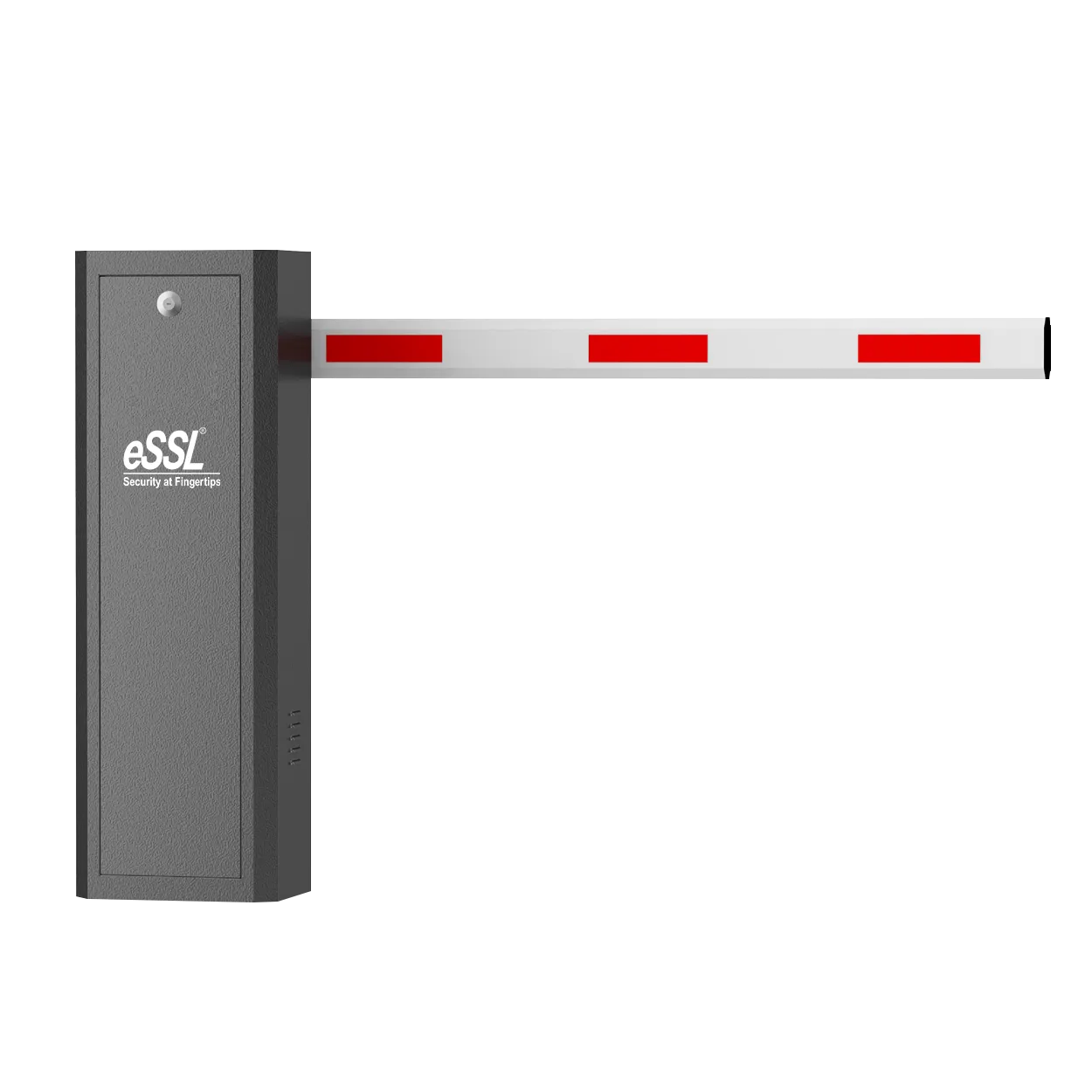

BG-DC-101 Automatic Boom Barrier with DC Brushless Motor
The BG-DC-101 is an automatic boom barrier designed to control vehicle entry and exit at parking areas, offices, residential communities and commercial facilities. It uses a 24V DC brushless motor and an electromechanical barrier mechanism.
The system supports telescopic boom configurations with listed operating times of 6 seconds for a 6-metre arm, 3 seconds for a 4-metre arm and 1.5 seconds for a 3-metre arm. It also supports compatible loop detectors, radar sensors, photocells and access control integrations.
Key Features of the BG-DC-101 Automatic Boom Barrier
Smooth vehicle flow, adjustable boom operation, safety functions and integration options for controlled vehicle access.
24V DC Brushless Motor
Uses a 24V DC brushless motor designed for stable operation, reduced operating noise and long service life.
Multiple Boom Arm Options
Supports listed 3-metre, 4-metre and 6-metre boom configurations with different operating speeds.
Safety and Reverse Functions
Includes listed reverse, auto-close and intelligent checking functions to help support safe barrier operation.
Vehicle Access Integration
Supports compatible loop detectors, radar sensors, photocells and access control devices.
Manual Operation During Power Cuts
The motorised hand wheel enables the boom to be raised or lowered manually during a power outage.
Outdoor-Ready Cabinet
The cabinet uses electrophoresis treatment followed by powder coating and has a listed IP54 rating.
BG-DC-101 Technical Specifications
Review the motor, power requirements, boom arm options, protection rating and operating specifications.
| Product Model | BG-DC-101 |
|---|---|
| Product Type | Automatic Electromechanical Boom Barrier |
| Motor Type | 24V DC Brushless Motor |
| Power Supply | 220V AC, 60Hz |
| Operational Voltage | 24V DC |
| Maximum Power Consumption | 120W |
| Boom Arm and Operating Speed | 6 metres: 6 seconds; 4 metres: 3 seconds; 3 metres: 1.5 seconds |
| Listed Fastest Operating Speed | As fast as 1.2 seconds, subject to configuration |
| Boom Arm Type | 6-metre telescopic boom; listing describes 3.6-metre straight section plus 2.7-metre extension |
| Barrier Mechanism | Supported by 2 springs |
| Reverse Function | Supported |
| Auto-Close Function | Supported |
| Intelligent Checking | Supported |
| External Interfaces | Loop Detector, Radar Sensor, Photocell and Access Controller |
| Optional Integration | UHF Readers and RS485 |
| Cabinet Protection | IP54 |
| Operating Humidity | 10% to 90%, non-condensing |
| Operating Temperature (Listing Entry 1) | -35°C to 70°C |
| Working Temperature (Listing Entry 2) | -20°C to 80°C |
| Barrier Dimensions | 348 × 248 × 1060 mm |
| Barrier Weight | 45 kg |
| Remote Control Range | Up to approximately 20 metres |
| MCBF | 2 million cycles |
| Manual Operation | Motorised hand wheel for raising or lowering the boom during power failure |
| Cabinet Finish | Electrophoresis treatment and powder coating |
Note: The official product listing gives two different temperature ranges: -35°C to 70°C and -20°C to 80°C. Confirm the applicable temperature range with the supplier before ordering. Operating speeds may depend on the selected boom arm and configuration. Verify the listed 220V, 60Hz electrical requirement for your installation.
Frequently Asked Questions
Common questions about the BG-DC-101 Automatic Boom Barrier.
What is the BG-DC-101 Boom Barrier?
The BG-DC-101 is an automatic electromechanical boom barrier using a 24V DC brushless motor to control vehicle entry and exit at compatible sites.
Which boom arm lengths are available?
The published specifications list 3-metre, 4-metre and 6-metre configurations with different operating times.
How fast does the BG-DC-101 operate?
The listing gives 1.5 seconds for a 3-metre arm, 3 seconds for a 4-metre arm and 6 seconds for a 6-metre arm. It also mentions a fastest speed of 1.2 seconds. Confirm the applicable speed for your setup.
Does the barrier support safety functions?
The manufacturer lists reverse, auto-close and auto-intelligent checking functions.
Can the BG-DC-101 connect to a radar sensor?
Yes. Radar sensors, loop detectors, photocells and access controllers are listed as supported external integration options.
Can the boom be operated during a power cut?
The barrier includes a motorised hand wheel that allows the boom to be raised or lowered manually during a power outage.
Is the BG-DC-101 suitable for outdoor installations?
The cabinet has an IP54 rating and a powder-coated finish. Confirm the site's environmental conditions and the correct operating temperature range before installation.
How can I enquire about the BG-DC-101 price?
Contact CDN Technologies for pricing, availability, boom arm options and guidance on compatibility with your vehicle access control system.
