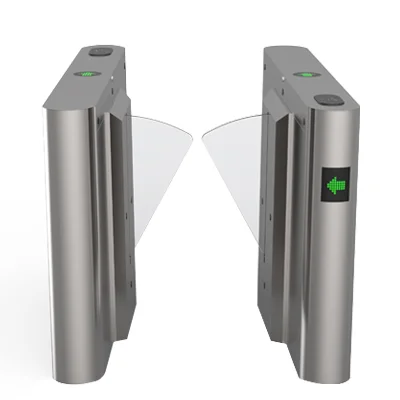

FB-Y-1000 Single Lane Flap Barrier
The FB-Y-1000 is a single-lane flap barrier designed to manage pedestrian entry and exit at controlled access points. Its SUS304 stainless-steel construction and brushless DC motor support regular access-control operation in commercial and institutional environments.
With six pairs of infrared sensors, a listed passage width of 550 mm and a throughput of up to 35 persons per minute, the FB-Y-1000 supports organised pedestrian movement. Features include automatic reset, anti-tailgating, anti-reverse passage and infrared anti-clip protection.
FB-Y-1000 Key Features
Pedestrian access-control features designed to support smooth operation and controlled entry at secured premises.
SUS304 Stainless-Steel Body
Features a SUS304 stainless-steel body, with listed thicknesses of 1.2 mm and 1.0 mm, for a robust pedestrian access-control unit.
550 mm Passage Width
The listed passage width is 550 mm, providing a defined pedestrian lane for controlled entry and exit.
Six Pairs of Sensors
Six pairs of sensors help detect pedestrian passage and support the barrier's access-monitoring and anti-clip functions.
Anti-Tailgating and Anti-Reverse
Includes anti-tail and anti-reverse passage functions to help reduce unauthorised movement through the controlled access lane.
Infrared Anti-Clip Protection
Infrared anti-clip protection is designed to help prevent the flaps from closing on a person while the gate is open or moving.
Automatic Opening During Power Failure
The product includes an automatic opening function under power-off conditions to support emergency passage requirements.
FB-Y-1000 Technical Specifications
Review the listed dimensions, power requirements, sensor configuration and operating conditions.
| Product Model | FB-Y-1000 |
|---|---|
| Product Type | Single Lane Flap Barrier |
| Material | 1.2 mm / 1.0 mm SUS304 Stainless Steel |
| Dimensions (L × W × H) | 1400 × 280 × 950 mm |
| Sensor Pairs | 6 pairs |
| Pass Rate | Up to 35 persons per minute |
| Pass Width | 550 mm |
| Input Voltage | 100–240 V AC |
| Motor Type | DC Brushless Motor |
| Power Supply | 24 V, 150 W |
| Net Weight | 60 kg |
| Operating Environment Temperature | -20°C to +70°C |
| IP Rating | IP56 (shown as “56” on the manufacturer listing) |
| MCBF | 5 million cycles |
| Power-Off Function | Automatic gate opening under power-off conditions |
| Anti-Tail Function | Supported |
| Anti-Reverse Passage | Supported |
| Infrared Anti-Clip Function | Supported while the gate is open or moving |
| Automatic Reset | Returns to locked state if authorised passage is not completed within the configured time |
| Card Memory Modes | With-memory and without-memory options |
| Operating Modes | Open or closed |
| Card Reading Modes | One-way or two-way card reading |
| Compatible Access Methods | IC card, ID card, scanning and face recognition |
Frequently Asked Questions
Common questions about the FB-Y-1000 single-lane flap barrier.
1. What is the FB-Y-1000 flap barrier?
The FB-Y-1000 is a single-lane flap barrier designed to control pedestrian entry and exit at secured access points.
2. What are the dimensions of the FB-Y-1000?
The manufacturer lists dimensions of 1400 × 280 × 950 mm and a passage width of 550 mm.
3. How many sensor pairs does it have?
The FB-Y-1000 is listed with six pairs of sensors to support passage detection and anti-clip operation.
4. What is the passage rate of this model?
The listed passage rate is up to 35 persons per minute. Actual throughput depends on the access configuration, reader response and pedestrian movement.
5. Does the FB-Y-1000 support multiple access methods?
Yes. The manufacturer lists compatibility with IC cards, ID cards, scanning and face-recognition systems. The final reader and controller setup depends on the installation.
6. What happens if the power supply fails?
The manufacturer lists an automatic gate-opening function under power-off conditions to support emergency passage. Confirm the installation's emergency requirements before deployment.
7. Does the FB-Y-1000 support anti-tailgating?
Yes. The listed features include anti-tail, anti-reverse passage, automatic reset and infrared anti-clip functions to support controlled pedestrian access.
