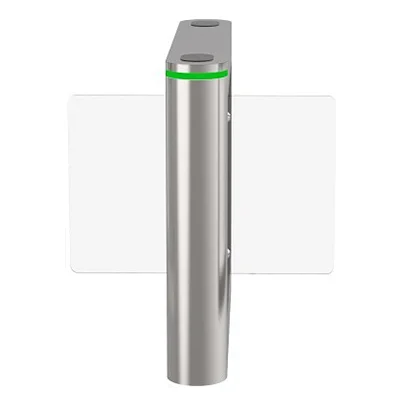

SB-ES-3012-2 Multi Lane Swing Barrier
The SB-ES-3012-2 Multi Lane Swing Barrier is designed to help manage pedestrian access through controlled entrances and exits. Its brushed motor, four pairs of infrared sensors and compact stainless steel construction support organized pedestrian movement in access-controlled environments.
Featuring a 600 mm passage width, a transparent acrylic barrier arm and a listed operating time of 0.2 seconds, the SB-ES-3012-2 is designed for facilities that require reliable pedestrian access management. Multiple units can be configured to create separate access lanes according to the site layout.
SB-ES-3012-2 Swing Barrier Features
Explore the materials, operating performance and sensor features of the SB-ES-3012-2 pedestrian barrier.
SUS 304 Stainless Steel Body
The body is made from 1.0 mm SUS 304 stainless steel, with a 1.2 mm SUS 304 stainless steel top cover.
Transparent Acrylic Barrier Arm
The barrier arm uses 10 mm transparent acrylic, providing a clear visual separation for pedestrian lanes.
0.2-Second Operating Time
The manufacturer lists an operating time of 0.2 seconds for responsive movement at controlled entrances.
Four Pairs of Infrared Sensors
The four sensor pairs help detect pedestrian passage and support the operation of the swing barrier system.
Compact Passage Design
The specified unit size is 1200 × 185 × 980 mm, with a 600 mm pass width for a defined pedestrian lane.
Long-Cycle Performance
The manufacturer lists a mean cycles between failures (MCBF) figure of 5,000,000 cycles.
SB-ES-3012-2 Technical Specifications
Review the published dimensions, construction materials, power requirements and operating conditions.
| Product Model | SB-ES-3012-2 |
|---|---|
| Product Type | Multi Lane Swing Barrier |
| Product Size (L × W × H) | 1200 × 185 × 980 mm |
| Pass Width | 600 mm |
| Net Weight | 65 kg |
| Body Material | 1.0 mm SUS 304 stainless steel |
| Body Thickness | 1.0 mm |
| Top Cover Material | 1.2 mm SUS 304 stainless steel |
| Arm Material | 10 mm transparent acrylic |
| Driver | Brushed motor |
| Infrared Sensors | 4 pairs |
| Operating Time | 0.2 seconds |
| Pass Rate | 20–35 persons per minute |
| Power Supply | 100–240V AC |
| Operational Voltage | 24V DC |
| Maximum Power Consumption | 35W |
| Frequency | 50–60 Hz |
| Working Temperature | -25°C to +70°C |
| MCBF | 5,000,000 cycles |
Frequently Asked Questions
Common questions about the SB-ES-3012-2 Multi Lane Swing Barrier.
What is the SB-ES-3012-2 Swing Barrier?
The SB-ES-3012-2 is a multi-lane swing barrier model designed to manage controlled pedestrian entry and exit at access-controlled facilities.
What is the passage width of the SB-ES-3012-2?
The manufacturer's specifications list a 600 mm pass width per barrier unit.
Which materials are used in the SB-ES-3012-2?
The body uses 1.0 mm SUS 304 stainless steel, the top cover uses 1.2 mm SUS 304 stainless steel, and the barrier arm is made from 10 mm transparent acrylic.
How many infrared sensors does it have?
The product specifications list four pairs of infrared sensors.
What is the operating time of this swing barrier?
The manufacturer lists an operating time of 0.2 seconds. Actual pedestrian throughput can depend on operating conditions and user behaviour.
What is the pass rate of the SB-ES-3012-2?
The listed pass rate is 20–35 persons per minute. Actual throughput depends on the entrance layout and pedestrian flow.
What are the power requirements?
The product lists a 100–240V AC power supply, 24V DC operational voltage, 35W maximum power consumption and a frequency of 50–60 Hz.
How can I enquire about the SB-ES-3012-2?
Contact CDN Technologies through the website enquiry page or WhatsApp to ask about price, availability and the suitable configuration for your access control installation.
Get in Touch for Product Enquiry
Have questions about the SB-ES-3012-2 Multi Lane Swing Barrier? Contact CDN Technologies for pricing, availability and help with your pedestrian access control requirements.
