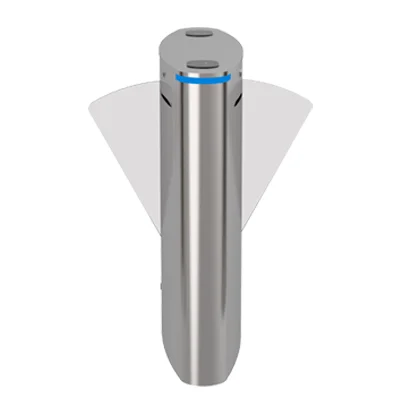

FB-E-1200 Multi-Lane Flap Barrier
The FB-E-1200 is a multi-lane flap barrier designed to manage pedestrian entry and exit at controlled access points. Its 2.0 mm SUS304 stainless-steel construction provides a robust housing for entrances in offices, commercial premises and other controlled facilities.
The system features three pairs of sensors, a 550 mm passage width and a DC brushless motor. Anti-tailgating, anti-reverse passage, infrared anti-clip and automatic reset functions support organised pedestrian movement.
FB-E-1200 Key Features
Pedestrian access-control features designed for controlled entry, safety and smoother movement at access points.
SUS304 Stainless-Steel Body
Made with 2.0 mm SUS304 stainless steel to provide a robust enclosure for regular pedestrian access-control operation.
550 mm Passage Width
Provides a listed passage width of 550 mm for controlled single-lane pedestrian movement through the barrier.
Three Pairs of Sensors
Three sensor pairs help monitor passage through the barrier and support its detection and safety functions.
Anti-Tail and Anti-Reverse
Supports anti-tailgating and anti-reverse passage functions to help enforce access rules and reduce unauthorised movement through the lane.
Infrared Anti-Clip Protection
Infrared anti-clip protection is designed to help reduce the risk of the flaps closing on a person while the gate is open or moving.
Automatic Power-Off Opening
The barrier is listed with automatic opening under power-off conditions to support emergency passage requirements.
FB-E-1200 Technical Specifications
Review the manufacturer's listed dimensions, electrical requirements and operating features.
| Product Model | FB-E-1200 |
|---|---|
| Product Type | Multi-Lane Flap Barrier |
| Material | 2.0 mm SUS304 Stainless Steel |
| Dimensions | 1200 × 280 × 980 mm |
| Passage Width | 550 mm |
| Sensor Pairs | 3 pairs |
| Pass Rate | Up to 35 persons per minute |
| Input Voltage | 100–240 V AC |
| Motor Type | DC Brushless Motor |
| Power Supply | 24 V, 150 W |
| Net Weight | 45 kg |
| Operating Temperature | -20°C to +70°C |
| IP Rating | IP56 (as listed by the manufacturer) |
| MCBF | 5 million cycles (as listed) |
| Emergency Power-Off Function | Automatic gate opening under power-off conditions |
| Anti-Tail Function | Supported |
| Anti-Reverse Passage | Supported |
| Automatic Reset | Returns to the locked state if passage is not completed within the configured time |
| Infrared Anti-Clip Function | Supported when the gate is open or moving |
| Card Memory Modes | Memory and no-memory options |
| Operating Modes | Open or closed |
| Card Reading Modes | One-way or two-way card reading |
| Access-Control Compatibility | IC cards, ID cards, scanning and face recognition |
Frequently Asked Questions
Common questions about the FB-E-1200 multi-lane flap barrier.
1. What is the FB-E-1200 flap barrier?
The FB-E-1200 is a multi-lane flap barrier designed to manage pedestrian entry and exit at controlled access points.
2. What material is used in the FB-E-1200?
The manufacturer's specification lists a 2.0 mm SUS304 stainless-steel body.
3. What is the passage width?
The listed passage width is 550 mm. Confirm the required lane layout and site dimensions before installation.
4. What is the listed passage rate?
The manufacturer lists a pass rate of up to 35 persons per minute. Actual throughput depends on the access configuration, user behaviour and verification process.
5. Does the FB-E-1200 include safety sensors?
Yes. The listed configuration includes three pairs of sensors and an infrared anti-clip function. These features support detection and help reduce the risk of the flaps closing on a person.
6. What happens during a power failure?
The manufacturer lists automatic opening under power-off conditions for emergency passage. Confirm that the complete installation meets your site's emergency-access requirements.
7. Which access-control systems are compatible?
The product listing identifies compatibility with IC cards, ID cards, scanning and face-recognition systems. The required reader and controller arrangement should be confirmed for your project.
8. How can I enquire about the FB-E-1200?
Contact CDN TECHNOLOGIES through the Enquire Now button for pricing, availability and integration details. You can also use WhatsApp Enquiry to send a product-specific message.
