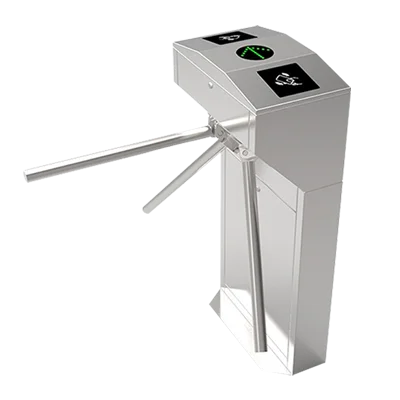

ET-1000 Heavy Duty Tripod Turnstile
The ET-1000 is a heavy-duty tripod turnstile designed to regulate pedestrian entry and exit at controlled access points. Its SS304 stainless-steel housing and electromagnetic drive support controlled passage through entrances.
With a 520 mm passage width and a listed throughput of 35 persons per minute, it can be integrated with compatible RFID and fingerprint access control systems for entry management and attendance.
Key Features of the ET-1000 Tripod Turnstile
Explore the construction, pedestrian access, operation and integration features of the ET-1000.
Heavy-Duty Tripod Design
Uses a three-arm tripod mechanism to help regulate pedestrian movement through a controlled entrance or exit point.
Single or Bi-Directional Operation
Supports single-directional and bidirectional configurations, depending on the selected mechanical or electrical version.
520 mm Passage Width
The manufacturer lists a passage width of 520 mm for controlled pedestrian movement through the tripod mechanism.
SS304 Stainless-Steel Housing
Features an SS304 stainless-steel housing with stainless-steel barrier arms, as listed in the manufacturer's specifications.
35 Persons per Minute
The official listing specifies throughput of up to 35 persons per minute. Actual passage rates depend on pedestrian flow and access settings.
RFID and Fingerprint Integration
Compatible with RFID and fingerprint readers through the listed controller configuration, supporting integrated access control and attendance applications.
ET-1000 Technical Specifications
Review the listed dimensions, electrical requirements and integration specifications before installation.
| Product Model | ET-1000 |
| Product Type | Heavy Duty Tripod Turnstile |
| Passage Width | 520 mm |
| Throughput Rate | 35 persons per minute |
| Dimensions (L × W × H) | 480 × 280 × 980 mm, excluding bar |
| Net Weight | 44 kg, including bar |
| Housing Material | SS304 stainless steel |
| Barrier Arms | Stainless steel |
| Power Supply | 100–240V AC |
| Operational Voltage | 24V |
| Maximum Power Consumption | 30W |
| Power Frequency | 50–60Hz |
| Protection Level | IP44 |
| Working Temperature | -25°C to +70°C |
| Drive Type | DC electromagnetic drive |
| Operating Modes | Semi-automatic and pure mechanical |
| Passage Direction | Single-directional / Bi-directional |
| Barrier Reset | Automatic reset after each passage |
| Timeout Delay | Adjustable |
| Mean Cycles Between Failures | 5 million cycles, as listed |
| Optional Lid | Stainless steel or artificial stone in black/brown |
| Integrated Controller | inBio-260, in listed controller configuration |
| RFID User Capacity | 30,000 users, with listed secondary controller |
| Fingerprint Capacity | 3,000 fingerprints, with listed secondary controller |
| Transaction Storage | 100,000 records, with listed secondary controller |
| Lock Relay | 12V relay, with listed secondary controller |
| Fire Alarm Support | Supported in the listed secondary-controller configuration |
| Reader Support | RFID and fingerprint readers |
| Reader Protocol | RS485; optional MIFARE/Proximity |
ET-1000 Frequently Asked Questions
Find answers to common questions about the ET-1000 Heavy Duty Tripod Turnstile.
What is the ET-1000 tripod turnstile?
The ET-1000 is a heavy-duty tripod turnstile designed to regulate pedestrian entry and exit at controlled entrances in commercial, industrial and institutional environments.
What is the passage width of the ET-1000?
The official product specifications list a passage width of 520 mm.
What is the throughput rate of the ET-1000?
The manufacturer lists throughput of 35 persons per minute. Actual flow may vary depending on pedestrian movement and access configuration.
Does the ET-1000 support bidirectional passage?
Yes. The manufacturer lists both single- and bi-directional operation for the mechanical and electrical versions.
Which material is used in the ET-1000?
The housing is listed as SS304 stainless steel, while the barrier arms are specified as stainless steel.
Can the ET-1000 work with RFID and fingerprint readers?
Yes. The official listing includes RFID and fingerprint reader integration options. The required controller and reader should be confirmed for the intended installation.
Is the ET-1000 suitable for outdoor installation?
The listed protection level is IP44. Confirm the installation environment and manufacturer guidance before using the unit outdoors or in exposed locations.
