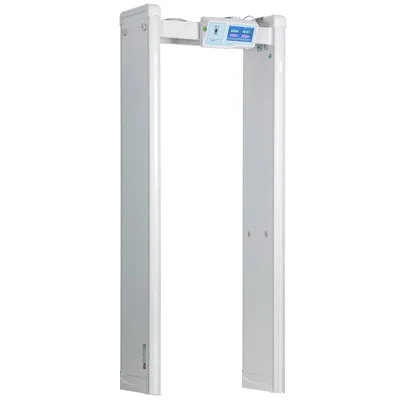

D4006 Walk Through Metal Detector
The D4006 is a walk-through metal detection system designed to support security screening at controlled entry points. It features a 6-inch LCD display, entry and exit counting, automatic adaptive diagnosis and a configurable passage width to suit different site requirements.
Key Features of D4006
The D4006 combines an LCD interface, automated diagnostics and people-counting functions to support day-to-day security screening operations.
LCD Display
The product specifications list a 6-inch LCD display for viewing system information during operation.
In and Out Counting
Entry and exit counting is available to help security staff monitor passage activity through the detector.
Automatic Adaptive Diagnosis
The adaptive diagnosis system supports automatic system checks and helps simplify routine operation.
Customisable Passage Width
The listed passage width starts at 720 mm and can be customised within the stated range of 720–1500 mm.
High-Precision Detection
Designed to help identify prohibited items, including mobile phones and metal objects, at security checkpoints.
Modular Construction
The modular design supports installation and maintenance, with high-intensity, lightweight construction materials.
Technical Specifications of D4006
Key dimensions, electrical requirements and operating details for the D4006 walk-through metal detector.
| Specification | Details |
|---|---|
| Model | D4006 |
| Product Type | Walk Through Metal Detector |
| Display | 6-inch LCD (product highlights) |
| Vertical Dimensions | 2200 × 850 × 430 mm |
| Passage Dimensions | 2000 × 720 × 430 mm |
| Customisable Passage Width | 720–1500 mm |
| Package Dimensions | 2270 × 700 × 230 mm |
| Detection Objects | Prohibited items such as mobile phones and metal objects |
| In and Out Count | Available |
| Adaptive Diagnosis System | Automatic |
| Working Humidity | Up to 99%, non-condensing |
| Working Environment Temperature | -20°C to +85°C |
| Input Power | AC 100–240 V, 50–60 Hz |
| Output | DC 12 V / 4.2 A, 12 W (as listed) |
| Net Weight | 43 kg |
| Gross Weight | 48 kg |
| Design | Modular construction |
| Maintenance | Designed for easy maintenance |
Frequently Asked Questions About D4006
Answers to common questions about the D4006 walk-through metal detector.
What is the D4006 walk-through metal detector?
Does the D4006 support people counting?
What is the display size of the D4006?
Can the D4006 passage width be customised?
What are the dimensions and weight of the D4006?
How can I enquire about the D4006 from CDN Technologies?
Get in Touch for Product Enquiry
Need a D4006 Walk Through Metal Detector for your premises? Contact CDN TECHNOLOGIES to discuss your security screening requirements and request product information.
