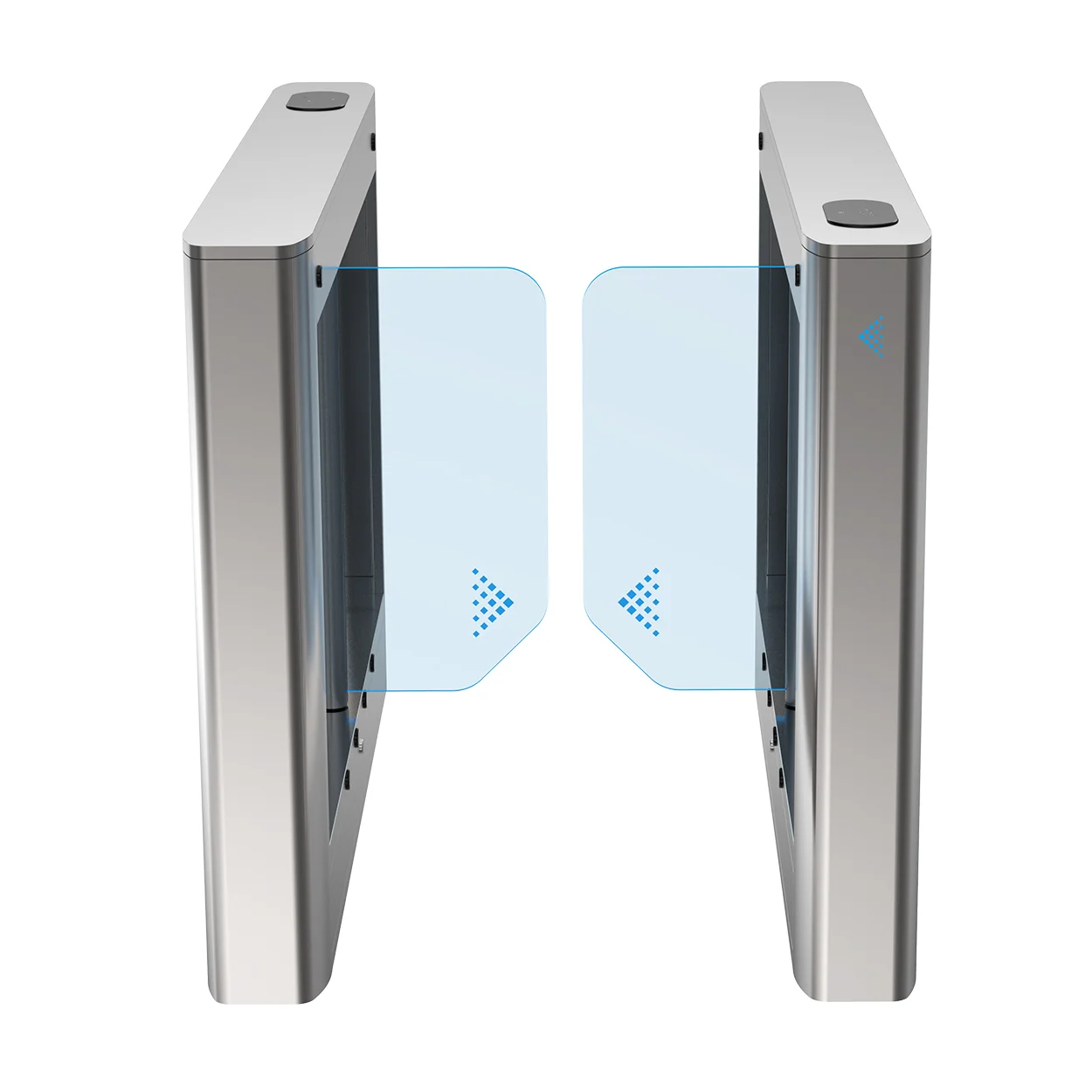

SB-ES-3216 Single Lane Swing Barrier
The SB-ES-3216 Single Lane Swing Barrier is designed to manage pedestrian access through controlled entry and exit points. Its brushless swing-brake mechanism, infrared sensors and automatic reset functionality help support smooth and organized pedestrian movement.
Built with a brushed stainless steel body and clear acrylic barrier panels, the SB-ES-3216 provides a passage width of 600–900 mm. Its configurable operating modes and support for multiple identification methods make it suitable for a variety of access control installations.
SB-ES-3216 Swing Barrier Features
Explore the main construction, access management, sensing and safety features of the SB-ES-3216.
Brushed Stainless Steel Body
The cabinet uses 304-grade brushed stainless steel, with a 1.2 mm top cover and 0.9 mm body.
Clear Acrylic Barrier Panels
The barrier design includes an 8 mm clear acrylic diaphragm and a 10 mm clear acrylic baffle.
Brushless Swing-Brake Movement
The integrated brushless movement and DC brushless motor support smooth operation with adjustable opening and closing speeds.
Six Pairs of Infrared Sensors
The six sensor pairs help monitor passage and support anti-clipping, anti-tailgating and anti-reverse functions.
Safety and Emergency Opening
The barrier features infrared anti-clipping and automatic opening during power failure to support emergency passage.
Multiple Identification Methods
Compatible with supported IC cards, ID cards, scanning and face-recognition systems, depending on the connected configuration.
SB-ES-3216 Technical Specifications
Review the manufacturer-listed dimensions, materials, power requirements and operating performance.
| Product Model | SB-ES-3216 |
|---|---|
| Product Type | Single Lane Swing Barrier |
| Dimensions (L × W × H) | 1400 × 160 × 980 mm |
| Passage Width | 600–900 mm |
| Fuselage Material | 304 brushed stainless steel; 1.2 mm top cover and 0.9 mm body |
| Diaphragm Material | 8 mm clear acrylic |
| Baffle Material | 10 mm clear acrylic |
| Movement Type | Brushless swing-brake integrated movement |
| Drive Motor | Fengdun DC brushless 90K, 30W |
| Power Supply | 24V, 150W |
| Input Voltage | AC 100–240V, 50/60Hz |
| Equipment Power | 55W |
| Pass Rate in Open Mode | Up to 50 persons per minute, as listed by the manufacturer |
| Pass Rate in Normally Closed Mode | 35 persons per minute, as listed by the manufacturer |
| Opening/Closing Speed | Adjustable from 0.5 to 1.5 seconds |
| Sensor Pairs | 6 pairs |
| Pilot Lamp | Three-colour light panel and three-colour light strip |
| Communication Mode | Dry contact |
| Control System | 12V brushless control board, electric control box and mesh board box, as described by the manufacturer |
| Operating Temperature | -20°C to +70°C |
| Noise Level | ≤65 dB |
| Operating Humidity | ≤90%, non-condensing |
| Protection Class | IP4X |
| Identification Compatibility | IC cards, ID cards, scanning and face recognition with compatible connected systems |
| Memory Settings | Card memory and non-memory modes |
| Automatic Reset | Returns to the locked state if passage does not occur within the configured time |
| Emergency Function | Automatic opening under power-failure conditions for emergency passage |
| Operating Modes | Open or closed modes; one-way or two-way card-reading configurations |
Frequently Asked Questions
Learn more about the SB-ES-3216 Single Lane Swing Barrier and its access control functions.
What is the SB-ES-3216 Swing Barrier?
The SB-ES-3216 is a single-lane pedestrian swing barrier designed to manage controlled access at entrances and exits using compatible identification systems and integrated sensors.
What is the passage width of the SB-ES-3216?
The manufacturer lists a passage width of 600–900 mm. Confirm the required configuration before ordering.
Which materials are used in this barrier?
The body uses 304-grade brushed stainless steel, with a 1.2 mm top cover and 0.9 mm body. The diaphragm is 8 mm clear acrylic, and the baffle is 10 mm clear acrylic.
What is the throughput rate of the SB-ES-3216?
The listed pass rate is up to 50 persons per minute in open mode and 35 persons per minute in normally closed mode. Actual throughput depends on operating conditions and pedestrian behaviour.
Does the SB-ES-3216 include anti-clipping protection?
Yes. The product includes an infrared anti-clipping function designed to help detect pedestrians near the moving barrier.
What happens if the power fails?
The manufacturer lists automatic opening under power-failure conditions to support emergency passage. Confirm the installation's emergency and fire-safety requirements with the supplier.
Which identification systems are compatible?
The product lists compatibility with IC cards, ID cards, scanning and face recognition. Compatibility depends on the access control readers and systems connected to the barrier.
How can I enquire about the SB-ES-3216?
Contact CDN Technologies through the website enquiry page or WhatsApp to ask about pricing, availability and the right configuration for your access control requirements.
