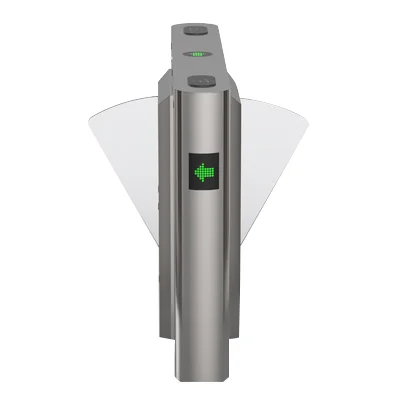

FB-Y-1200 Multi-Lane Flap Barrier
The FB-Y-1200 is a multi-lane flap barrier designed to manage pedestrian entry and exit at controlled access points. Its SUS304 stainless-steel construction and brushless DC motor support smooth, low-noise operation in busy entrance environments.
Featuring six pairs of infrared sensors, a 550 mm passage width and a listed throughput of up to 35 persons per minute, the FB-Y-1200 supports organised pedestrian movement. Anti-tailgating, anti-reverse, automatic reset and infrared anti-clip functions help manage access through the lane.
FB-Y-1200 Key Features
Reliable pedestrian access-control features for controlled entry, safety and efficient passage management.
SUS304 Stainless-Steel Construction
Built with 1.2 mm and 1.0 mm SUS304 stainless-steel components for a durable housing in regular access-control applications.
550 mm Passage Width
Provides a listed passage width of 550 mm to help define pedestrian lanes in multi-lane entrance layouts.
Six Pairs of Infrared Sensors
Six pairs of infrared sensors help monitor pedestrian passage and support the barrier's anti-clip and access-control functions.
Anti-Tail and Anti-Reverse
Anti-tail and anti-reverse passage functions help prevent unauthorised movement through the controlled access lane.
Infrared Anti-Clip Protection
Infrared anti-clip protection is designed to help reduce the risk of the flaps closing on a person while the barrier is open or moving.
Automatic Opening During Power Failure
The barrier is listed with automatic opening during power-off conditions to support emergency passage arrangements.
FB-Y-1200 Technical Specifications
Review the product's dimensions, electrical requirements, sensor configuration and operating features.
| Product Model | FB-Y-1200 |
|---|---|
| Product Type | Multi-Lane Flap Barrier |
| Material | 1.2 mm / 1.0 mm SUS304 Stainless Steel |
| Dimensions (L × W × H) | 1400 × 280 × 950 mm |
| Passage Width | 550 mm |
| Sensor Pairs | 6 pairs |
| Pass Rate | 35 persons per minute (as listed) |
| Input Voltage | 100–240 V AC |
| Motor Type | DC Brushless Motor |
| Power Supply | 24 V, 150 W |
| Net Weight | 60 kg |
| Operating Temperature | -20°C to +70°C |
| IP Rating | IP56 (listed as “56” in the manufacturer's specifications) |
| MCBF | 5 million cycles |
| Power-Off Function | Automatic opening during power-off conditions for emergency passage |
| Anti-Tail Function | Supported |
| Anti-Reverse Passage | Supported |
| Automatic Reset | Returns to the locked state if passage is not completed within the configured time |
| Infrared Anti-Clip Function | Supported while the gate is open or moving |
| Card Memory Modes | With-memory and without-memory options |
| Operating Modes | Open or closed |
| Card Reading Modes | One-way or two-way card reading |
| Access-Control Compatibility | IC cards, ID cards, scanning and face-recognition systems |
Frequently Asked Questions
Common questions about the FB-Y-1200 multi-lane flap barrier.
1. What is the FB-Y-1200 flap barrier?
The FB-Y-1200 is a multi-lane flap barrier designed to regulate pedestrian entry and exit at controlled access points.
2. What are the dimensions of the FB-Y-1200?
The manufacturer lists dimensions of 1400 × 280 × 950 mm and a passage width of 550 mm.
3. How many sensor pairs does this model have?
The FB-Y-1200 is listed with six pairs of infrared sensors to support passage monitoring and anti-clip operation.
4. What is its listed passage rate?
The manufacturer lists a pass rate of 35 persons per minute. Actual throughput depends on reader response, the access configuration and pedestrian movement.
5. Which access-control methods are compatible?
The product listing identifies compatibility with IC cards, ID cards, scanning and face-recognition systems. Confirm the required reader and controller setup for the installation.
6. What happens if the power supply fails?
The manufacturer lists automatic opening during power-off conditions to support emergency passage. Confirm the complete installation's emergency requirements before deployment.
7. Does it support anti-tailgating protection?
Yes. Its listed functions include anti-tail, anti-reverse passage, automatic reset and infrared anti-clip protection.
