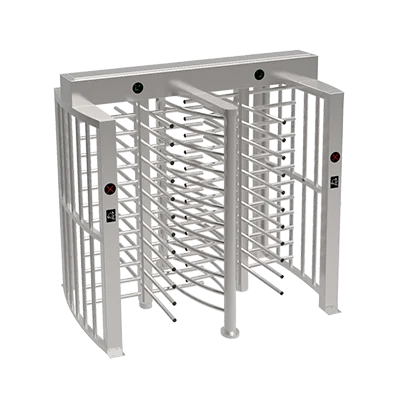

FHT-TL-249 Full Height Turnstile – Double Door
The FHT-TL-249 Full Height Turnstile is designed for controlled pedestrian entry and exit in high-security environments. Its double-door configuration and tall rotating arms help restrict unauthorized passage and reduce the risk of people bypassing the entrance control point.
Constructed with a 304 stainless steel frame, the FHT-TL-249 supports one-way or bi-directional operation and can integrate with compatible card readers, barcode readers and other access control equipment. Its power-safe design is intended to provide a free exit or entry path during a power failure.
FHT-TL-249 Full Height Turnstile Features
Explore the construction, access control options and safety features of this double-door full height turnstile.
304 Stainless Steel Frame
The stainless steel frame is designed for durability in demanding pedestrian access control installations.
Double-Door Full Height Design
The double-door arrangement provides a defined pedestrian passage with tall rotating arms to help prevent unauthorized bypassing.
One-Way or Bi-Directional Operation
Supports configured one-way or bi-directional movement according to the site's pedestrian access requirements.
Multiple Reader Options
Four card-reader locations are specified, with optional IC/ID card readers, barcode readers and other compatible read/write equipment.
Power-Safe Free Passage
The listed fault response provides a free entry or exit path during power failure, supporting emergency movement.
Integration-Friendly Controller
A programmable micro-computer controller and dry-contact or high/low-level signal inputs support integration with compatible access systems.
FHT-TL-249 Technical Specifications
Review the manufacturer's listed construction, power, operation and access-control specifications.
| Product Model | FHT-TL-249 |
|---|---|
| Product Type | Full Height Turnstile – Double Door |
| Frame Material | 304 Stainless Steel |
| Rotation Direction | Bi-directional or unidirectional |
| Controller | Programmable micro-computer controller |
| Number of Arms | 4 |
| Section Version | 90 degrees |
| Signal Source | Dry contact and high/low-level signals |
| Roller Working Power | AC 220V ±10% |
| Power Supply | AC 220V ±10%, DC 24V 3A ±10%, DC 12V 3A ±10% |
| Operating Environment | Indoor and outdoor |
| Working Temperature | -30°C to +80°C |
| Working Humidity | 5% to 90% |
| Switching Time | 1 second |
| Traffic Speed | 25 persons per minute |
| Fault Status | Power-safe with a free exit or entry path |
| MCBF | 5 million cycles |
| Frame Protection | Waterproof seal |
| Card Reader Locations | 4 |
| Installation and Maintenance Portal | 1 |
| Optional Equipment | IC/ID card reader, barcode reader, other read/write equipment, UPS and infrared detector |
Frequently Asked Questions
Common questions about the FHT-TL-249 Full Height Turnstile.
What is the FHT-TL-249 Full Height Turnstile?
The FHT-TL-249 is a double-door full height turnstile designed to control pedestrian entry and exit at secured entrances and restricted facilities.
Is the FHT-TL-249 suitable for high-security entrances?
Its full-height rotating-arm design helps restrict unauthorized passage and bypassing. Suitability depends on site security requirements and the overall access-control setup.
Which material is used in the frame?
The manufacturer's specification lists a 304 stainless steel frame.
Can the turnstile work in both directions?
Yes. The specified rotation options include bi-directional and unidirectional operation, configured for the required entry and exit flow.
Which access control devices can be integrated?
Optional equipment includes IC/ID card readers, barcode readers, other compatible read/write devices, UPS and infrared detectors. Integration depends on the equipment and controller configuration.
What happens during a power failure?
The listed fault status is power-safe with a free exit or entry path. Confirm how this function operates in the proposed configuration and whether it meets the site's emergency safety requirements.
What is the traffic speed of the FHT-TL-249?
The manufacturer's product page lists a traffic speed of 25 persons per minute. Actual throughput varies with pedestrian behaviour and the configured access process.
How can I enquire about the FHT-TL-249?
Contact CDN Technologies through the website enquiry page or WhatsApp to ask about pricing, availability, reader integration and installation requirements.
