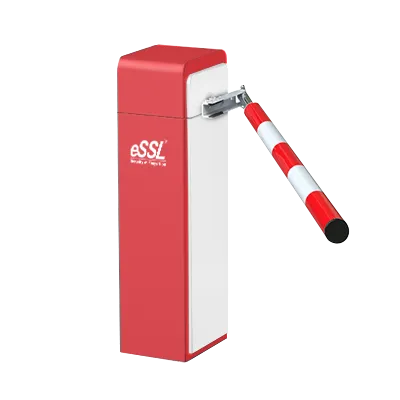

BGL-100 Automatic Boom Barrier with LED Indicator
The eSSL BGL-100 is an automatic boom barrier designed to regulate vehicle entry and exit at parking facilities, office buildings, residential communities and commercial premises. Its aluminium boom arm features red and green LED indicators to help communicate barrier status.
The manufacturer lists a maximum boom length of 5 metres and an opening or closing time of approximately 6 seconds. The barrier supports automatic and manual operation, remote control, and connections for compatible photocells, air switches and loop detectors.
Key Features of the BGL-100 Automatic Boom Barrier
LED-indicated boom arm, remote control, manual operation and sensor integration for controlled vehicle access.
5-Metre Boom Arm
Supports a maximum boom length of 5 metres with a boom rest stand for suitable installations.
Red and Green LED Indicators
The aluminium arm incorporates red and green LED indicators to communicate barrier status visually.
6-Second Operation
The listed opening and closing time is approximately 6 seconds for the specified boom configuration.
Vehicle Detection Inputs
Supports compatible photocells, air switches and loop detectors for vehicle detection integration.
Automatic and Manual Modes
Supports automatic and manual operation through the integrated control panel and remote control.
IP54 Protection
The IP54-rated enclosure is designed to protect against dust ingress and water splashes.
BGL-100 Technical Specifications
Review the boom arm, LED indication, operating time, connectivity and environmental specifications.
| Product Model | BGL-100 |
|---|---|
| Product Type | Automatic Boom Barrier with LED Indicator |
| Maximum Boom Length | 5 metres |
| Boom Arm Material | Aluminium with Red and Green LED Indication |
| Opening / Closing Time | 6 seconds |
| Boom Rest Stand | Yes |
| Input Control Signal | Dry Contact |
| Ingress Protection | IP54 |
| Input Interfaces | Photocell, Air Switch and Loop Detector |
| LED Indicator | Red / Green |
| Optional Interfaces | Access Control Panel, Standalone Access Control and Control Button |
| Remote Control Range | Up to 25 metres |
| Operating Mode | Automatic / Manual |
| Built-In Control Panel | STOP, UP and DOWN Push Buttons |
| Bumping Bounce-Back | Optional |
| Power Supply | SMPS Input: AC 220V / 110V, 50Hz / 60Hz |
| Motor Power | 90W, 240V AC (as listed) |
| Dimensions (L × W × H) | 268 × 348 × 1050 mm |
| Operating Temperature | -20°C to +50°C |
Note: Specifications are based on the manufacturer's published BGL-100 listing and may change without notice. Confirm the electrical configuration, boom length and optional safety functions with the supplier before ordering.
Frequently Asked Questions
Common questions about the BGL-100 Automatic Boom Barrier.
What is the BGL-100 Boom Barrier?
The BGL-100 is an automatic boom barrier with an aluminium arm featuring red and green LED indicators, designed to regulate vehicle entry and exit.
What is the maximum boom length?
The manufacturer's published specification lists a maximum boom length of 5 metres.
How long does the barrier take to open or close?
The listed opening and closing time is approximately 6 seconds.
What is the remote control range?
The product listing specifies a remote control range of up to 25 metres.
Which vehicle detection sensors are supported?
The BGL-100 listing includes inputs for compatible photocells, air switches and loop detectors.
Can the BGL-100 operate in manual mode?
Yes. The barrier supports automatic and manual modes, with STOP, UP and DOWN buttons on its integrated control panel.
Does the BGL-100 have safety features?
The listing includes IP54 protection and an optional bumping bounce-back function. Compatible safety sensors can be integrated as part of the installation.
How can I enquire about the BGL-100 price?
Contact CDN Technologies for pricing, availability, boom arm details and compatibility with your vehicle access control installation.
