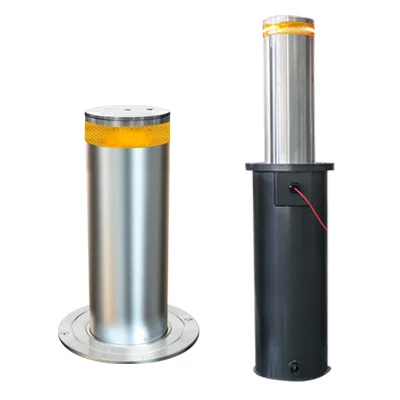

HB-426 Hydraulic Bollard

The HB-426 is a hydraulic security bollard designed to control vehicle access at protected entrances. It combines an electromechanical and hydraulic drive system with IP68 protection, reflective warning film and LED warning lights.

Contact CDN TECHNOLOGIES for product enquiries and availability.

Enquire Now WhatsApp Enquiry

Key Features of HB-426 Hydraulic Bollard

Designed for vehicle access control with hydraulic operation, high load resistance and visible safety warnings.

Hydraulic Operation

Uses an electromechanical and hydraulic integrated drive system to raise and lower the bollard.

IP68 Protection

The bollard has an IP68 protection rating for demanding outdoor security installations.

4-Second Running Speed

The listed running speed is 4 seconds, supporting responsive vehicle access control.

304 Stainless Steel Column

The cylinder uses 304 stainless steel, with selectable wall thicknesses of 6 mm, 8 mm or 10 mm.

50-Ton Passing Pressure

The specified maximum passing pressure is 50 tonnes for vehicle access protection applications.

LED and Reflective Warnings

Includes standard LED warning lights and 3M reflective film to improve bollard visibility.

Technical Specifications of HB-426 Hydraulic Bollard

Technical specifications of the HB-426 bollard and its compatible HBC-600 control unit.

Model HB-426

Product Type Hydraulic Bollard

Working Power Supply AC 220V

Drive Mode Electromechanical and hydraulic electrical integration

Working Temperature -30°C to +55°C

Protection Class IP68

Running Speed 4 seconds

Emergency Mode Manual up/down; optional battery up/down

Maximum Thrust 200 kg

Standard Column Height 600 mm

Customizable Column Height 800 mm to 1000 mm

Standard Cylinder Diameter 220 mm

Customizable Cylinder Diameter 270 mm

Column Wall Thickness 6 mm, 8 mm or 10 mm

Cylinder Material 304 stainless steel tube

Foundation Box Material Q235 steel

Anti-Corrosion Process Electrophoresis and plastic spraying

Maximum Passing Pressure 50 tonnes

Reflective Warning 3M reflective film, 50 mm wide

Warning Light LED lamp beads, standard configuration

Optional Accessories Anti-collision rubber coating and LED light strip

Compatible Control Unit HBC-600

Control Unit Input Power AC 220V

Control Unit Output Voltage DC 36V

Control Unit Protection Class IP54

Remote Control Distance At least 50 metres

Control Capacity Configurations for 2, 4 or 6 bollards

Control Modes Remote control and manual button box

System Interfaces Ground-sense coil, infrared sensor and TCP/IP interface

Frequently Asked Questions

What is the HB-426 Hydraulic Bollard?

The HB-426 is a hydraulic security bollard designed to control vehicle access at entrances and protected premises.

What is the protection rating of the HB-426?

The HB-426 bollard has an IP68 protection rating. Its compatible HBC-600 control unit has an IP54 protection rating.

What is the standard height of the HB-426 bollard?

The standard column height is 600 mm. Customizable heights of 800 mm to 1000 mm are also listed.

What is the maximum passing pressure of the HB-426?

The published maximum passing pressure is 50 tonnes. Site and installation requirements should be confirmed before selection.

Does the HB-426 support emergency operation?

Yes. Manual raising and lowering are listed as emergency options. Battery-powered raising and lowering are available as an optional configuration.

How many bollards can the HBC-600 control unit manage?

The HBC-600 control unit supports configurations for two, four or six bollards, depending on the selected setup.

How can I enquire about the HB-426 Hydraulic Bollard?

Contact CDN TECHNOLOGIES through the enquiry page or WhatsApp button on this page for product details and availability.
