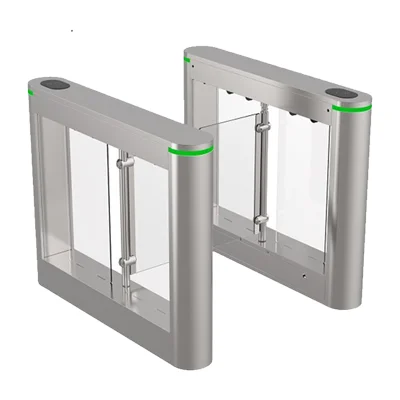

SB-ES-3012 Single Lane Swing Barrier
The SB-ES-3012 Single Lane Swing Barrier is designed to help regulate pedestrian movement through controlled entry and exit points. Its brushed motor, four pairs of infrared sensors and compact design support orderly access management in commercial and institutional environments.
Constructed from SUS 304 stainless steel with a transparent acrylic arm, the SB-ES-3012 features a 600 mm passage width and a 0.2-second operating time. It is designed for facilities requiring controlled pedestrian access and reliable day-to-day operation.
SB-ES-3012 Swing Barrier Features
Explore the construction, sensor system and operating performance of the SB-ES-3012 pedestrian barrier.
SUS 304 Stainless Steel Body
The cabinet uses 1.0 mm SUS 304 stainless steel, with a 1.2 mm SUS 304 top cover.
Transparent Acrylic Arm
The swing barrier uses a 10 mm transparent acrylic arm, helping maintain an open and modern entrance appearance.
Fast 0.2-Second Operation
The published operating time is 0.2 seconds, supporting responsive movement at controlled pedestrian entrances.
Four Pairs of Infrared Sensors
The integrated four pairs of infrared sensors support pedestrian detection as part of the access barrier system.
Compact Single-Lane Design
With dimensions of 1200 × 185 × 980 mm and a 600 mm passage width, the unit is designed for a defined pedestrian lane.
Long-Cycle Performance
The manufacturer lists a mean number of cycles between failures (MCBF) of 5,000,000 cycles.
SB-ES-3012 Technical Specifications
Review the product dimensions, materials, electrical requirements and operating conditions.
| Product Model | SB-ES-3012 |
|---|---|
| Product Type | Single Lane Swing Barrier |
| Product Size (L × W × H) | 1200 × 185 × 980 mm |
| Pass Width | 600 mm |
| Net Weight | 65 kg |
| Body Material | 1.0 mm SUS 304 stainless steel |
| Body Thickness | 1.0 mm |
| Top Cover Material | 1.2 mm SUS 304 stainless steel |
| Arm Material | 10 mm transparent acrylic |
| Driver | Brushed motor |
| Infrared Sensors | 4 pairs |
| Operating Time | 0.2 seconds |
| Pass Rate | 20–35 persons per minute |
| Power Supply | 100–240V AC |
| Operational Voltage | 24V DC |
| Maximum Power Consumption | 35W |
| Frequency | 50–60 Hz |
| Working Temperature | -25°C to +70°C |
| MCBF | 5,000,000 cycles |
Frequently Asked Questions
Find answers to common questions about the SB-ES-3012 Single Lane Swing Barrier.
What is the SB-ES-3012 Swing Barrier?
The SB-ES-3012 is a single-lane swing barrier designed to help control pedestrian entry and exit through a defined access passage.
What is the passage width of the SB-ES-3012?
The manufacturer's published passage width is 600 mm.
What material is used to manufacture the barrier?
The body is made from 1.0 mm SUS 304 stainless steel. The top cover uses 1.2 mm SUS 304 stainless steel, and the arm is made from 10 mm transparent acrylic.
How quickly does the SB-ES-3012 operate?
The manufacturer lists an operating time of 0.2 seconds. Actual pedestrian throughput also depends on operating conditions and how people pass through the lane.
How many infrared sensors are included?
The SB-ES-3012 specifications list four pairs of infrared sensors.
What is the pass rate of the SB-ES-3012?
The listed pass rate is 20–35 persons per minute. Actual throughput can vary according to pedestrian behaviour and installation configuration.
What are the power and temperature requirements?
The specified power supply is 100–240V AC, the operational voltage is 24V DC, and maximum power consumption is 35W. The published operating temperature range is -25°C to +70°C.
How can I enquire about the SB-ES-3012?
Contact CDN Technologies through the website enquiry page or WhatsApp to ask about pricing, availability and suitability for your access control requirements.
Get in Touch for Product Enquiry
Have questions about the SB-ES-3012 Single Lane Swing Barrier? Contact CDN Technologies for pricing, availability and help with your pedestrian access control requirements.
