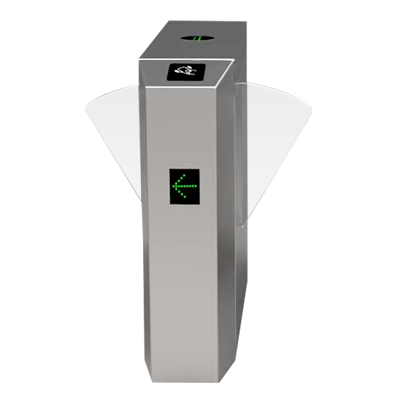

FB-E-2200 Flap Barrier
The FB-E-2200 is a retracting flap barrier designed to regulate pedestrian entry and exit at controlled access points. Its SUS304 stainless-steel cabinet and lid, together with transparent acrylic barriers, create a practical solution for entrance-control applications.
The system supports RFID, fingerprint, face and vein authentication options, with a listed lane width of 550 mm and an unlock time of 0.2 seconds. LED indicators, dry-contact input and emergency mode support integration with compatible access-control systems.
FB-E-2200 Key Features
Retracting flap technology and access-control integration to help manage pedestrian movement at secured entrances.
SUS304 Stainless-Steel Body
The cabinet and lid use SUS304 stainless steel to provide a sturdy housing for pedestrian access-control installations.
Retracting Acrylic Barriers
Transparent acrylic flaps retract to allow authorised pedestrians through the lane when access is approved.
Multiple Authentication Options
Supports RFID, fingerprint, face and vein recognition options, depending on the connected reader and access-control configuration.
550 mm Lane Width
The listed lane width is 550 mm, helping define the pedestrian passage space when planning the entrance layout.
0.2-Second Unlock Time
The listed unlock time is 0.2 seconds, supporting responsive access after a valid authorisation signal.
Emergency Mode
Emergency mode is listed as a product function. Confirm the required emergency input and safety arrangements for your installation.
FB-E-2200 Technical Specifications
Check the listed dimensions, operating conditions, access throughput and construction details.
| Product Model | FB-E-2200 |
|---|---|
| Product Type | Retracting Flap Barrier |
| Power Requirements | 100–240 V AC |
| Lane Width | 550 mm |
| Dimensions | 1200 × 280 × 980 mm (L × W × H) |
| Working Temperature | -28°C to +60°C |
| Working Humidity | 5%–80% |
| Working Environment | Indoor or outdoor when sheltered |
| RFID Throughput | Maximum 35 persons per minute |
| Fingerprint Throughput | Maximum 25 persons per minute |
| Face Recognition Throughput | Maximum 11 persons per minute |
| Vein Recognition Throughput | Maximum 23 persons per minute |
| IP Rating | IP44 |
| Input | Dry Contact |
| Unlock Time | 0.2 seconds |
| Net Weight — Single Machine | 52 kg |
| Net Weight — Double Machine | 87 kg |
| Cabinet Material | SUS304 Stainless Steel |
| Lid Material | SUS304 Stainless Steel |
| Barrier Material | Transparent acrylic with red, green and blue lighting |
| Barrier Movement | Retracting |
| LED Indicator | Yes |
| Emergency Mode | Yes |
| Security Level | Medium |
| MCBF | 3 million cycles |
Frequently Asked Questions
Common questions about the FB-E-2200 flap barrier.
1. What is the FB-E-2200 flap barrier?
The FB-E-2200 is a retracting flap barrier designed to regulate pedestrian entry and exit at controlled access points.
2. What material is used in this model?
The manufacturer lists SUS304 stainless steel for the cabinet and lid, with transparent acrylic flaps featuring red, green and blue lighting.
3. What is the lane width of the FB-E-2200?
The listed lane width is 550 mm. Confirm the complete lane layout and installation requirements before selecting the barrier arrangement.
4. What is the maximum pedestrian throughput?
The listed maximums are 35 persons per minute for RFID, 25 for fingerprint, 11 for face recognition and 23 for vein recognition. Actual performance depends on the connected equipment and operating conditions.
5. Is the FB-E-2200 suitable for outdoor use?
The listed working environment is indoor or outdoor when sheltered. Its IP44 rating means it should not be assumed to be fully weatherproof.
6. What is the unlock time?
The manufacturer lists an unlock time of 0.2 seconds. Total entry time can vary with authentication response and pedestrian movement.
7. Does the FB-E-2200 support emergency mode?
Yes. Emergency mode is listed in the specifications. Confirm the required emergency signal and installation safety arrangements with the installer.
8. How can I enquire about the FB-E-2200?
Contact CDN TECHNOLOGIES through the Enquire Now button for pricing, availability and integration details. You can also use WhatsApp Enquiry to send a product-specific message about this model.
