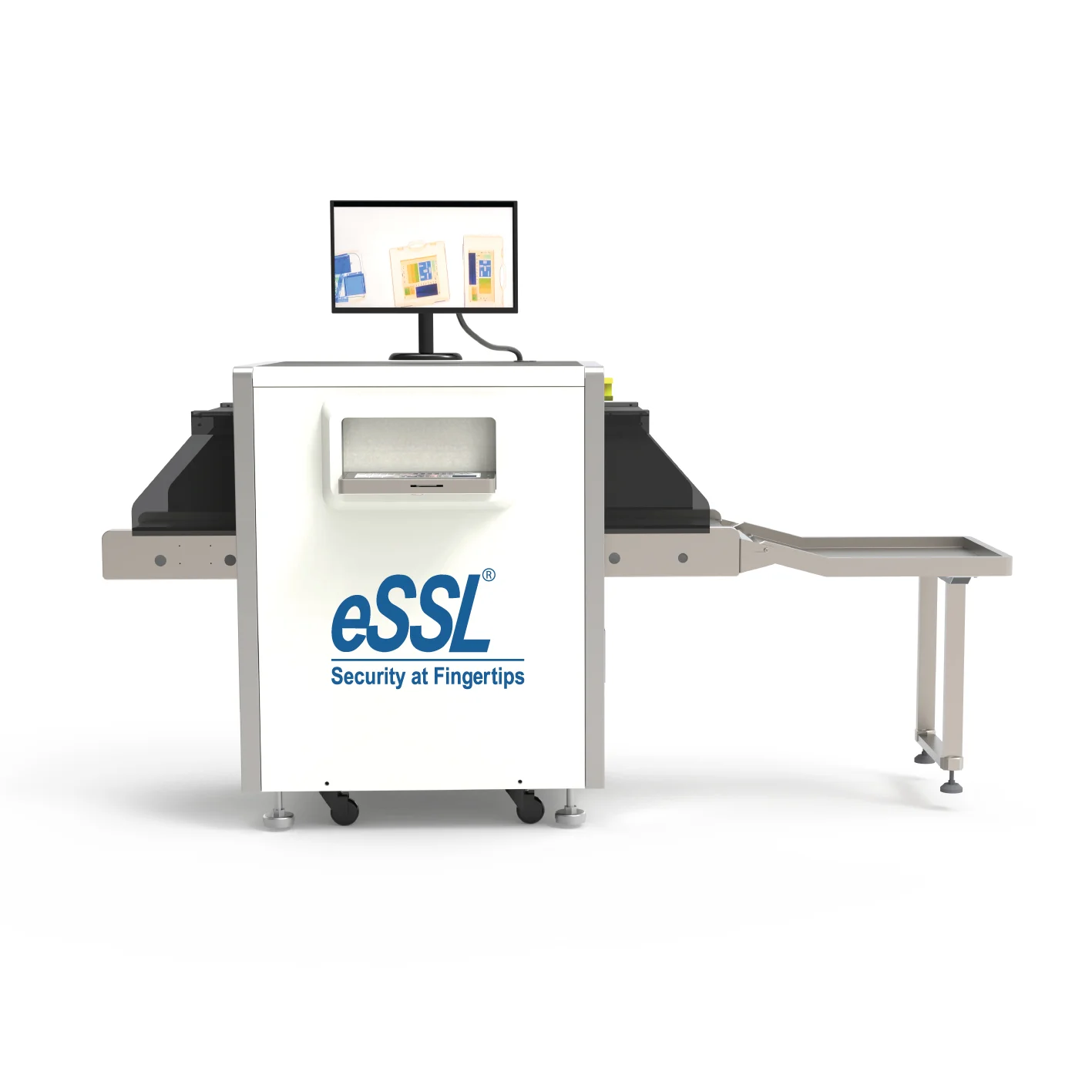

eBS-5030A Single Energy X-Ray Baggage Scanner
The eBS-5030A is a single-energy X-ray baggage scanner designed to inspect the contents of bags and parcels without opening them. It produces X-ray images for a trained operator to examine and assess potential security concerns.
With a 500 × 300 mm tunnel, an L-shaped array detector, a 19-inch colour LCD monitor and image-enhancement tools, the system supports baggage screening at controlled entrances and security checkpoints.
eBS-5030A Key Features
X-ray image processing, high-penetration inspection and image storage features for baggage screening.
Single-Energy X-Ray Imaging
Uses single-energy X-ray imaging to help trained operators examine the contents of baggage without opening each bag or parcel.
19-Inch Colour LCD Monitor
Includes a 19-inch colour LCD monitor for viewing X-ray images and reviewing baggage contents during the screening process.
Image Enhancement Tools
Offers image processing options such as edge enhancement, brightness adjustment, negative image, colour management and high- or low-penetration views.
Image Storage
The manufacturer lists storage for up to 100,000 images in real time, with customised storage configurations available as specified.
500 × 300 mm Tunnel
Provides a tunnel opening of 500 mm wide by 300 mm high for screening baggage that fits within the specified inspection opening.
Operator and Network Functions
Includes display of date, time, baggage count and user ID, along with LAN connectivity and a key-operated shutdown control.
eBS-5030A Technical Specifications
Review the listed tunnel dimensions, conveyor performance, X-ray generator details and operating conditions.
| Product Model | eBS-5030A |
|---|---|
| Product Type | Single Energy X-Ray Baggage Scanner |
| Tunnel Size | 500 mm (W) × 300 mm (H) |
| Conveyor Speed | 0.22 m/s |
| Maximum Conveyor Load | 150 kg |
| X-Ray Generator | 80 kV, adjustable anode voltage |
| Tube Current | 0.4–0.7 mA adjustable; product description also lists 0.6 mA |
| X-Ray Divergence Angle | 60° |
| X-Ray Detector | L-shaped photodiode array detector, 24-bit depth |
| Wire Resolution | 40 AWG (0.0787 mm metal line, as listed) |
| Steel Penetration | 10 mm |
| Single Inspection Dose | Less than 1.32 μGy (as listed) |
| Leakage Radiation | Less than 0.06 μGy/h (as listed) |
| Film Safety | For ISO 1600 film, as stated by the manufacturer |
| Image Storage | Up to 100,000 images; customisable as listed |
| Display | 19-inch colour LCD monitor |
| Operating System | Windows-based operating system |
| Image Processing | Colour / black and white, negative image, high / low penetration, organic / inorganic views, edge enhancement and brightness adjustment |
| Image Review | Zoom in / out, return to 1× size and image replay |
| Orientation | Upward X-ray generator orientation |
| Generator Cooling | Sealed oil bath with forced air; 100% duty cycle as listed |
| System Power | 220 V AC ±10%, 50 Hz ±3 Hz |
| Maximum Power Consumption | 1.0 kW |
| Noise Level | Less than 65 dB |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 20%–95%, non-condensing |
| Network Interface | LAN connectivity and multi-terminal baggage image checking support, as listed |
| Inspection Direction | Bidirectional in / out option, configurable as specified |
| Product Weight | 410 kg |
| Package Dimensions | 1810 × 910 × 1450 mm (as listed) |
| Included Accessories | 19-inch LCD monitor, foldable keyboard, baggage collection tray and tool kit |
| Shutdown Control | Key-operated shutdown control |
| Self-Diagnosis | Automatic fault notification, as listed |
Safety note: X-ray baggage scanners must be installed, operated and maintained according to the manufacturer's documentation and applicable radiation-safety requirements. Radiation figures shown here are copied from the product listing; confirm compliance documentation and site requirements before purchase or installation.
Frequently Asked Questions
Common questions about the eBS-5030A single-energy X-ray baggage scanner.
1. What is the eBS-5030A baggage scanner?
The eBS-5030A is a single-energy X-ray baggage scanner that produces images of baggage contents for inspection by a trained operator without opening the bag.
2. What is the tunnel size of this model?
The listed tunnel opening is 500 mm wide and 300 mm high. Baggage must fit within the tunnel opening and stay within the specified conveyor load limit.
3. What is the maximum conveyor load?
The manufacturer lists a maximum conveyor load of 150 kg. Baggage must be distributed and handled in accordance with the product manual.
4. What image-enhancement features are available?
Listed tools include colour management, negative image, organic and inorganic views, high- and low-penetration modes, edge enhancement, brightness adjustment, zoom and image replay.
5. Can the scanner store inspection images?
Yes. The manufacturer lists storage for up to 100,000 images in real time, with customised storage options available as specified.
6. Does the scanner support network connectivity?
The product listing includes a LAN interface and support for multi-terminal baggage image checking. Confirm the network setup and software requirements for the intended installation.
7. What are the operating conditions?
The listed operating temperature is 0°C to 45°C, with relative humidity of 20%–95%, non-condensing. Confirm site environmental conditions before installation.
