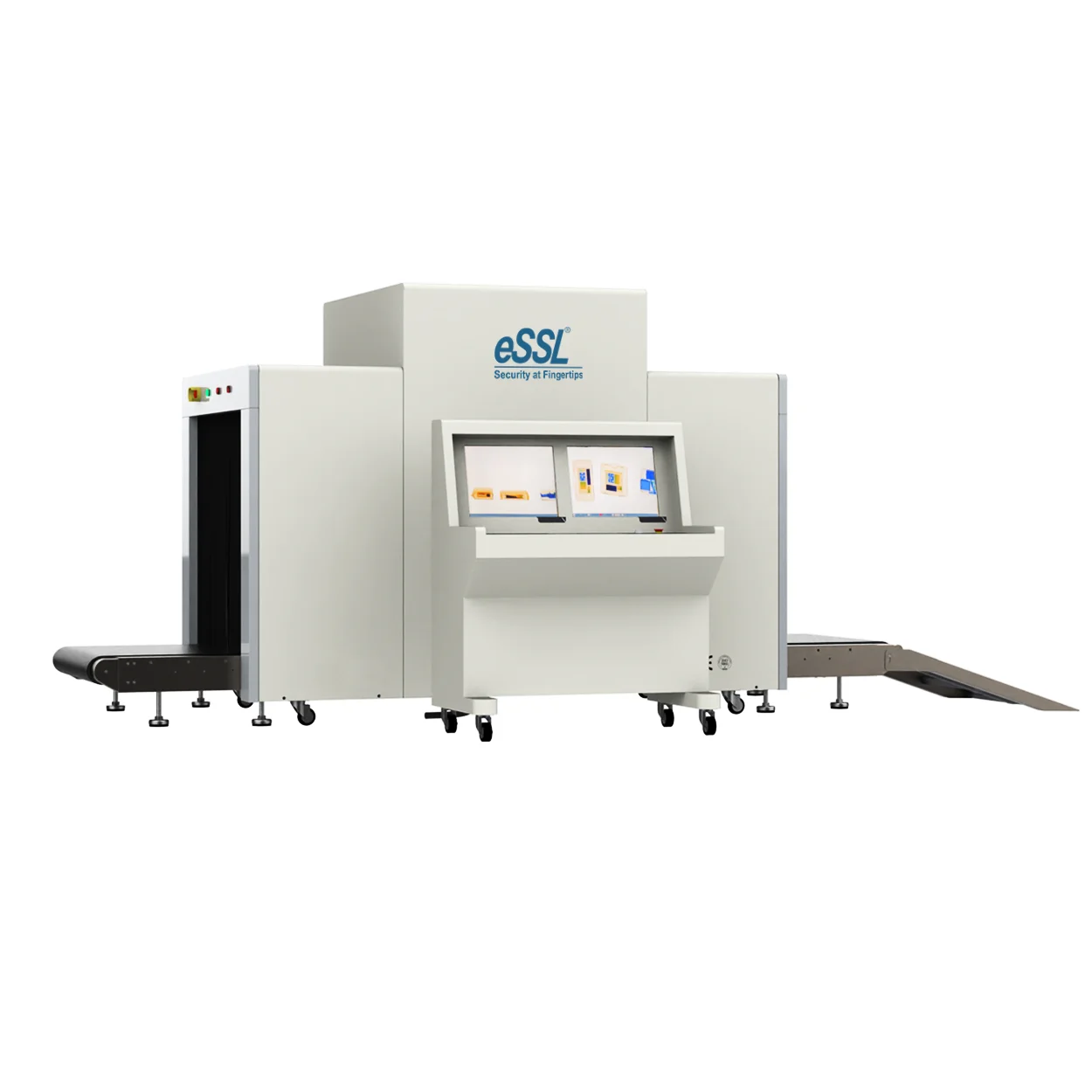

eBS100100C Large Tunnel X-Ray Baggage Scanner
The eBS100100C is a single-energy X-ray baggage scanner designed for inspecting large baggage, parcels and consignments without opening them. Its 1000 × 1000 mm tunnel and heavy-duty conveyor help accommodate larger items at controlled security checkpoints.
Featuring an L-shaped 24-bit array detector, dual 19-inch LCD monitors, image-enhancement tools and real-time image storage, the system helps trained operators examine X-ray images and review potential security concerns.
eBS100100C Key Features
Large-format baggage inspection with image-processing, networking and operator-control features.
1000 × 1000 mm Tunnel
The large tunnel opening accommodates baggage and parcels that fit within the specified 1000 mm width and 1000 mm height.
300 kg Conveyor Load
The conveyor is rated for a maximum load of 300 kg, helping support the handling of heavy items within the machine's operating specifications.
Dual 19-Inch LCD Monitors
Two high-resolution 19-inch LCD monitors enable operators to view X-ray images during baggage screening.
Advanced Image Processing
Listed functions include pseudo-colour and black-and-white imaging, high- and low-penetration views, edge enhancement, brightness adjustment and zoom.
100,000-Image Storage
Supports real-time storage of up to 100,000 images according to the manufacturer, helping operators review stored inspection images.
LAN Network Connectivity
The network interface supports LAN connectivity and multi-terminal baggage-image checking, subject to the configured system and software.
eBS100100C Technical Specifications
Review the tunnel size, conveyor capacity, imaging system and operating requirements before selection.
| Product Model | eBS100100C |
|---|---|
| Product Type | Single-Energy X-Ray Baggage Scanner |
| Tunnel Size | 1000 mm (W) × 1000 mm (H) |
| Conveyor Speed | 0.22 m/s |
| Maximum Conveyor Load | 300 kg |
| Wire Resolution | 38 AWG |
| Steel Penetration | 38 mm |
| Film Safety | For ISO 1600 film, as listed by the manufacturer |
| Single Inspection Dose | Listed as less than 1.6 Gy; verify the unit in the manufacturer documentation before relying on this value |
| Leakage Radiation | Listed as less than 3.0 Gy/h; verify the unit and applicable radiation-safety documentation with the manufacturer |
| X-Ray Generator Orientation | Downward |
| Anode Voltage | 150–200 kV |
| Tube Current | 1.0–1.5 mA, adjustable |
| X-Ray Divergence Angle | 80° |
| X-Ray Detector | L-shaped array detector, 24-bit |
| Display | 2 × 19-inch high-resolution LCD monitors |
| Colour Depth | 24-bit real colour based on materials, as listed |
| Grey Levels | 4096 grey levels, as listed |
| Image Storage | Up to 100,000 images in real time; customisable as listed |
| Zoom | Up to 64× magnification, as listed |
| Image Processing | Pseudo colour, black-and-white, high- and low-penetration display, edge enhancement and brightness adjustment |
| Image Review | Previous-image review, replay, zoom in/out and image restoration |
| Generator Cooling | Sealed oil bath with forced air |
| Generator Duty Cycle | 100%, as listed by the manufacturer |
| System Power | 220 V AC (+10%), 50 Hz (+3 Hz), as listed |
| Maximum Power Consumption | 1.0 kW |
| Noise Level | Less than 58 dB |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 20%–95%, non-condensing |
| Network Interface | LAN connectivity and multi-terminal image checking support |
| Safety Functions | Automatic X-ray control, key-operated shutdown and self-diagnosis |
| Product Weight | Confirm final equipment weight with the manufacturer before installation planning |
Important technical note: The official product listing shows radiation-dose and leakage figures with units that should be verified before technical or compliance use. Ask for the current datasheet and applicable radiation-safety documentation before installation. Operate X-ray equipment only in accordance with manufacturer instructions and applicable safety requirements.
Frequently Asked Questions
Common questions about the eBS100100C large-tunnel X-ray baggage scanner.
1. What is the eBS100100C baggage scanner?
The eBS100100C is a single-energy X-ray baggage scanner designed to inspect large bags, parcels and consignments without opening them.
2. What is the tunnel size of this model?
The listed tunnel size is 1000 mm wide by 1000 mm high. Items must fit through this opening and comply with the conveyor's rated load.
3. What is its maximum conveyor load?
The manufacturer lists a maximum conveyor load of 300 kg. Follow the manufacturer's instructions when loading and moving baggage or consignments.
4. What image-enhancement features are included?
Listed tools include pseudo-colour and black-and-white images, high- and low-penetration views, edge enhancement, brightness adjustment, image replay and up to 64× zoom.
5. Can the scanner store and review images?
The manufacturer lists real-time storage of up to 100,000 images, along with image review, replay and magnification functions. Storage configuration should be confirmed for the intended installation.
6. Does the eBS100100C support network connectivity?
Yes. The product listing describes LAN connectivity and support for multi-terminal baggage-image checking. Network setup and software requirements should be confirmed for the project.
7. What are the operating conditions?
The listed operating temperature is 0°C to 45°C, with relative humidity of 20%–95%, non-condensing. Confirm actual site conditions and required clearances before installation.
