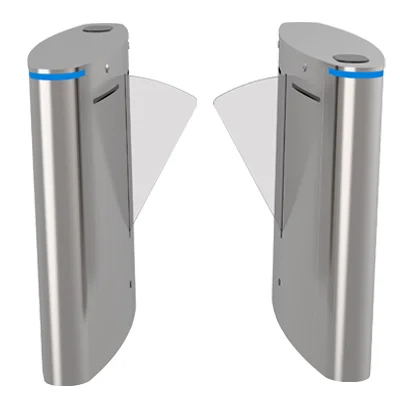

FB-E-1000 Single Lane Flap Barrier
The FB-E-1000 is a single-lane flap barrier designed to manage pedestrian entry and exit at controlled access points. Its 2.0 mm SUS304 stainless-steel construction and compact design make it suitable for organised entrance-control systems.
With a listed passage width of 550 mm, a throughput of up to 35 persons per minute and three pairs of sensors, the FB-E-1000 supports controlled pedestrian movement. It also features automatic reset, infrared anti-clip protection and power-off opening for emergency passage.
FB-E-1000 Key Features
Reliable pedestrian access control with safety functions designed to support smooth movement at entry points.
SUS304 Stainless-Steel Body
Built with 2.0 mm SUS304 stainless steel, offering a robust housing for daily pedestrian access-control operation.
550 mm Passage Width
Provides a listed passage width of 550 mm for controlled single-lane pedestrian movement through the access point.
Three Pairs of Sensors
Three sensor pairs help monitor passage through the barrier and support its detection and safety functions.
Anti-Tailgating and Anti-Reverse
Includes anti-tail and anti-reverse passage functions to help enforce access rules and reduce unauthorised movement through the lane.
Infrared Anti-Clip Protection
Infrared anti-clip protection is designed to help reduce the risk of the flaps closing on a person during gate movement.
Emergency Power-Off Opening
The barrier is listed with an automatic opening function under power-off conditions to support emergency passage requirements.
FB-E-1000 Technical Specifications
Review the listed dimensions, power requirements, passage capacity and access-control functions.
| Product Model | FB-E-1000 |
|---|---|
| Product Type | Single Lane Flap Barrier |
| Material | 2.0 mm SUS304 Stainless Steel |
| Dimensions | 1200 × 280 × 980 mm |
| Sensor Pairs | 3 pairs |
| Pass Rate | Up to 35 persons per minute (as listed) |
| Pass Width | 550 mm |
| Input Voltage | 100–240 V AC |
| Motor Type | DC Brushless Motor |
| Power Supply | 24 V, 150 W (as listed by the manufacturer) |
| Net Weight | 45 kg |
| Operating Temperature | -20°C to +70°C |
| IP Rating | IP56 (as listed by the manufacturer) |
| MCBF | 5 million cycles (as listed by the manufacturer) |
| Emergency Power-Off Function | Automatic gate opening under power-off conditions |
| Anti-Tail Function | Supported |
| Anti-Reverse Passage | Supported |
| Automatic Reset | Returns to locked state when access is not completed within the configured time |
| Infrared Anti-Clip Function | Supported when the gate is open or moving |
| Card Memory Modes | Memory and no-memory options |
| Access Modes | Open or closed operating modes |
| Direction Control | One-way or two-way card-reading modes |
| Access-Control Compatibility | IC card, ID card, scanning and face-recognition systems |
Frequently Asked Questions
Common questions about the FB-E-1000 single-lane flap barrier.
1. What is the FB-E-1000 flap barrier?
The FB-E-1000 is a single-lane flap barrier designed to control pedestrian entry and exit at secured access points.
2. What material is used in the FB-E-1000?
The manufacturer lists a 2.0 mm SUS304 stainless-steel body for the FB-E-1000.
3. What is the passage width of this model?
The listed passage width is 550 mm. Check the intended installation and pedestrian access requirements before selecting the barrier.
4. How many people can pass through per minute?
The manufacturer lists a pass rate of up to 35 persons per minute. Actual throughput depends on the access configuration, user behaviour and connected verification system.
5. Does the FB-E-1000 have safety sensors?
Yes. The specification lists three pairs of sensors and an infrared anti-clip function designed to help reduce the risk of the flaps closing on a person.
6. What happens if the power supply fails?
The manufacturer lists an automatic opening function under power-off conditions to support emergency passage. Confirm the installation's emergency requirements before deployment.
7. Which access-control systems can be used with it?
The product listing identifies compatibility with IC cards, ID cards, scanning and face-recognition systems. The required reader and controller setup should be confirmed for the project.
