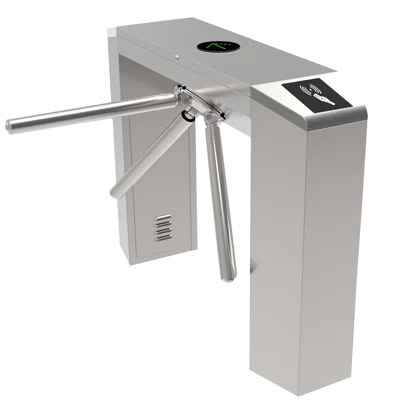

ET-2000 Bridge Type Bidirectional Tripod Turnstile
The ET-2000 is a heavy-duty tripod turnstile designed to regulate pedestrian entry and exit at controlled access points. Its SUS304 stainless-steel housing, electromagnetic drive and bridge-type design support access management in commercial and institutional settings.
With a 550 mm passage width, throughput of up to 35 persons per minute and support for compatible RFID and fingerprint readers, it can be integrated into access control and attendance systems.
Key Features of the ET-2000 Tripod Turnstile
Explore the construction, pedestrian-flow control, access integration and operating features of the ET-2000.
Bridge-Type Tripod Design
Uses a tripod-bar mechanism to regulate pedestrian movement through a controlled entry or exit point.
One-Way or Bidirectional Operation
Supports one-way and bidirectional operation to suit different entrance layouts and pedestrian-flow requirements.
550 mm Passage Width
The official product specifications list a passage width of 550 mm for pedestrian access through the turnstile.
SUS304 Stainless-Steel Housing
The integrated turnstile housing is specified as SUS304 stainless steel for a durable access control installation.
35 Persons per Minute
The official listing specifies throughput of up to 35 persons per minute, depending on the installation and operating conditions.
RFID and Fingerprint Integration
Supports integration with compatible RFID and fingerprint readers, along with an inBio-260 controller in the listed configuration.
ET-2000 Technical Specifications
Review the official listed dimensions, electrical characteristics and integrated controller features.
| Product Model | ET-2000 |
| Product Type | Bridge Type Bidirectional Tripod Turnstile |
| Passage Width | 550 mm |
| Throughput Rate | 35 persons per minute |
| Dimensions (L × W × H) | 1200 × 280 × 980 mm, excluding bar |
| Net Weight | 52 kg, including bar |
| Housing Material | SUS304 stainless steel |
| Power Supply | 100–240V AC |
| Operational Voltage | 24V |
| Maximum Power Consumption | 30W |
| Power Frequency | 50–60 Hz |
| Maximum Arm Tolerance | 80 kg |
| Angle per Rotation | 120° |
| Operation Type | One-way / Bidirectional |
| Input Control Signal | Dry contact |
| Electromagnetic Drive | DC |
| Protection Level | IP44 |
| Working Temperature | -25°C to +70°C |
| Opening Duration | 5–60 seconds |
| MCBF | 5 million cycles |
| Primary Controller CPU | 32-bit microprocessor |
| Opening Signal Input | Supported |
| Emergency Switch Input | Supported |
| Direction Indicator Output | Supported |
| Passing Indicator Output | Supported |
| Drop-Arm Electromagnet Output | Supported |
| Primary Operating Mode | Semi-automatic |
| Integrated Controller | inBio-260, as listed in the secondary-controller configuration |
| RFID User Capacity | 30,000 users |
| Fingerprint Capacity | 3,000 fingerprints |
| Transaction Storage | 100,000 records |
| Lock Relay | 12V relay |
| Fire Alarm Support | Supported, as listed |
| Reader Support | RFID and fingerprint readers |
| Reader Protocol | RS485; MIFARE/Proximity options, as listed |
ET-2000 Frequently Asked Questions
Find answers to common questions about the ET-2000 bridge-type tripod turnstile.
What is the ET-2000 tripod turnstile?
The ET-2000 is a bridge-type tripod turnstile designed to regulate pedestrian entry and exit at controlled access points in commercial, industrial and institutional environments.
What is the passage width of the ET-2000?
The current official product listing specifies a passage width of 550 mm.
How many people can pass through the ET-2000 per minute?
The manufacturer lists a throughput rate of 35 persons per minute. Actual throughput depends on pedestrian flow and installation conditions.
Does the ET-2000 support bidirectional passage?
Yes. The listed operation type supports one-way and bidirectional passage, depending on the installation configuration.
Which material is used in the ET-2000 housing?
The manufacturer's current listing specifies SUS304 stainless steel for the housing.
Can the ET-2000 work with RFID and fingerprint readers?
Yes. The listed configuration supports RFID and fingerprint readers, with RS485 and optional MIFARE/Proximity reader protocols. Confirm the desired reader and controller configuration before ordering.
Is the ET-2000 suitable for outdoor installation?
The current official listing specifies IP44 protection. Because weather protection is limited, verify installation requirements with the supplier before using it outdoors.
How can I enquire about the ET-2000 from CDN Technologies?
Contact CDN Technologies through the website contact page or use the WhatsApp Enquiry button below to ask about pricing, availability, reader configuration and installation needs.
Get in Touch for Product Enquiry
Have questions about the ET-2000 Bridge Type Tripod Turnstile? Contact CDN Technologies for pricing, availability and help with your pedestrian access control requirements.
