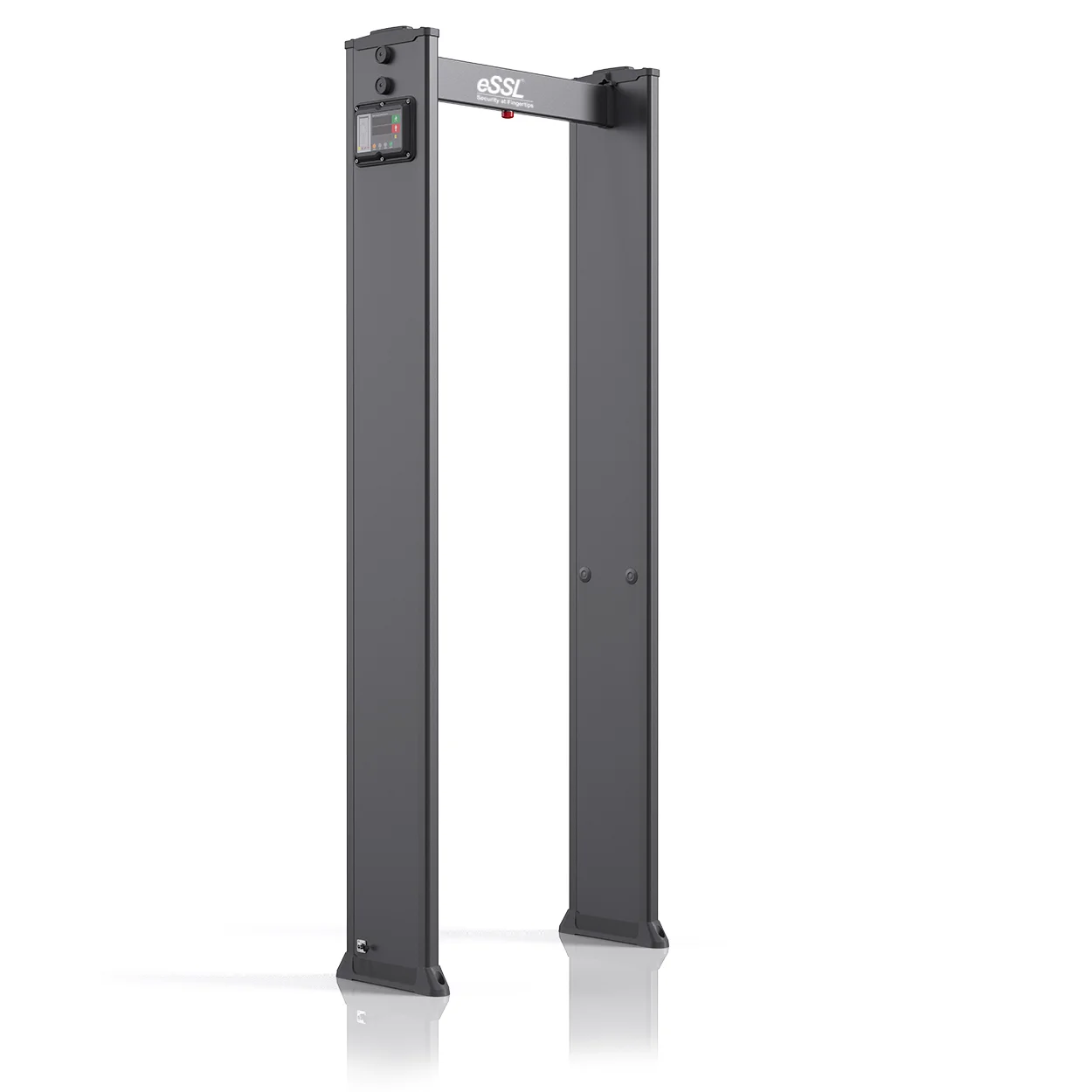

D270-1-IP54 Single Zone Walk Through Metal Detector
The D270-1-IP54 is a single-zone walk-through metal detector designed to help identify prohibited metal items at controlled entry points. Its ergonomic structure and side-mounted controller support practical installation and operation.
The detector features an LED indicator that glows from top to bottom within its single detection zone, adjustable sensitivity, configurable alarm tones and infrared sensors for passage and alarm counting.
D270-1-IP54 Key Features
Single-zone detection and practical alarm features for controlled entry screening.
Single-Zone Detection
Uses a single detection zone to screen people passing through the unit and help identify potential metal items across the scanning area.
LED Detection Indication
The high-brightness LED display provides a visual indication from top to bottom within the single detection zone when metal is detected.
Adjustable Sensitivity
Offers a listed sensitivity adjustment range of 0–400, allowing the setting to be configured according to the screening environment.
Digital Display
The bright digital display makes detection indications easier for staff to monitor while operating the screening checkpoint.
Infrared Counting Sensors
Infrared sensors support passage-count and alarm-count functions, helping security staff keep track of activity through the detector.
Configurable Alarm
Provides adjustable alarm volume, alarm duration and 15 listed alarm tones to help configure audible alerts for the installation.
D270-1-IP54 Technical Specifications
Review the available product specifications for installation planning and product selection.
| Product Model | D270-1-IP54 |
|---|---|
| Product Type | Single Zone Walk Through Metal Detector |
| Working Principle | Electromagnetic |
| Detection Zones | Single zone |
| Power Input | AC 100–240 V, 50–60 Hz |
| Material | ABS (Acrylonitrile Butadiene Styrene) |
| Listed Frequency Range | 0–100 (unit not specified in the listing) |
| External Dimensions | 2165 × 828 × 349 mm |
| Passage Dimensions | 2017 × 720 × 349 mm |
| Net Weight | 21 kg |
| Gross Weight | 27 kg |
| Working Temperature | -20°C to +65°C |
| Working Humidity | Up to 99%, non-condensing |
| Product Colour | Matte Black |
| IP Rating | IP54, dust-proof coating as stated in the product listing |
| Sensitivity Adjustment | 0–400 |
| Volume Adjustment | 0–50 |
| Alarm Duration Adjustment | 0–3 seconds |
| Alarm Tones | 15 different tones |
| Detection Specification | Ferrous metals below 75 g, as stated in the manufacturer listing |
| Detection Indication | LED indication from top to bottom within the single zone |
| Counting Sensors | Infrared sensors for passage count and alarm count |
| Installation | Two side doors (left and right), crossbeam and wire probe |
| Controller | Side-mounted DFMD controller |
Frequently Asked Questions
Common questions about the D270-1-IP54 single-zone walk-through metal detector.
1. What is the D270-1-IP54 metal detector?
The D270-1-IP54 is a single-zone walk-through metal detector designed to help identify prohibited metal items as people pass through a controlled entry point.
2. How many detection zones does it have?
This model uses a single detection zone. It is different from the D270-9-IP54, which is listed as a 9-zone model.
3. How does the LED detection indication work?
The product listing describes an LED indication that glows from top to bottom within the single zone when metal is detected, helping staff observe the detection alert.
4. Can the sensitivity be adjusted?
Yes. The listed sensitivity range is 0–400. The correct setting depends on the items being screened and the requirements of the installation.
5. Does the detector count people passing through?
The manufacturer lists infrared sensors for passage count and alarm count. These functions help monitor passage activity and alarms at the screening point.
6. What does the IP54 rating mean?
The product listing describes IP54 with a dust-proof coating. Do not assume that the rating makes the unit waterproof or suitable for all outdoor environments. Confirm the installation conditions before purchase.
7. Where can the D270-1-IP54 be installed?
It may be used at controlled entry points in places such as offices, institutions, factories and other facilities that require metal screening. The installation should suit the site's security procedures and environment.
8. How can I enquire about this product?
Use the Enquire Now button to contact CDN TECHNOLOGIES about pricing and availability, or select WhatsApp Enquiry to send a message specifically about the D270-1-IP54 model.
