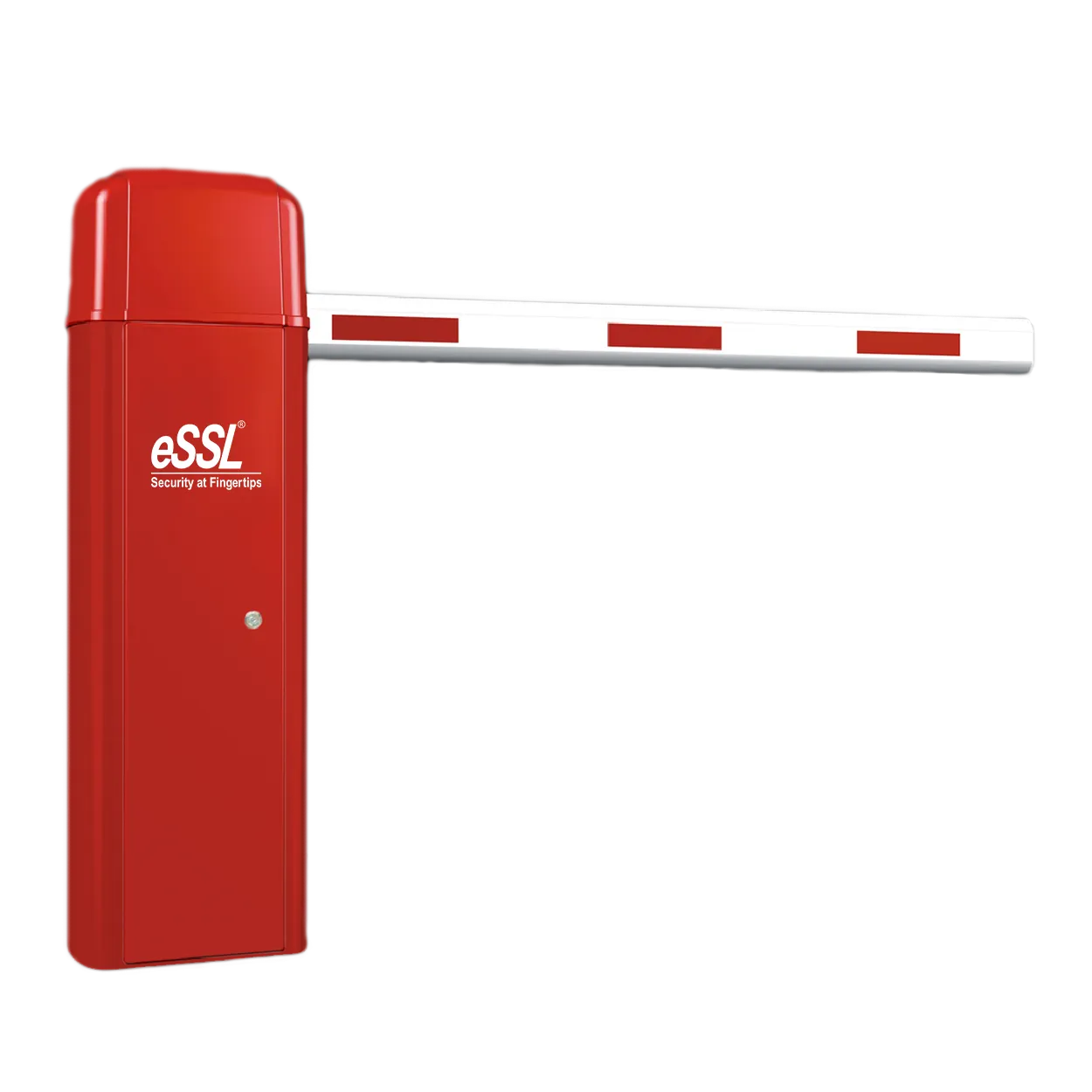

BG-108 Automatic Boom Barrier with 8-Metre Aluminium Arm
The eSSL BG-108 is an automatic boom barrier designed to control vehicle entry and exit at parking facilities, commercial buildings, industrial premises, residential communities and other controlled-access locations. It features an aluminium boom arm with a maximum listed length of 8 metres.
The manufacturer lists an opening and closing time of approximately 8 seconds, automatic and manual operating modes, and remote control up to 25 metres. It supports dry-contact control signals and connections for compatible photocells, air switches and optional loop detectors.
Key Features of the BG-108 Automatic Boom Barrier
Long-arm vehicle control, remote operation, adjustable auto-close timing and sensor integration for managed vehicle entrances and exits.
8-Metre Aluminium Boom
Supports a maximum boom length of 8 metres, with an aluminium arm and boom rest stand.
8-Second Operation
The listed opening and closing time is approximately 8 seconds for the specified boom configuration.
Adjustable Auto-Close
Supports an adjustable automatic closing time from 1 to 80 seconds.
Vehicle Detection Inputs
Supports photocells, air switches and optional loop detectors for compatible vehicle detection systems.
Automatic and Manual Modes
Supports automatic and manual operation with integrated STOP, UP and DOWN control buttons.
IP54 Protection
The IP54-rated enclosure is designed to provide protection against dust ingress and water splashes.
BG-108 Technical Specifications
Review the boom arm, motor power, control interfaces, remote range and environmental specifications.
| Product Model | BG-108 |
|---|---|
| Product Type | Automatic Boom Barrier |
| Maximum Boom Length | 8 metres |
| Boom Rest Stand | Yes |
| Boom Arm Material | Aluminium |
| Opening / Closing Time | 8 seconds |
| Input Control Signal | Dry Contact |
| Ingress Protection | IP54 |
| Input Interfaces | Photocell, Air Switch and Optional Loop Detector |
| Output / Optional Interfaces | Access Control Panel, Standalone Access Control and Control Button |
| Remote Control Range | Up to 25 metres |
| Operating Mode | Automatic / Manual |
| Control Panel | STOP, UP and DOWN Push Buttons |
| Bumping Bounce-Back | Listed in the product catalogue |
| Auto-Close Time | Adjustable from 1 to 80 seconds |
| Power Supply | SMPS Input: AC 220V / 110V, 50Hz / 60Hz |
| Motor Power | 90W, 220V AC |
| Dimensions (L × W × H) | 268 × 348 × 1050 mm |
| Operating Temperature | -20°C to +50°C |
Note: Specifications are based on the official eSSL BG-108 listing and catalogue. Details may change between product revisions. Confirm the correct boom configuration, power requirements and safety options before ordering.
Frequently Asked Questions
Common questions about the BG-108 Automatic Boom Barrier.
What is the BG-108 Boom Barrier?
The BG-108 is an automatic boom barrier designed to regulate vehicle entry and exit at parking facilities, commercial complexes, industrial premises and other access-controlled locations.
What is the maximum boom length?
The manufacturer's official listing specifies a maximum boom length of 8 metres.
How long does the BG-108 take to open or close?
The listed opening and closing time is approximately 8 seconds.
What is the remote control range?
The official product listing specifies a remote control range of up to 25 metres.
Does the BG-108 support automatic closing?
Yes. Its automatic closing interval can be adjusted between 1 and 80 seconds.
Which vehicle detection sensors can be connected?
The product listing includes inputs for photocells, air switches and optional loop detectors.
Can the BG-108 operate manually?
Yes. It supports automatic and manual modes and includes STOP, UP and DOWN buttons on the control panel.
How can I enquire about the BG-108 price?
Contact CDN Technologies for pricing, availability, boom arm configuration and guidance on compatibility with your vehicle access control requirements.
