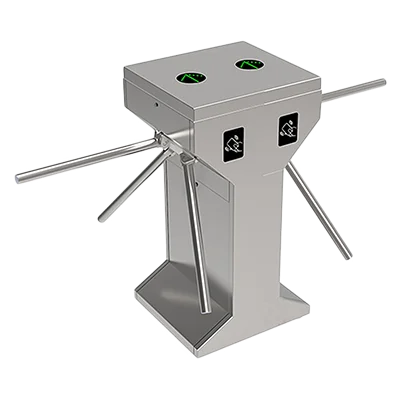

ET-1200 Heavy Duty Tripod Turnstile
The ET-1200 is a heavy-duty tripod turnstile designed to regulate pedestrian entry and exit at controlled access points. Its stainless-steel housing and electromagnetic drive support controlled passage through entrances.
With a 520 mm passage width and a listed throughput of 35 persons per minute, it can be integrated with compatible RFID and fingerprint access control systems for entry management and attendance.
Key Features of the ET-1200 Tripod Turnstile
Explore the construction, pedestrian access, operation and integration features of the ET-1200.
Heavy-Duty Tripod Design
Uses a tripod-bar mechanism to regulate pedestrian movement through a controlled entry or exit point.
Single or Bi-Directional Passage
Supports single-directional and bi-directional configurations, depending on the chosen installation and operation mode.
520 mm Passage Width
The current official product listing specifies a passage width of 520 mm to accommodate controlled pedestrian flow.
SS304 Stainless-Steel Housing
The ET-1200 housing is specified as SS304 stainless steel for a sturdy turnstile installation.
35 Persons per Minute
The listed throughput is 35 persons per minute. Actual passage rates depend on pedestrian flow and access configuration.
RFID and Fingerprint Integration
Supports compatible RFID and fingerprint readers through the listed controller configuration, enabling integration with access and attendance systems.
ET-1200 Technical Specifications
Review the official online listing for dimensions, electrical requirements and controller capacity.
| Product Model | ET-1200 |
| Product Type | Heavy Duty Tripod Turnstile |
| Passage Width | 520 mm |
| Throughput Rate | 35 persons per minute |
| Dimensions (L × W × H) | 480 × 560 × 960 mm, excluding bar |
| Net Weight | 60 kg, including bar |
| Housing Material | SS304 stainless steel |
| Drive Type | DC electromagnetic drive |
| Power Supply | 100–240V AC |
| Operational Voltage | 24V |
| Maximum Power Consumption | 30W |
| Power Frequency | 50–60 Hz |
| Protection Level | IP44, according to the current online listing |
| Working Temperature | -25°C to +70°C |
| Passage Modes | Single-directional / Bi-directional |
| Operating Modes | Semi-automatic mode and pure mechanical mode, as listed |
| Barrier Reset | Automatic reset after passage, as listed |
| Controller | inBio-260, in listed controller configuration |
| RFID User Capacity | 30,000 users |
| Fingerprint Capacity | 3,000 fingerprints |
| Transaction Storage | 100,000 records |
| Lock Relay | 12V relay |
| Fire Alarm Support | Supported, as listed |
| Reader Support | RFID and fingerprint |
| Reader Protocol | RS485; MIFARE/Proximity options, as listed |
ET-1200 Frequently Asked Questions
Find answers to common questions about the ET-1200 Heavy Duty Tripod Turnstile.
What is the ET-1200 tripod turnstile?
The ET-1200 is a heavy-duty tripod turnstile designed to regulate pedestrian access at entrances in commercial, industrial and institutional environments.
What is the passage width of the ET-1200?
The current online product listing specifies a passage width of 520 mm.
What is the throughput rate of the ET-1200?
The official online listing specifies 35 persons per minute. Actual throughput depends on pedestrian flow and operating conditions.
Does the ET-1200 support one-way and bidirectional passage?
Yes. Single-directional and bidirectional configurations are listed for the ET-1200, depending on the mechanical or electrical setup selected.
Which material is used in the ET-1200 housing?
The current product listing specifies SS304 stainless steel for the housing.
Can RFID and fingerprint readers be integrated?
Yes. The listed controller configuration supports RFID and fingerprint readers. Confirm the required reader model and interface before ordering.
Is the ET-1200 suitable for outdoor installation?
The current online listing specifies IP44 protection. Check the manufacturer's installation guidance and provide suitable weather protection where needed before using the turnstile outdoors.
