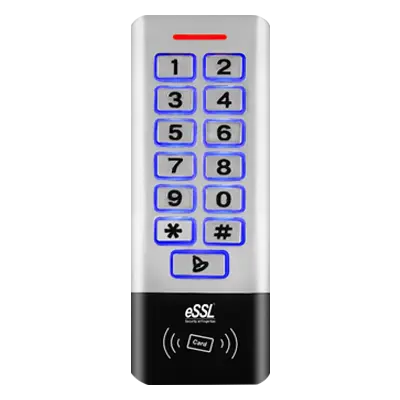

JS-34 Standalone RFID Access Control Device
The JS-34 is a standalone RFID access control device designed to manage door entry using proximity cards, PIN codes or a combination of card and PIN authentication.
With capacity for up to 2,000 cards or codes, an illuminated keypad, metal anti-vandal housing and IP66 protection, it is suitable for compatible indoor and outdoor access control installations.
Key Features of the JS-34 Access Control Device
Explore the main card and PIN access functions, weather protection and door control features of the JS-34.
2,000 Card/Code Capacity
Supports up to 2,000 cards or codes according to the official product specifications, helping manage access for multiple users.
EM/MF Proximity Cards
Supports EM/MF card types as listed by the manufacturer. Confirm the specific card technology required for your installation.
Three Access Modes
Choose card-only, PIN-only or combined card-plus-PIN authentication to suit different door access policies.
Backlit Keypad
The illuminated keypad supports PIN entry and operation in low-light environments.
IP66 Weather Protection
The manufacturer lists IP66 protection for demanding environments where resistance to dust and water jets is required.
Metal Anti-Vandal Housing
Features a metal anti-vandal enclosure and Wiegand 26 input/output for compatible access control configurations.
JS-34 Technical Specifications
Review the listed electrical, environmental, card-reading and access control specifications.
| Product Model | JS-34 |
| Product Type | Standalone RFID Access Control Reader/Controller |
| User Capacity | 2,000 cards/codes |
| Access Methods | Card, PIN, Card + PIN |
| Card Type | EM/MF, as listed |
| Ingress Protection | IP66 |
| Working Voltage | DC 12V ±10% |
| Standby/Static Current | Less than 30 mA |
| Electric Lock Output | Less than 3 A |
| Reading Range | 5–8 cm |
| Door Opening Time | 0–99 seconds, adjustable |
| Operating Temperature | -45°C to +60°C |
| Operating Humidity | 10%–90% RH |
| Wiegand Interface | WG26 input/output |
| Keypad | Backlit keypad |
| Housing | Metal anti-vandal case |
| Short-Circuit Protection | Supported, as listed by the manufacturer |
JS-34 Frequently Asked Questions
Find answers to common questions about the JS-34 standalone RFID access control device.
What is the JS-34 access control device?
The JS-34 is a standalone RFID access control reader/controller that supports card and PIN authentication for compatible door locks.
How many users can the JS-34 support?
The official product listing specifies capacity for 2,000 cards or codes.
Which access modes are available?
The listed modes are card-only, PIN-only and combined card-plus-PIN authentication.
Which RFID card types does the JS-34 support?
The product listing specifies EM/MF cards. Confirm the exact card technology and frequency with your supplier before ordering.
Can the JS-34 be used outdoors?
Yes. The product listing specifies an IP66 rating for outdoor use. Correct mounting and installation remain important.
Can the door-opening time be adjusted?
Yes. The listed door-opening time is adjustable from 0 to 99 seconds.
Does the JS-34 support Wiegand?
Yes. The official listing specifies Wiegand 26 input/output for compatible access control configurations.
How can I enquire about the JS-34 from CDN Technologies?
Contact CDN Technologies through the website contact page or use the WhatsApp Enquiry button below to ask about pricing, availability and installation requirements.
Get in Touch for Product Enquiry
Have questions about the JS-34 Standalone RFID Access Control Device? Contact CDN Technologies for pricing, availability and help with your door access requirements.
