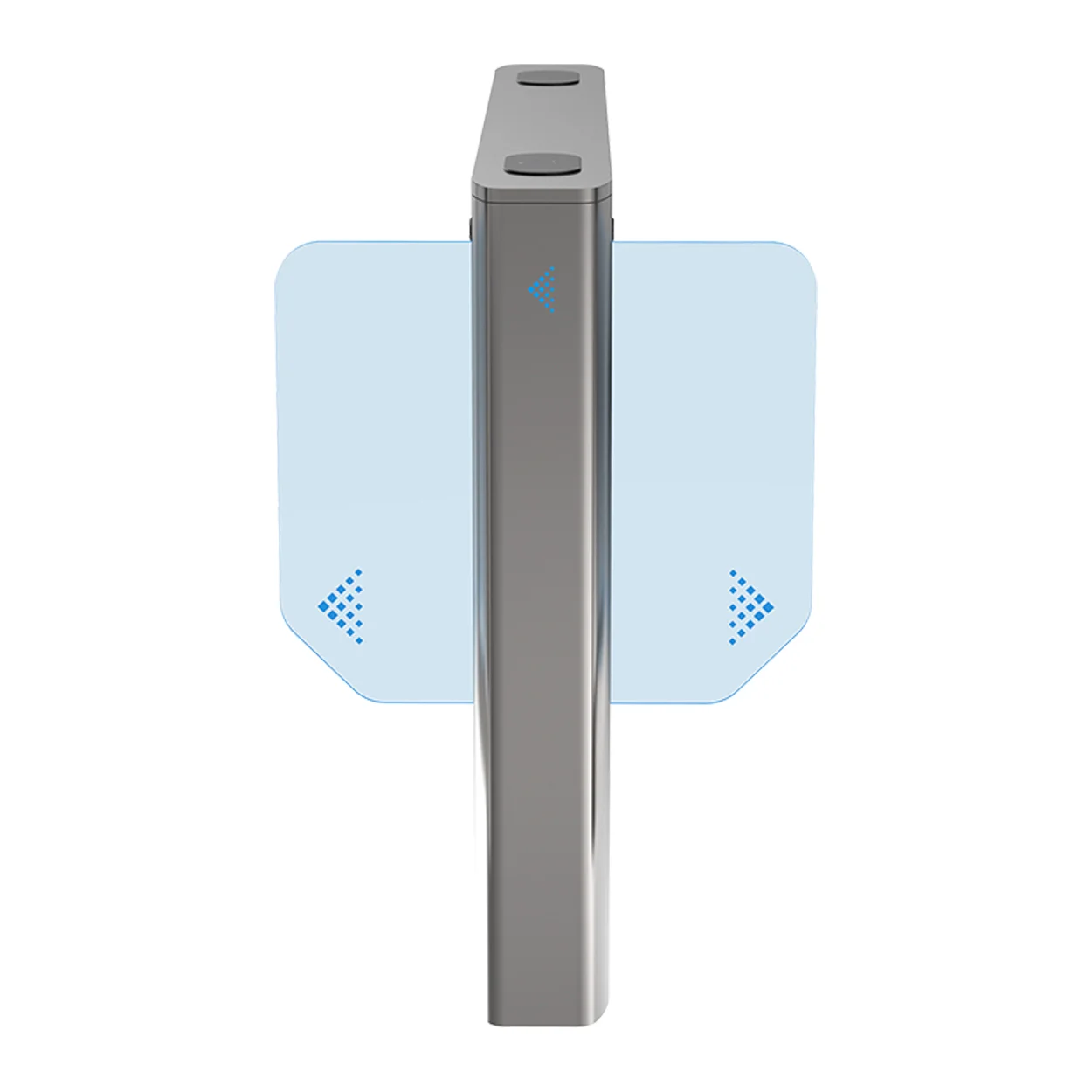

SB-ES-3216-2 Multi Lane Swing Barrier
The SB-ES-3216-2 Multi Lane Swing Barrier is designed to help organize pedestrian entry and exit through multiple controlled lanes. Its brushless swing-brake mechanism, infrared sensors and automatic reset functionality help support smooth and orderly passage in busy access-controlled environments.
Featuring a 304-grade brushed stainless steel body, clear acrylic barrier panels and a passage width of 600–900 mm, the SB-ES-3216-2 supports integration with compatible access control systems, including card-based and face-recognition solutions.
SB-ES-3216-2 Swing Barrier Features
Explore the key design, access control, safety and operating features of this multi-lane swing barrier system.
304 Stainless Steel Construction
The barrier body uses 304-grade brushed stainless steel, with a 1.2 mm top cover and 0.9 mm body thickness.
Clear Acrylic Barrier Panels
The product uses an 8 mm clear acrylic diaphragm and a 10 mm clear acrylic baffle.
Brushless Swing-Brake Movement
The integrated brushless mechanism is designed for smooth barrier movement, with opening and closing speeds adjustable from 0.5 to 1.5 seconds.
Infrared Sensor Protection
Six pairs of sensors support pedestrian detection and help reduce risks associated with clipping, tailgating and reverse passage.
Emergency Opening Function
The manufacturer lists automatic gate opening during power failure to support emergency passage, subject to the installation configuration.
Flexible Access Control
Supports compatible IC cards, ID cards, scanning and face-recognition systems, with one-way or two-way card-reading operating modes.
SB-ES-3216-2 Technical Specifications
Review the official listed dimensions, materials, power requirements and performance specifications.
| Product Model | SB-ES-3216-2 |
|---|---|
| Product Type | Multi Lane Swing Barrier |
| Dimensions (L × W × H) | 1400 × 160 × 980 mm |
| Passage Width | 600–900 mm |
| Fuselage Material | 304 brushed stainless steel; 1.2 mm top cover and 0.9 mm body |
| Diaphragm Material | 8 mm clear acrylic |
| Baffle Material | 10 mm clear acrylic |
| Movement Type | Brushless swing-brake integrated movement |
| Drive Motor | Fengdun DC brushless 90K, 30W |
| Power Supply | 24V, 150W |
| Input Voltage | AC 100–240V, 50/60Hz |
| Equipment Power | 55W |
| Pass Rate in Open Mode | Up to 50 persons per minute, as listed by the manufacturer |
| Pass Rate in Normally Closed Mode | 35 persons per minute, as listed by the manufacturer |
| Opening/Closing Speed | Adjustable from 0.5 to 1.5 seconds |
| Sensor Pairs | 6 pairs |
| Pilot Lamp | Three-colour light panel and three-colour light strip |
| Communication Mode | Dry contact |
| Control System | 12V brushless control board, electric control box and mesh board box |
| Operating Temperature | -20°C to +70°C |
| Noise Level | ≤65 dB |
| Operating Humidity | ≤90%, non-condensing |
| Protection Class | IP4X |
| Identification Compatibility | IC cards, ID cards, scanning and face recognition with compatible connected systems |
| Card Memory Settings | Memory and non-memory modes |
| Automatic Reset | Returns to the locked state if passage does not occur within the configured time |
| Emergency Function | Automatic opening under power-failure conditions, as specified by the manufacturer |
| Operating Modes | Open or closed modes; one-way or two-way card-reading configurations |
| Additional Access Features | Anti-tailgating, anti-reverse passage, infrared anti-clipping and automatic reset |
Frequently Asked Questions
Common questions about the SB-ES-3216-2 Multi Lane Swing Barrier and its operating features.
What is the SB-ES-3216-2 Multi Lane Swing Barrier?
The SB-ES-3216-2 is a multi-lane swing barrier model designed to help control pedestrian movement at secured entrances and exits using compatible access control systems.
What is the passage width of the SB-ES-3216-2?
The manufacturer lists a passage width of 600–900 mm. Confirm the required lane configuration before ordering.
Which materials are used in this swing barrier?
The body is made from 304-grade brushed stainless steel, with a 1.2 mm top cover and 0.9 mm body. The diaphragm uses 8 mm clear acrylic, and the baffle uses 10 mm clear acrylic.
What is the throughput rate of the SB-ES-3216-2?
The published pass rate is up to 50 persons per minute in open mode and 35 persons per minute in normally closed mode. Actual throughput depends on the lane arrangement and use conditions.
Does this barrier support anti-tailgating and anti-reverse passage?
Yes. The manufacturer lists anti-tailgating, anti-reverse passage and infrared anti-clipping functions to assist controlled pedestrian access.
What happens if the power fails?
The manufacturer lists automatic opening during power failure for emergency passage. The final installation should still be checked against the site's emergency and fire-safety requirements.
Which identification systems can be connected?
The product lists compatibility with IC cards, ID cards, scanning and face recognition. The exact functions depend on the connected readers and access control system.
How can I enquire about the SB-ES-3216-2?
Contact CDN Technologies through the website enquiry page or WhatsApp to ask about pricing, availability and configuration for your pedestrian access control requirements.
