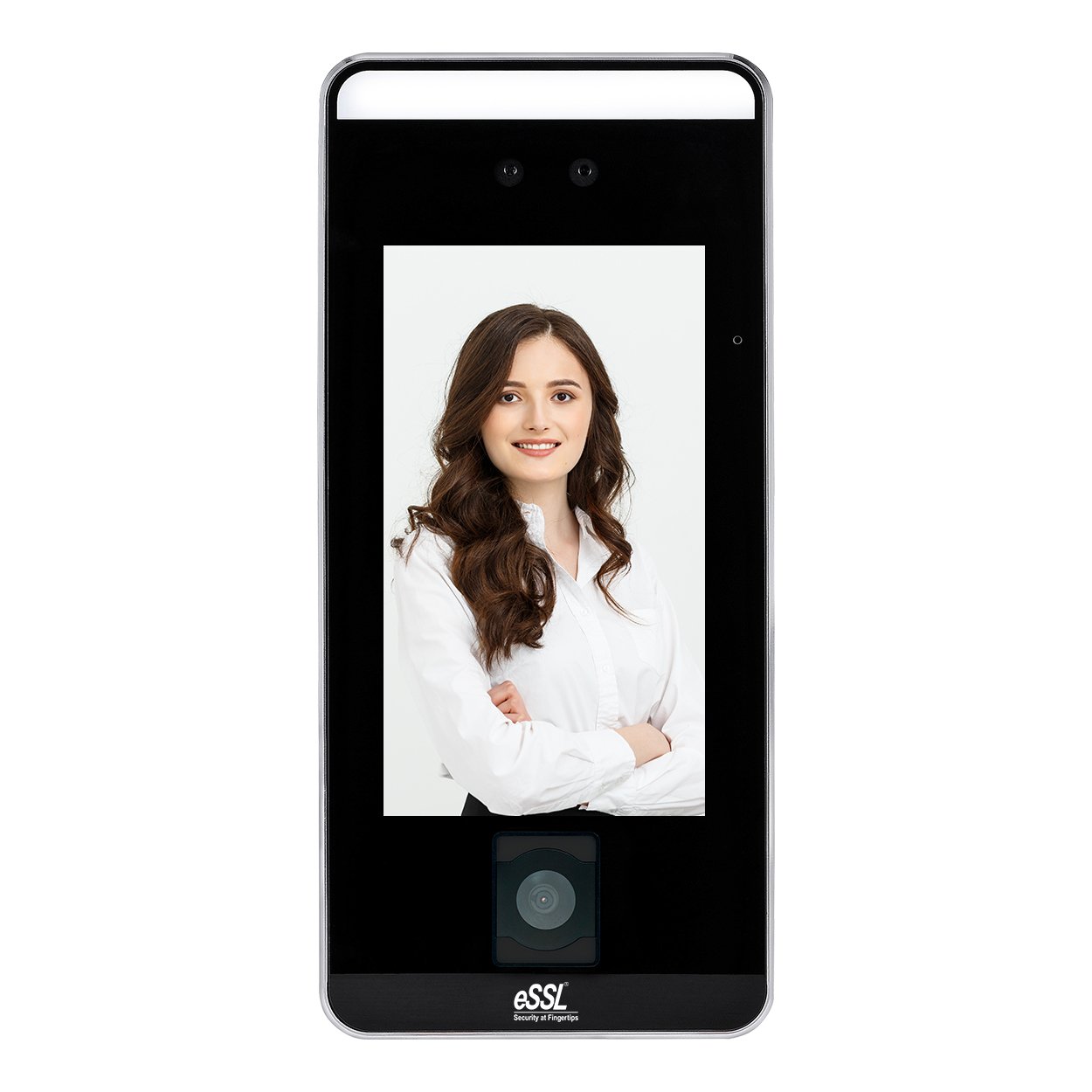

AiFace Mars+QR Facial Recognition Terminal
The AiFace Mars+QR is a facial recognition time attendance and access control terminal designed for face, QR code, card and password authentication. It features a 5-inch touchscreen, a 2MP WDR low-light camera and an integrated barcode scanning function.
With support for up to 6,000 face templates, 10,000 cards and 200,000 transaction records, the terminal is designed for organisations requiring flexible identity verification. Supported scanning formats include QR Code, PDF417, Data Matrix and MicroPDF417.
Key Features of AiFace Mars+QR Facial Recognition Terminal
Facial recognition and QR code authentication for compatible attendance and access control systems.
5-Inch Touch Screen
The integrated 5-inch touchscreen provides an interface for supported on-device operations.
QR Code Scanning
Supports QR Code, PDF417, Data Matrix and MicroPDF417 scanning formats.
2MP WDR Camera
Uses a 2MP WDR low-light camera for supported facial recognition workflows.
Multiple Verification Methods
Supports face, QR code, card and password authentication.
Large Storage Capacity
Supports up to 6,000 face templates, 10,000 cards and 200,000 transaction records.
Network Connectivity
Supports TCP/IP, Wiegand input/output and RS485. Wi-Fi is available as an optional feature.
AiFace Mars+QR Technical Specifications
Technical details for the AiFace Mars+QR facial recognition, QR code attendance and access control terminal.
| Specification | Details |
|---|---|
| Product Model | AiFace Mars+QR |
| Product Type | Facial Recognition, QR Code Time Attendance and Access Control Terminal |
| Display | 5-Inch Touch Screen |
| Face Template Capacity | 6,000 templates |
| Card Capacity | 10,000 cards |
| Transaction Capacity | 200,000 records |
| Operating System | Linux |
| Hardware | 900MHz Dual-Core CPU, 1GB RAM, 8GB Flash |
| Camera | 2MP WDR Low-Light Camera |
| Scanning Function | Integrated Barcode Scanning |
| Authentication Methods | Face, QR Code, Card and Password |
| QR Sensor Formats | QR Code, PDF417, Data Matrix and MicroPDF417 |
| Facial Recognition Speed | ≤ 1 second |
| Communication | TCP/IP, Wi-Fi (Optional), Wiegand Input/Output and RS485 |
| Optional Card Type | 13.56MHz IC Card (Mifare) |
| Access Control Interface | Electromagnetic Lock/Electric Lock, Door Sensor, Exit Button, Auxiliary Input and Alarm Output |
| Power Supply | DC 12V, 3A |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | -10°C to 45°C |
| Dimensions (W × H × D) | 91.93 × 202.93 × 21.5 mm |
| Supported Software | eTimeTrackLite and eBioServer |
Note: Specifications are based on the information supplied for this product page and may change by revision. Wi-Fi and 13.56MHz IC card support are optional. Confirm the supplied configuration, QR integration requirements and software compatibility before ordering.
Frequently Asked Questions
Common questions about the AiFace Mars+QR terminal.
What is the AiFace Mars+QR?
The AiFace Mars+QR is a facial recognition time attendance and access control terminal supporting face, QR code, card and password authentication.
How many face templates can it store?
The supplied specifications list a capacity of up to 6,000 face templates.
Which QR code formats does it support?
The listed QR sensor formats are QR Code, PDF417, Data Matrix and MicroPDF417.
Does the AiFace Mars+QR support fingerprint authentication?
Fingerprint authentication is not listed among the authentication methods supplied for this model. The listed methods are face, QR code, card and password.
How many cards and transactions can it store?
The supplied specifications list capacity for up to 10,000 cards and 200,000 transaction records.
What is the facial recognition speed?
The supplied specifications list facial recognition speed of one second or less.
Does the terminal support Wi-Fi?
Wi-Fi is listed as an optional communication feature. Confirm its availability in the supplied device configuration.
How can I enquire about the AiFace Mars+QR price?
Contact CDN Technologies for pricing, availability and guidance on the configuration required for your installation.
Get in Touch for Product Enquiry
Have questions about the AiFace Mars+QR? Contact CDN Technologies for pricing, availability and help with your attendance and access control requirements.
