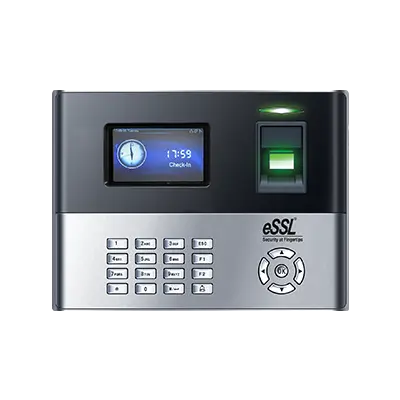

eSSL X990 Fingerprint Time Attendance & Access Control System
The eSSL X990 is a standalone fingerprint time attendance and access control terminal designed for employee attendance management and compatible door access applications. It combines biometric verification, proximity card support, network connectivity and access control interfaces for workplace use.
Contact CDN TECHNOLOGIES for pricing, availability, software compatibility and installation guidance.
About the eSSL X990 Fingerprint Device
The eSSL X990 is designed for organisations that need biometric attendance recording and access control in one terminal. Its fingerprint sensor, proximity card support and communication options can support employee time-recording workflows and compatible access control installations.
Fingerprint Recognition
The 500 DPI optical fingerprint sensor supports biometric identification, with a published identification speed of less than 0.5 seconds.
High Storage Capacity
Supports storage for up to 10,000 fingerprints, 10,000 cards and 100,000 transaction records according to published specifications.
Colour TFT Display
The 3-inch colour TFT display and keypad provide a local interface for device operation and user interaction.
Network Connectivity
TCP/IP and USB are listed as standard communication options. Wi-Fi and GPRS are available as optional configurations.
Door Access Control
Listed interfaces include Wiegand input/output, a lock relay, door sensor, doorbell and anti-passback functionality.
Attendance Software Support
Published compatibility includes eTimeTrackLite desktop and web software, SDK-based applications and compatible third-party Payroll, HRMS and ERP systems.
eSSL X990 Technical Specifications
Review the fingerprint capacity, card storage, communication, power requirements and access control interfaces of the X990.
Storage and Hardware
| Model | eSSL X990 |
|---|---|
| Device Type | Standalone Fingerprint Time Attendance and Access Control System |
| Fingerprint Capacity | 10,000 fingerprints |
| Card Capacity | 10,000 cards |
| Transaction Capacity | 100,000 records |
| Card Reader | Inbuilt proximity card reader; MIFARE and HID Prox options listed |
| CPU | 800 MHz 32-bit microprocessor |
| SDRAM | 128 MB NAND Flash / memory specification as published |
| Flash | 256 MB NAND Flash |
| Kernel | 2.6 |
Biometric and Display
| Fingerprint Sensor | 500 DPI optical sensor |
|---|---|
| FAR | Less than or equal to 0.0001% (published specification) |
| FRR | Less than or equal to 1% (published specification) |
| Identification Speed | Less than 0.5 seconds |
| Algorithm Version | 10 |
| Display | 3-inch colour TFT |
| Keypad | Yes |
| LED Indicator | Green / Red |
| Speaker | Mini speaker / scheduled bell support |
Communication and Environment
| Standard Communication | TCP/IP and USB |
|---|---|
| Optional Communication | Wi-Fi and GPRS, depending on configuration |
| Push Data | Yes; static IP and domain server support are listed |
| Power Supply | DC 12V, 1.5A |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 20% to 80% |
| Dimensions | 210 × 157 × 40 mm |
| Standard Features | Work code, SMS, DLST, self-service query and status switch |
Access Control
| Wiegand | Input and output, 26-bit or 34-bit, with or without site code |
|---|---|
| Lock Relay | 12V relay for compatible electromagnetic, bolt or strike locks |
| Door Sensor | Supported |
| Fire Alarm | Support listed in product specifications |
| Anti-Passback | Supported |
| Doorbell | Supported |
| Exit Readers | 101 HE, FR1200, push button, KR500, No-touch and KR503 listed |
| Optional Battery | Available as an optional configuration |
| External Accessories | Optional external speaker, bulb output and external printer support |
Specifications and optional features may vary by device version and configuration. Confirm the supplied model before ordering.
Where Can the eSSL X990 Be Used?
The X990 is suited to workplace attendance and compatible access control applications across different business sectors.
eSSL X990 FAQs
Common questions about the X990 biometric attendance system.
1. What is the eSSL X990?
The eSSL X990 is a standalone fingerprint time attendance and access control terminal for compatible workplace applications.
2. How many fingerprints can the X990 store?
The published specification lists storage for up to 10,000 fingerprints.
3. What is the transaction storage capacity?
The published transaction storage capacity is 100,000 records.
4. Does the X990 support card authentication?
Yes. The specifications list a 10,000-card capacity and an inbuilt proximity card reader. MIFARE and HID Prox options should be confirmed for the supplied configuration.
5. Which communication options are available?
TCP/IP and USB are listed as standard. Wi-Fi and GPRS are available as optional configurations.
6. Can the X990 connect to a door lock?
The published specifications list a 12V lock relay and access control interfaces. Confirm compatibility with the required lock and door hardware before installation.
7. Which software is compatible with the X990?
Published compatibility includes eTimeTrackLite desktop and web software, SDK-based applications and supported third-party Payroll, HRMS and ERP integrations. Confirm your software version.
8. How can I enquire about the X990 price?
Contact CDN TECHNOLOGIES using the WhatsApp enquiry button or the Contact Us page for current pricing and availability.
Looking for the eSSL X990 Fingerprint Device?
Contact CDN TECHNOLOGIES for pricing, product availability, software compatibility and assistance with your biometric attendance or access control requirements.
