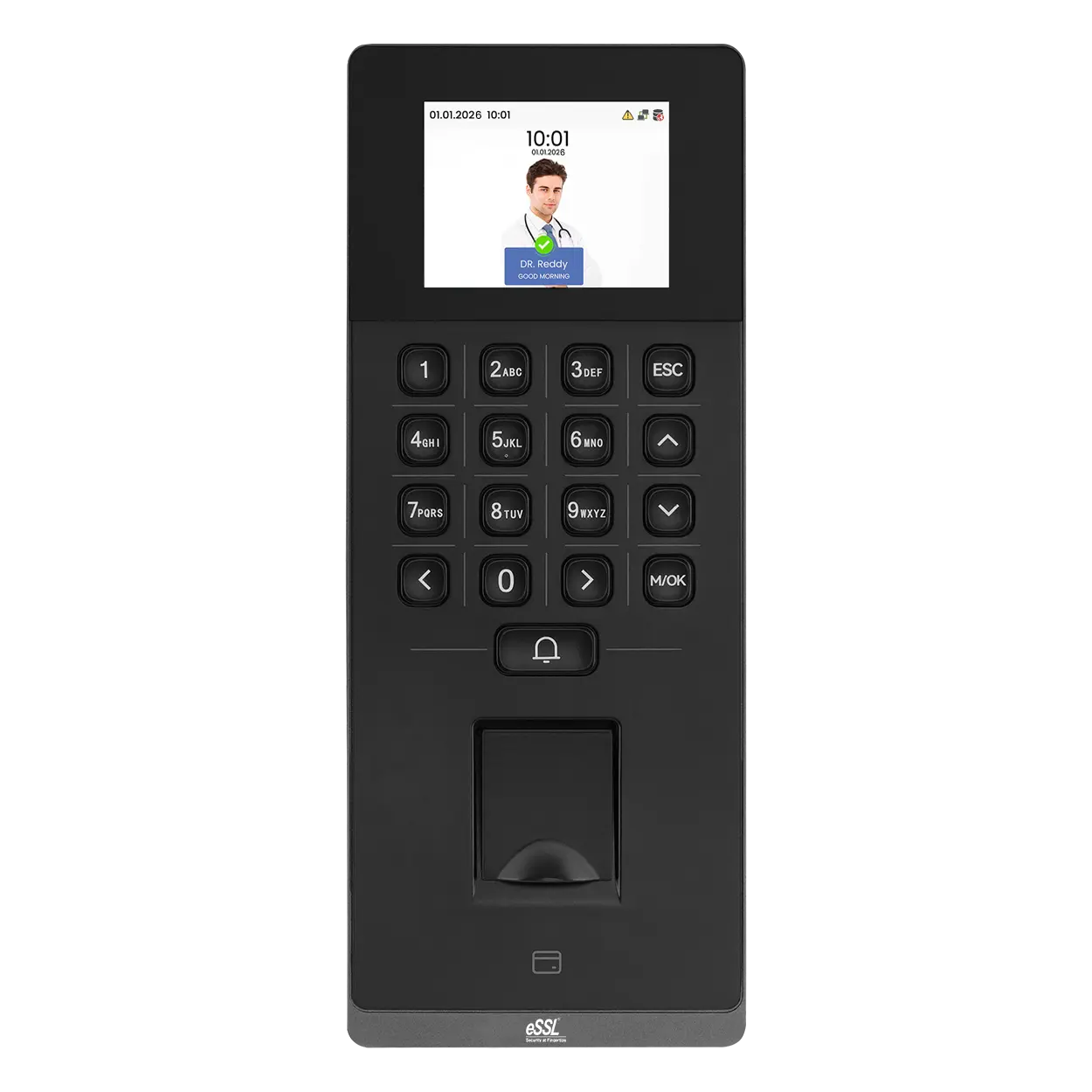

eSSL VEGA+W+POE Fingerprint Attendance Machine
Biometric Time Attendance & Access Control System
The eSSL VEGA+W+POE is a biometric attendance and access control device designed to help organizations manage employee attendance and secure entry points. It supports fingerprint, card and password authentication, with PoE connectivity for flexible installation.
Key Features of eSSL VEGA+W+POE
A combination of biometric verification, network connectivity and door access interfaces for workplace attendance and security.
Fingerprint, Card & Password
Supports multiple authentication methods to suit different employee verification and access requirements.
Power over Ethernet
PoE support can simplify installation by allowing compatible network equipment to supply power and data over Ethernet.
Large Log Storage
Stores up to 200,000 transaction records to support attendance tracking and record management.
Network Connectivity
Supports TCP/IP, Wi-Fi, USB, RS485 and Wiegand interfaces for supported integration requirements.
Access Control Interface
Supports compatible electric locks, door sensors, exit buttons and alarm output connections.
IP65 Protection
The IP65 rating provides protection against dust ingress and water jets under specified test conditions.
Biometric Attendance & Door Access in One Device
The VEGA+W+POE combines employee verification with access control functions. Organizations can use it to support attendance recording and manage entry through compatible door-lock systems.
Its compact design, colour display and multiple communication options make it suitable for a range of workplace installations. The best configuration depends on the site's network, attendance software and access-control requirements.
- Fingerprint, card and password verification
- Capacity for up to 3,000 fingerprints, cards and users
- Up to 200,000 transaction records
- TCP/IP and Wi-Fi connectivity
- PoE support and IP65 protection rating
Designed for Different Workplaces
The device can be considered for organizations that need attendance records and controlled entry at selected doors. Installation and configuration should be planned around the site's specific requirements.
- Corporate offices and business premises
- Factories and industrial workplaces
- Warehouses and logistics facilities
- Educational institutions
- Commercial buildings and restricted areas
- Staff-only rooms and controlled entry points
eSSL VEGA+W+POE Technical Specifications
Product specifications for reference. Confirm the required configuration before ordering.
| Specification | Details |
|---|---|
| Model | VEGA+W+POE |
| Display | 2.4-inch TFT colour LCD, 240 × 320 |
| Operating System | Linux |
| Processor | Dual Core, 1.0 GHz |
| RAM | 128 MB |
| ROM | 256 MB |
| Keypad | 17 physical keys |
| Authentication | Fingerprint / Card / Password |
| Fingerprint Capacity | 3,000 templates |
| Card Capacity | 3,000 cards |
| User Capacity | 3,000 users |
| Transaction Capacity | 200,000 records |
| Fingerprint Authentication Speed | Less than 0.5 seconds |
| False Acceptance Rate (FAR) | ≤ 0.0001% |
| False Rejection Rate (FRR) | ≤ 0.01% |
| Standard Card Type | 125 kHz proximity card |
| Optional Card Type | 13.56 MHz MIFARE card |
| Communication | TCP/IP, Wi-Fi, Wiegand input/output, RS485, USB |
| Access Control Interfaces | Electric lock, door sensor, exit button, alarm output |
| Power Supply | DC 12V 1.5A; PoE IEEE 802.3 |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Protection Rating | IP65 |
| Dimensions | 205.7 × 82.7 × 33 mm (L × W × H) |
Why Choose CDN Technologies?
Get in touch with CDN Technologies to discuss a suitable biometric attendance and access-control setup for your workplace.
Product Guidance
Discuss device features and check suitability for your requirements.
Configuration Support
Review network, power and door access requirements before installation.
Enquiry Assistance
Contact our team for pricing, availability and product-related enquiries.
Frequently Asked Questions
What is the eSSL VEGA+W+POE?
It is a fingerprint-based time attendance and access-control terminal that also supports card and password authentication.
How many fingerprints can it store?
The listed fingerprint template capacity is 3,000. The listed card and user capacities are also 3,000 each.
What does PoE mean on this device?
PoE stands for Power over Ethernet. With compatible equipment, a network Ethernet cable can carry both data and electrical power. Confirm the installation requirements before deployment.
Does the VEGA+W+POE support door access control?
Yes. Its listed access-control interfaces support compatible electric locks, door sensors, exit buttons and alarm output.
What communication options are available?
Listed communication options include TCP/IP, Wi-Fi, Wiegand input/output, RS485 and USB.
How can I get the price for this device?
Contact CDN Technologies through WhatsApp or the contact page to enquire about current pricing and availability.
Looking for eSSL VEGA+W+POE?
Contact CDN Technologies for product details, pricing and assistance with your attendance and access-control requirements.
Specifications may change by product revision. Please confirm details before purchase.
